Jenkins cheat sheet

Deployment strategies:

Delivery ( need approve from the "human" )
Deployment ( Continuous ) = Delivery (auto approve) + Automation + Event (time,commits,tag...)

links

jenkins build-in plugins documentation ('commands' like sh)
official book
official github
pipeline description
pipeline
user handbook
BlueOcean
pipeline examples
continuous delivery patterns
continuous delivery architecture
REST API

for all url just try to add: /api or /api/json?pretty=true
jenkins scheduler build periodically
- each minute: * * * * *

alternatives

Gitlab community :: Gitlab
TeamCity :: JetBrains
Team Fundation Server :: Microsoft
GoCD
buildbot

alternatives in cloud ( SaaS )

Bamboo
Circle CI
Travis CI
Gitlab

DSL

jenkins dsl source code
jenkins plugin documentation

installation on debian

wget -q -O - https://pkg.jenkins.io/debian/jenkins-ci.org.key | sudo apt-key add -
echo deb https://pkg.jenkins.io/debian-stable binary/ | sudo tee /etc/apt/sources.list.d/jenkins.list
sudo apt-get update
sudo apt-get install jenkins
sudo systemctl start jenkins
sudo systemctl status jenkins

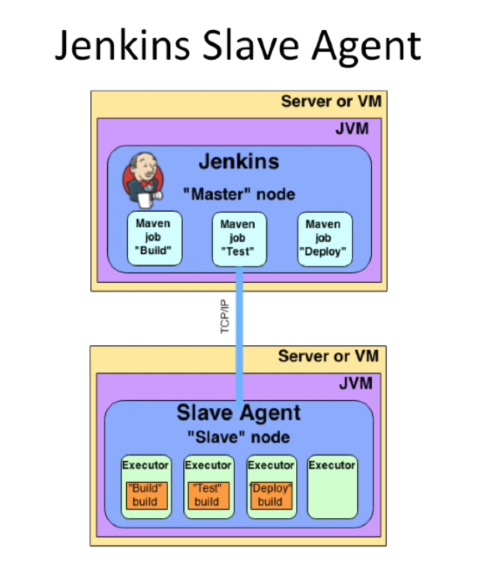

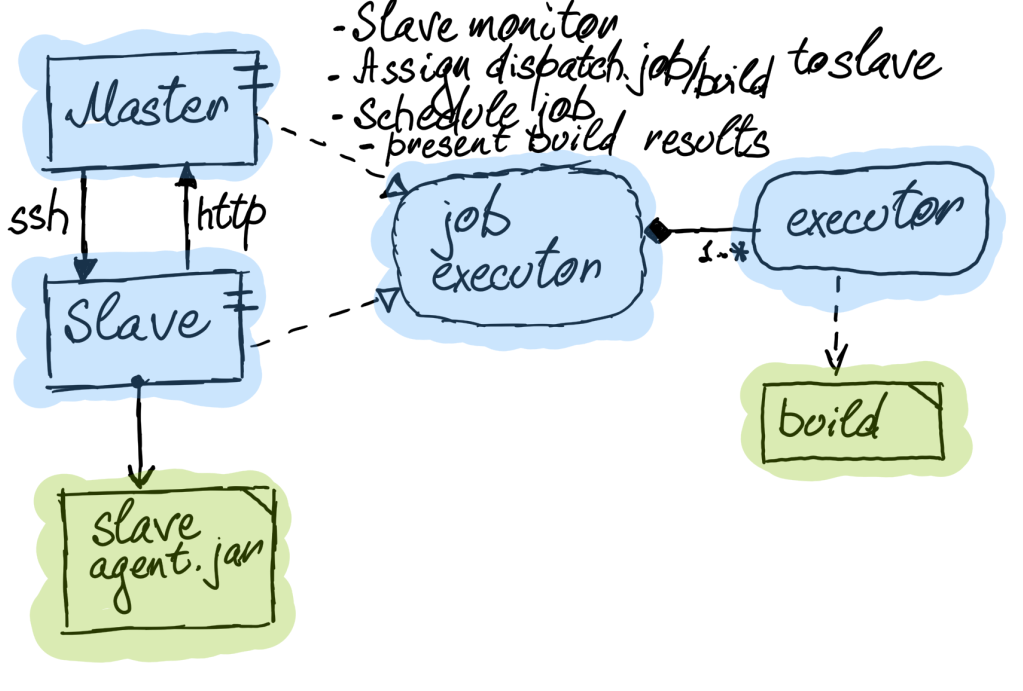

installation master-slave

master-slave creation process for OCP

manual clean up

rm -rf .jenkins/caches/* rm -rf .jenkins/workspace/*

manual start manual installation

jenkins manual how to
jenkins war
jenkins war download
jenkins docker image
jenkins docker documentation

java -jar jenkins.war --httpPort=8080 --useJmx
~/.jenkins/secrets/

how to know version

(/var/lib/jenkins) (/opt/webconf/var/lib/jenkins) config.xml 1.599

restart jenkins

{jenkins-url}/safeRestart
{jenkins-url}/restart
java -jar /var/cache/jenkins/war/WEB-INF/jenkins-cli.jar -s {jenkins-url} safe-restart

stop jenkins

{jenkins-url}/exit

connect to jenkins

JENKINS_HOST=jenkins-stg.vantage.com
JENKINS_USER=cherkavi

JENKINS_URL=https://$JENKINS_HOST

jenkins connect via cli

# curl -Lv $JENKINS_URL/login 2>&1  | grep -i 'cli-port'
# wget $JENKINS_URL/jnlpJars/jenkins-cli.jar
java -jar jenkins-cli.jar -noCertificateCheck -s $JENKINS_URL help

java -jar jenkins-cli.jar -s $JENKINS_URL -webSocket -auth $JENKINS_USER:$JENKINS_API_TOKEN help
java -jar jenkins-cli.jar -s $JENKINS_URL -noCertificateCheck -auth $JENKINS_USER:$JENKINS_API_TOKEN help

connect via ssh

curl -Lv $JENKINS_URL/login 2>&1  | grep -i 'x-ssh-endpoint'
# security settings: add public ssh
# $JENKINS_URL/user/$JENKINS_USER/configure -> SSH Public Keys

# x-jenkins-cli-port: 50000
ssh -l $JENKINS_USER -p 50000 $JENKINS_HOST help

java -jar jenkins-cli.jar -s $JENKINS_URL -ssh -user $JENKINS_USER -i ~/.ssh/id_rsa -logger FINE

connect via ssh

# security settings: add public ssh
# $JENKINS_URL/user/$JENKINS_USER/configure -> SSH Public Keys

curl -Lv $JENKINS_URL/login 2>&1  | grep -i 'x-ssh-endpoint'
ssh -l $JENKINS_USER -p 50000 $JENKINS_HOST help

collaboration between steps, passing data between steps

Set your variable export myenv=value1 and read in afterwards
print to file echo $START > env_start.txt and read it afterwards START=$(cat env_start.txt)

Script Console ( Manage Jenkins )

Thread.getAllStackTraces().keySet().each() {
  t -> if (t.getName()=="YOUR THREAD NAME" ) {   t.interrupt();  }
}
Jenkins.instance.getItemByFullName("Brand Server/develop").getBuildByNumber(614).finish(hudson.model.Result.ABORTED, new java.io.IOException("Aborting build"));
Jenkins.instance.getItemByFullName("Brand Server/develop").getBuildByNumber(614).doKill();

jenkins simple pipeline

node {
 	stage("Step #1") {
		echo "first bite"
	}

	stage("Step #2") {
		sh "ansible --version"
	}
}

def saveToFileUrl(gitRepoUser, gitRepoName, gitFilePath, localFileName){
    final String gitUrl="https://github.net"
    String gitFileDescription = ""
    withCredentials([usernamePassword(credentialsId: 'xxxxx', passwordVariable: 'gitToken', usernameVariable: 'gitUser')]) {
        gitFileDescription = sh(script: "curl -u ${gitUser}:${gitToken} ${gitUrl}/api/v3/repos/${gitRepoUser}/${gitRepoName}/contents/${gitFilePath} | grep download_url", returnStdout: true).trim()
    }

    final String urlResponse = sh(script: "curl -s ${gitFileDescription.split(" ")[1].replaceAll('"','').replaceAll(',','')}", returnStdout: true).trim()
    writeFile file: localFileName, text: urlResponse
    return urlResponse
}

pipeline {
    agent any

    stages {
        stage('download execution script') {
            steps{
                script{
                    env.TMP_FILE_NAME = createTempFile();
                    saveToFileUrl(getGitRepoUser(), getGitRepoName(), getGitPath(), "${env.TMP_FILE_NAME}")
                }
            }
        }
        stage('execute script REST API test') {
            steps{
                script{
                    withCredentials([usernamePassword(credentialsId: 'yyyyy', passwordVariable: 'pass', usernameVariable: 'user')]) {
                        env.D_USER=user
                        env.D_PASS=pass
                        def exitStatus=sh(script: "sh ${env.TMP_FILE_NAME}", returnStatus: true)
                        evaluateResult(exitStatus)
                    }
                }
            }
        }
    }
}

with credential alternative

artifactoryCredential = string(credentialsId: '4d18-aaabb-4cdffaf348', variable: 'ARTIFACTORY_TOKEN')
withCredentials([artifactoryCredential]){
  sh "echo $ARTIFACTORY_TOKEN"
}

name of the build and using parameters

pipeline {
    agent any

    stages {
        stage('check input boolean parameter') {
            when {
                expression { params.FAIL }
            }
            steps {
                sh 'cat /etc/shadow'
            }
        }
    }
    post{
        success {
            script {
            currentBuild.displayName = "$BUILD_NUMBER - Successfull Build"
            currentBuild.description = "OK"
	    currentBuild.result='SUCCESS'
            }
        }
        failure {
            script {
            currentBuild.displayName = "$BUILD_NUMBER - Failed Build"
            currentBuild.description = "NOT OK"
	    currentBuild.result='FAILURE'
            }
        }
    }
}

use "system groovy script" for updating description with multisteps

echo "my description" > job_description.txt

def currentBuild = Thread.currentThread().executable
def workspace = build.workspace
def description = new File("${workspace}/job_describtion.txt").text
currentBuild.setDescription(description)

jenkins read http write file from http to scp

stage("Step #3") {
		final String url="https://api.ipify.org"
		final String urlResponse = sh(script: "curl -s $url", returnStdout: true).trim()
		final String outputFile = "/var/jenkins_home/my-ip-address.txt"
		writeFile file: outputFile, text: urlResponse

	withCredentials([usernamePassword(credentialsId: '222-333-444', passwordVariable: 'MY_SSH_PASS', usernameVariable: 'MY_SSH_USER')]) {
		final String host="localhost"
		final String outputFileName="my-host-ip"

		// final String command="sshpass -p " +MY_SSH_PASS+ " scp " +outputFile+ " " +MY_SSH_USER+ "@" +host+ ":~/" +outputFileName
		// final String command="sshpass -p $MY_SSH_PASS scp $outputFile $MY_SSH_USER@$host:~/$outputFileName"
		final String command="sshpass -p ${MY_SSH_PASS} scp ${outputFile} ${MY_SSH_USER}@${host}:~/${outputFileName}"
		sh(command)
		sh("rm $outputFile")
		}
      }```

### jenkins git timeout
```groovy
checkout([$class: 'GitSCM', branches: [[name: "*/$branch"]], doGenerateSubmoduleConfigurations: false, extensions: [[$class: 'GitLFSPull', timeout: 30], [$class: 'CloneOption', depth: 0, timeout: 30], [$class: 'CheckoutOption', timeout: 30]], submoduleCfg: [], userRemoteConfigs: [[credentialsId: 'a0e5424f-2ffb-', url: '$CC_GIT_CREDENTIAL']]])
    }

jenkins job DSL user input, build with parameters


	if (isGitBranch('OPM-integration-test')) {
            stage('candidate-git-label') {
                lastCommit = sh(returnStdout: true, script: "git log -n 1 --pretty=format:'%h'").trim()
                print(lastCommit)
                def newVersion = readVersion()
                print("this is new version: $newVersion")
            }
            stage('candidate-deploy') {
                mvn('org.apache.tomcat.maven:tomcat7-maven-plugin:2.2:redeploy -Dmaven.tomcat.url=http://host:9090/manager/text -Dtomcat.username=root -Dtomcat.password=root -DskipTests ')
            }
		}

--------------
def readVersion() {
  try {
    timeout(time: 20, unit: 'MINUTES') {
        def keep = input message: 'New version of application:',
                    parameters: [stringParam(defaultValue: "2018.06.00.00-SNAPSHOT", description: 'new application version', name: 'currentBuildVersion')]
        return keep
    }
  } catch(e) {
    return "2018.06.00.00-SNAPSHOT"
  }
}

jenkins job DSL frame for env.BRANCH_NAME<->build step

	needToExecuteStage('build', {
            mvn('-U clean package -Dmaven.javadoc.skip=true')
	})

        needToExecuteStage('deploy nexus', {
            mvn('-U deploy -Dmaven.javadoc.skip=true -Dbuild.number=${GIT_BRANCH}-#${BUILD_NUMBER}')
	})

        needToExecuteStage('sonar', {
            mvn('sonar:sonar -Psonar-test')
	})

        needToExecuteStage('integration tests', {
            mvn('install -DskipTests -DskipITs=false -Pintegration-tests,dev -Dheadless=1')
        })

        needToExecuteStage('git label', {
            def newVersion = readVersion()
            print(">-> deploy application with new version: $newVersion")
            sh( script: "git checkout $BRANCH_NAME ")
            def remoteUrl = sh(returnStdout: true, script: "git config --get remote.origin.url ")
            sh( script: "git remote set-url origin $remoteUrl ")
            sh(script: "echo $newVersion > opm-gui/src/main/webapp/META-INF/commit ")
            sh(script: "git rev-parse HEAD >> opm-gui/src/main/webapp/META-INF/commit ")
            sh( script: "git tag -a $newVersion -m 'deployment_jenkins_job' ")
            sshagent (credentials: ['git_jenkins']) {
                 sh("git push --tags $remoteUrl")
            }
            mvn ("versions:set -DnewVersion=$newVersion")
            mvn ("-N versions:update-child-modules")
            mvn ("clean install -DskipTests=true")
		})

        needToExecuteStage('deploy tomcat', {
            mvn('org.apache.tomcat.maven:tomcat7-maven-plugin:2.2:redeploy -Dmaven.tomcat.url=http://v337:9090/manager/text -Dtomcat.username=root -Dtomcat.password=root -DskipTests ')
        })

// -------------------------------------------
def executeStage(needToExecute, stageName, func){
    if(needToExecute){
        stage(stageName){
            func()
        }
    }
}

def needToExecuteStage(stageName, func){
    def decisionTable = [
             'release' : ["build": true,  "deploy nexus": true,  "sonar": false, "integration tests": true,  "git label": true,  "deploy tomcat": false]
            ,'develop' : ["build": true,  "deploy nexus": true,  "sonar": true,  "integration tests": true,  "git label": false, "deploy tomcat": true ]
            ,'feature' : ["build": true,  "deploy nexus": false, "sonar": false, "integration tests": true,  "git label": false, "deploy tomcat": false]
            ,'master'  : ["build": true,  "deploy nexus": true,  "sonar": false, "integration tests": true,  "git label": false, "deploy tomcat": false]
,'integration-test': ["build": true,  "deploy nexus": true,  "sonar": false, "integration tests": true,  "git label": false, "deploy tomcat": false]
    ]

    def branchName = env.BRANCH_NAME
    if(decisionTable[branchName]!=null){
        executeStage(decisionTable[branchName][stageName], stageName, func)
        return
    }

    for ( def key in decisionTable.keySet()){
        if(branchName.startsWith(key)){
            executeStage(decisionTable[key][stageName], stageName, func)
            return
        }
    }
}

groovy escape quotes

String input = "this ain't easy"
String escaped = "'" + input.replaceAll(/'/, /'"'"'/) + "'"
println escaped
// 'this ain'"'"'t easy'

sh "mycommand --input ${escaped}"

groovy random groovy variables

// vairable inside jenkins pipeline

pipeline {
    agent any

    environment {
        TMP_FILE_NAME = "kom.yaml"+"${Math.abs(new Random().nextInt(99999))}"
    }

    stages {
        stage('read from git write to cluster') {
            steps {
                echo "----- ${env.TMP_FILE_NAME}"

                script {
                    env.TMP_FILE_NAME2 = "second variable"
                }
                echo "----- ${env.TMP_FILE_NAME2}"

            }
        }
    }

}

groovy pipeline show credentials

// create pipeline with groovy script

/**
Jenkins Pipeline (create project Pipeline) script for printing out credentials
# jenkins show credentials
*/
def show(){
    withCredentials([sshUserPrivateKey(credentialsId: 'xxx-yyy-883a-38881320d606', keyFileVariable: 'data_api_key', passphraseVariable: '', usernameVariable: 'data_api_username')]) {
        return "\n>>>  data_api_key ${data_api_key} \n data_api_username: ${data_api_username}"
    }
    withCredentials([usernamePassword(credentialsId: 'xxx-yyy-a659-b54d73eec29a', passwordVariable: 'database_password', usernameVariable: 'database_user')]) {
        return " \nlogin ${database_user} \npassword ${database_password}"
    }
}

pipeline {
    agent any

    stages {
        stage('show me') {
            steps {
                echo "-----"
                echo show().reverse()
                echo "-----"
            }
        }
    }
}

// # echo "gts-pd-sergtsop" | rev

pipeline with bash script and specific agent

pipeline {
    agent { label 'agent-maven-python-git-ansible' }

    stages {
        stage('print message ') {
            steps {
                echo 'Hello World'
            }
        }
        stage('print ansible version'){
            steps {
                sh 'ansible-playbook --version'
            }
        }
    }
}

condition for step

...
  stage('Action') {
        if (env.CUSTOM_VARIABLE ==~ /(?i)(Y|YES|T|TRUE|ON|RUN)/) {
	 ...

show accessible environment jenkins variables

$JENKINS_URL/env-vars.html/

REST API

check connection

JENKINS_URL=https://jenkins-stg.dpl.org
curl -sg "$JENKINS_URL/api/json?tree=jobs[name,url]" --user $DXC_USER:$DXC_PASS

deploy with parameters

# obtain list of parameters: $JENKINS_URL/job/application/job/data-api/job/deployment/job/deploy-services/api/json?pretty=true
curl $JENKINS_URL/job/application/job/data-api/job/deployment/job/deploy-services/buildWithParameters \
  --user $DXC_USER:$DXC_PASS \
  --data BRANCH_NAME=master \
  --data DESTINATION=stg-6 \
  --data DEBUG=true  \
  --data DEPLOY_DATA_APIDEBUG=true

job information

curl -sg "$JENKINS_URL/job/application/job/data-portal/job/deployment/job/deploy-from-branch-3/244/api/json" --user $DXC_USER:$DXC_PASS
curl -sg "$JENKINS_URL/job/application/job/data-portal/job/deployment/job/deploy-from-branch-3/244/api/json?tree" --user $DXC_USER:$DXC_PASS
curl -sg "$JENKINS_URL/job/application/job/data-portal/job/deployment/job/deploy-from-branch-3/api/json?tree=allBuilds[number,url]" --user $DXC_USER:$DXC_PASS

job full log output

curl -sg "$JENKINS_URL/job/application/job/data-portal/job/deployment/job/deploy-from-branch-3/244/consoleFull" --user $DXC_USER:$DXC_PASS

sonar management

obtaining

wget https://sonarsource.bintray.com/Distribution/sonarqube/

start/stop/status

/dev/sonar/bin/linux-x86-64/sonar.sh start
/dev/sonar/bin/linux-x86-64/sonar.sh status
/dev/sonar/bin/linux-x86-64/sonar.sh stop

sonar

url: http://host01:9000
login: admin
passw: admin

print all accessible variables

echo sh(returnStdout: true, script: 'env')

plugins

plugin manual installation

copy jpi/hpi file into {JENKINS_HOME/plugins}

plugin manual removing

copy jpi/hpi file into {JENKINS_HOME/plugins}

list all accessible plugins

https://{jenkins-url}/pluginManager/api/xml?depth=1

email plugin

emailext body: mailNotification.toString(), subject: "notification", to: env.mail_recipients, mimeType: "text/plain"

email for bash script

if [[ -n $status_error ]]; then
    echo "need to be considered"
    exit 1
fi

Post-build Actions -> E-Mail Notification -> Send e-mail for every unstable build

Issues

ERROR: script not yet approved for use

http://localhost:9090/scriptApproval/

withMaven(jdk: 'jdk8', maven: 'mvn-325', mavenSettingsConfig: 'paps-maven-settings') {

jdk with name "jdk8" should be configured: http://localhost:9090/configureTools/
maven with name "mvn-325" should be configured: http://localhost:9090/configureTools/

Could not find the Maven settings.xml config file id:paps-maven-settings. Make sure it exists on Managed Files

plugin should be present
http://localhost:9090/configfiles/

RSA key fingerprint is SHA256:xxxxxx Are you sure you want to continue connecting (yes/no) ? ssh://git@webgit.xxxxxx.de:7999/pportal/commons.git

change
gitHostUrl = "https://user@webgit.xxxx.de/scm"

Workspace sharing between runs

execute shell

echo "---------------"
ls -la current-date.txt || echo "."
cat current-date.txt || echo "."
readlink -f current-date.txt
pwd
date > current-date.txt
ls -la current-date.txt
echo "---------------"

output

[EnvInject] - Loading node environment variables.
Building on master in workspace /var/lib/jenkins/jobs/application/jobs/data-api/jobs/test/jobs/test-project/workspace
[workspace] $ /bin/sh -xe /tmp/jenkins908209539931105022.sh
+ echo ---------------
---------------
+ ls -la current-date.txt
-rw-r--r--. 1 1001 root 29 Feb  8 10:08 current-date.txt
+ cat current-date.txt
Tue Feb  8 10:08:39 UTC 2022
+ readlink -f current-date.txt
/var/lib/jenkins/jobs/application/jobs/data-api/jobs/test/jobs/test-project/workspace/current-date.txt
+ pwd
/var/lib/jenkins/jobs/application/jobs/data-api/jobs/test/jobs/test-project/workspace
+ date
+ ls -la current-date.txt
-rw-r--r--. 1 1001 root 29 Feb  8 10:13 current-date.txt
+ echo ---------------
---------------
Finished: SUCCESS

Files

jenkins-cheat-sheet.md

Latest commit

History

jenkins-cheat-sheet.md

File metadata and controls

Jenkins cheat sheet

Deployment strategies:

links

alternatives

alternatives in cloud ( SaaS )

DSL

installation on debian

installation master-slave

manual clean up

manual start manual installation

how to know version

restart jenkins

stop jenkins

connect to jenkins

jenkins connect via cli

connect via ssh

connect via ssh

collaboration between steps, passing data between steps

Script Console ( Manage Jenkins )

jenkins simple pipeline

jenkins read http write file from http to scp

jenkins job DSL user input, build with parameters

jenkins job DSL frame for env.BRANCH_NAME<->build step

groovy escape quotes

groovy random groovy variables

groovy pipeline show credentials

pipeline with bash script and specific agent

condition for step

show accessible environment jenkins variables

REST API

sonar management

print all accessible variables

plugins

plugin manual installation

plugin manual removing

list all accessible plugins

email plugin

email for bash script

Issues

Workspace sharing between runs
