🔍 Agentic Workflow Audit Report - 2026-02-12

[github-actions[bot]]

Audit Summary

Period: Last 24 hours (2026-02-11 to 2026-02-12)

• Runs Analyzed: 34
• Workflows Active: 8
• Success Rate: 91.2% ✅
• Issues Found: 1 critical issue
• Total Tokens: 38,635,837
• Estimated Cost: $115.91

---

📊 Workflow Health & Performance Trends

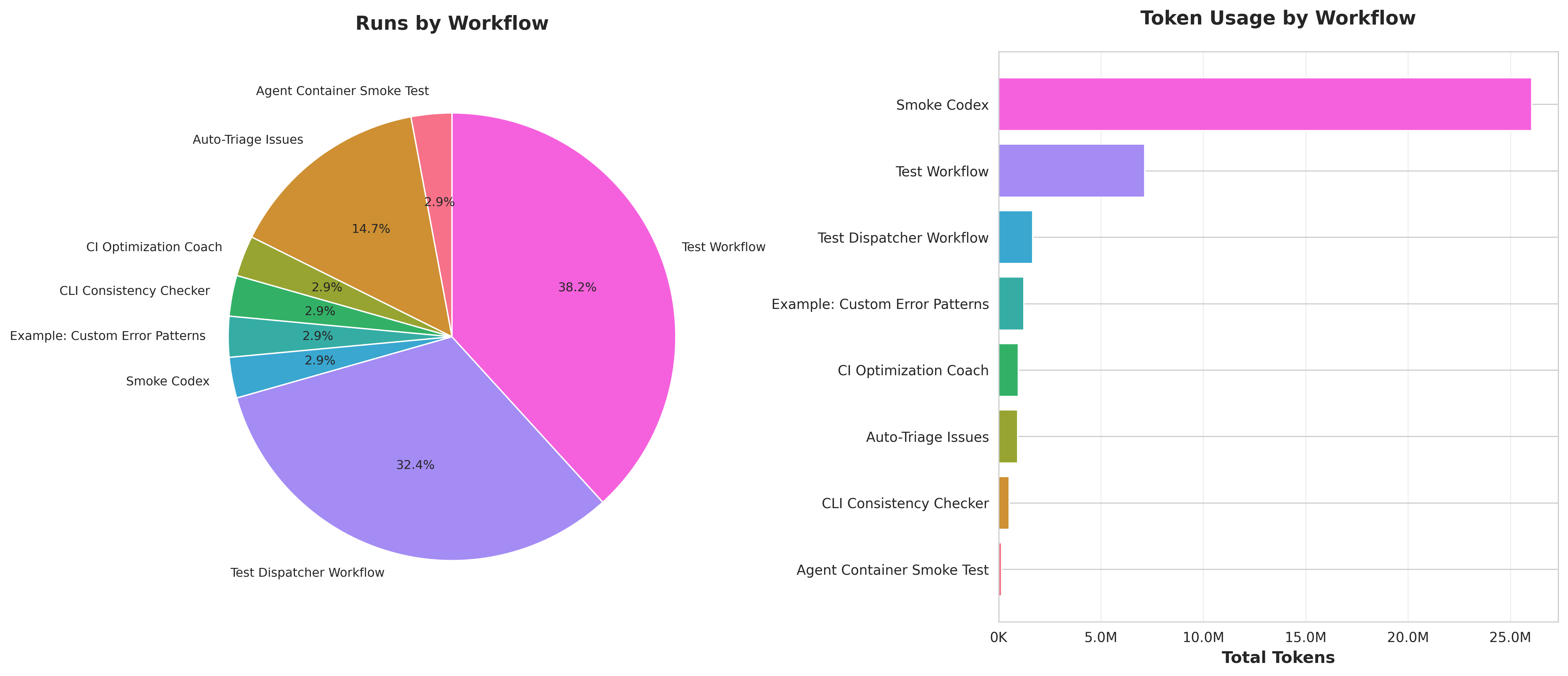

Analysis: Overall system health is excellent with a 91.2% success rate across all workflows. The trend shows consistent success throughout the 24-hour period with only 3 cancelled runs and zero failures. Token usage shows healthy variation with peaks during scheduled workflow executions.

Analysis: The Smoke Codex workflow dominates token usage (67% of total), consuming 26M tokens in a single run. This is expected for comprehensive testing but warrants continued monitoring. Test Workflow and Test Dispatcher Workflow account for most execution volume.

---

⚠️ Critical Issues

1. Missing Tool: Go 1.25.0 Toolchain

Severity: High
Impact: CLI Consistency Checker workflow cannot complete its core function

Detail	Value
Tool	Go 1.25.0 toolchain
Occurrences	1
Workflows Affected	CLI Consistency Checker
Root Cause	Firewall blocking storage.googleapis.com with 403 Forbidden errors

Description: The CLI Consistency Checker workflow requires Go 1.25.0 to build the gh-aw CLI binary. However, toolchain downloads from storage.googleapis.com are being blocked by the network firewall, preventing the workflow from completing its inspection tasks.

Run Reference: §21948705087

---

🔥 Firewall Analysis

Summary Statistics:

• Total Network Requests: 919
• Allowed: 393 (42.8%)
• Blocked: 526 (57.2%)

Allowed Domains

✅ Successfully allowed connections to:

• api.enterprise.githubcopilot.com:443
• api.github.com:443
• api.githubcopilot.com:443
• api.openai.com:443
• github.com:443
• proxy.golang.org:443 (partial - 8 allowed, 26 blocked)
• registry.npmjs.org:443
• telemetry.enterprise.githubcopilot.com:443

Blocked Domains

❌ Blocked connection attempts:

Domain	Blocks	Impact	Notes
- (unknown)	494	Unknown	High volume of failed/malformed requests - requires investigation
storage.googleapis.com:443	6	Critical	Blocking Go toolchain downloads
proxy.golang.org:443	26	Medium	Inconsistent blocking causing intermittent Go module issues

View Firewall Blocks by Workflow

Test Workflow: 25 blocked requests (22 unknown + 3 proxy.golang.org)
CI Optimization Coach: 30 blocked requests (all unknown domain)
Example: Custom Error Patterns: 52 blocked requests (50 unknown + 2 proxy.golang.org)
Smoke Codex: 31 blocked requests (all unknown domain)
CLI Consistency Checker: 22 blocked requests (16 unknown + 6 storage.googleapis.com)

---

📈 Workflow Performance Metrics

View Detailed Performance by Workflow

Workflow	Runs	Success Rate	Total Tokens	Avg Tokens/Run
Smoke Codex	1	100%	26,036,254	26,036,254
Example: Custom Error Patterns	1	100%	1,238,694	1,238,694
CI Optimization Coach	1	100%	968,700	968,700
Test Workflow	11	81.8%	6,142,139	558,376
CLI Consistency Checker	1	100%	514,776	514,776
Auto-Triage Issues	5	100%	419,705	83,941
Test Dispatcher Workflow	10	100%	1,396,425	139,643
Agent Container Smoke Test	1	100%	141,969	141,969

Notes:

• Smoke Codex used 14 turns (multi-turn reasoning workflow)
• Test Workflow has lower success rate due to user-cancelled runs
• All other workflows maintained 100% success rate

---

🔧 Tool Usage Statistics

View Top Tool Usage

Tool Name	Total Calls	Workflows Using
serena_write_memory	4	1
serena_find_symbol	2	1
safeoutputs_add_comment	1	1
safeoutputs_remove_labels	1	1
safeoutputs_add_labels	1	1
github_search_pull_requests	1	1
playwright_browser_navigate	1	1

---

✅ Key Findings

1. Excellent Overall Health: 91.2% success rate with zero errors and zero warnings across all workflows
2. Critical Toolchain Issue: Go 1.25.0 downloads blocked by firewall affecting CLI builds
3. High Network Blocking: 57.2% of network requests blocked, with 494 requests to unknown domain
4. Token Distribution: Smoke Codex dominates usage (67%), but is designed for comprehensive testing
5. Stable Workflows: Most workflows (7 of 8) maintained 100% success rate
6. No MCP Failures: All MCP server connections functioning correctly

---

💡 Recommendations

High Priority

1. Whitelist storage.googleapis.com: Allow downloads from Google Cloud Storage for Go toolchain installation. This is blocking the CLI Consistency Checker workflow.

2. Investigate Unknown Domain Blocks: 494 blocked requests to domain - (unknown) suggests potential misconfiguration, failed DNS resolution, or malformed requests. Requires log analysis to identify root cause.

Medium Priority

3. Review proxy.golang.org Blocking Pattern: Inconsistent allow/block behavior (8 allowed, 26 blocked) may cause intermittent Go module fetch failures.

4. Monitor Smoke Codex Token Usage: While expected for comprehensive testing, consider implementing token usage alerts given high consumption (26M tokens per run).

5. Review Test Workflow Cancellations: Investigate if the 2 cancelled runs are user-initiated or indicate system issues.

---

📝 Historical Context

This is the first audit stored in the repo memory system. Future audits will include trend comparisons and historical pattern analysis.

Stored Data:

• Full audit report: /memory/audits/2026-02-12.json
• Missing tools patterns: /memory/patterns/missing-tools.json
• Firewall blocks analysis: /memory/patterns/firewall-blocks.json
• Audit index: /memory/audits/index.json

---

📋 Next Steps

• Whitelist storage.googleapis.com in firewall configuration
• Investigate 494 unknown domain blocks
• Review proxy.golang.org blocking inconsistency
• Set up token usage monitoring for Smoke Codex
• Schedule next audit for 2026-02-13

---

References:

• CLI Consistency Checker Run §21948705087
• Smoke Codex Run §21947200986
• CI Optimization Coach Run §21948588934

AI generated by Agentic Workflow Audit Agent

• expires on Feb 19, 2026, 1:48 PM UTC
