The State Backed state machine visualizer will add a comment to any PR that adds or changes an XState state machine with a visualization of the machine.

Keep authors, reviewers, and maintainers on the same page by visualizing the structure of your logic.

Made with ❤️ by State Backed, the fastest way to deploy state machines as invincible workflows and real-time backends.

This GitHub bot is actually running on State Backed :)

Install the State Backed state machine visualizer on as many repositories as you like.

The bot will ignore PRs that don't include a state machine.

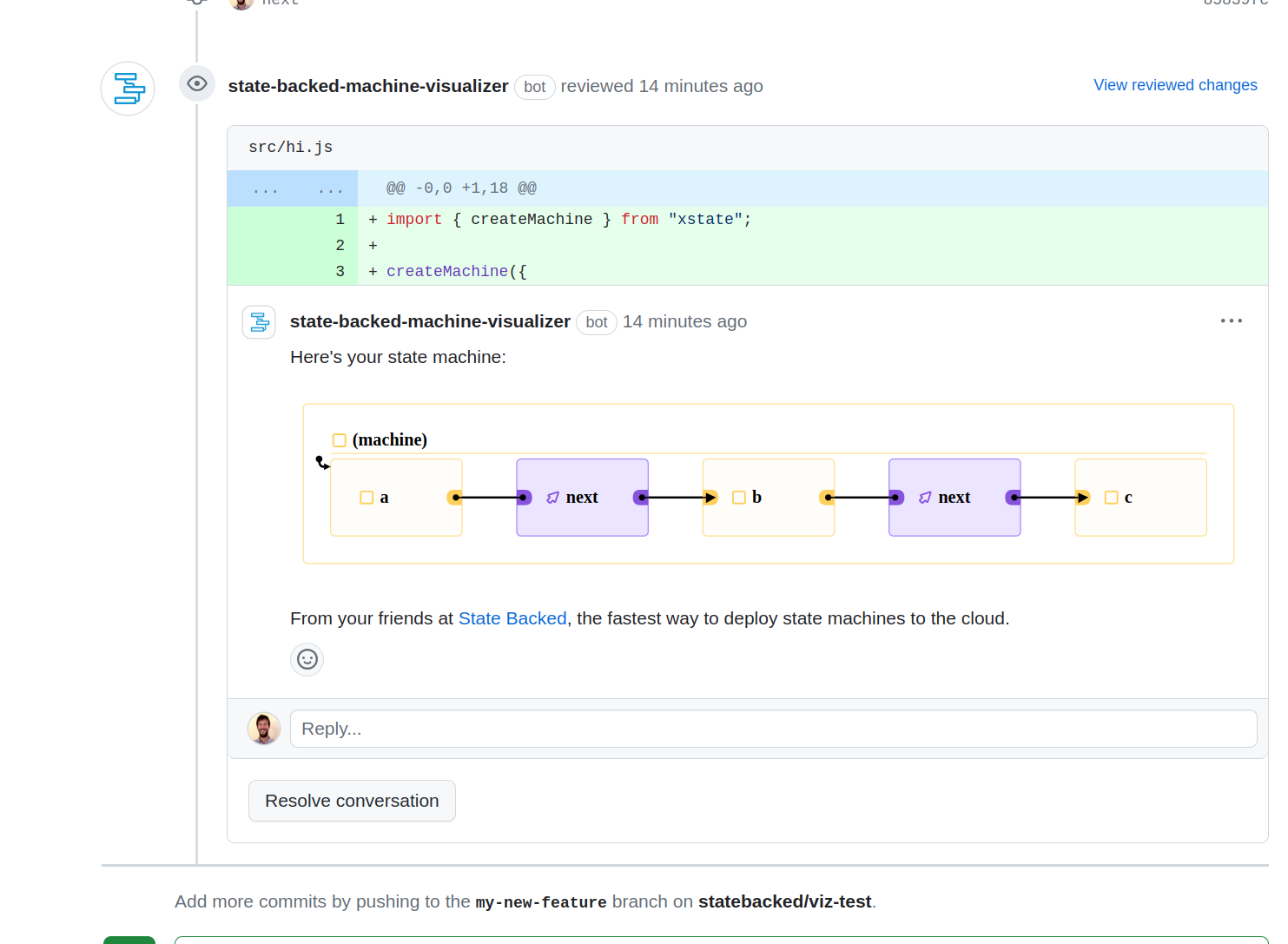

For PRs that do include a state machine, the bot will add a comment to the createMachine call with visualization of the machine (because of the limitations of GitHub comments, this is a static SVG).

The visualization is created with the @statebacked/react-statechart library.

This bot is running on State Backed. For each GitHub webhook, we extract the entities involved (e.g. users, repositories, pull requests) and then send the webhook as an event to the state machine that represents that entity. The actual implementation is just a simple state machine, reacting to events and executing a durable workflow.
