How setState works - part 1

This article belongs to the series Read React Source Code.

Static component is boring. In this article we will:

• refactor the demo and add setState()
• trace the call and
• introduce Transaction

The whole call process of setState() is complex and long, so I break it into three articles. Enjoy it!

Refactor the Demo and Add setState()

Refactor is not difficult for such a simple demo.

class Demo extends React.Component {
  constructor(props) {
    super(props);
    this.state = {name: 'John'};
  }

  render() {
    return (
      <h1>
        Hello, {this.state.name}!
      </h1>
    )
  }

  componentDidMount() {
    this.setState({
      name: 'Jack'
    })
  }
}

ReactDOM.render(
  <Demo />,
  document.getElementById('root')
);

Notice that I add setState() to componentDidMount() in order to show you how batching works.

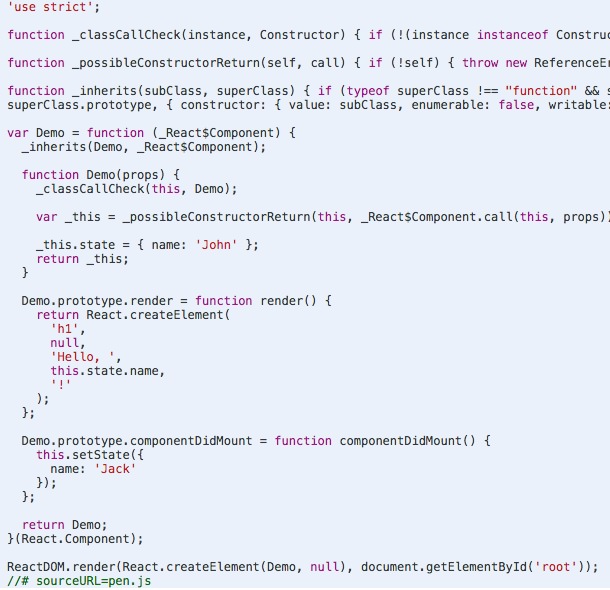

Let's copy this to CodePen and get the compiled code with the skill we learn in previous article.

We can ignore those helper functions. You see, our class is compiled to a function, render() and componentDidMount() is set to its prototype.

With our demo, we can start to trace the code execution.

Trace the Call

In previous article we have seen the render() process of ReactDOMComponent. Now we change the plain DOM tag to our custom element, so it goes to create a ReactCompositeComponent.

The beginning calls are the same, but it diverges when you meet internalInstance.mountComponent() in ReactReconciler.js. Because the instance is different, now we should go into ReactCompositeComponent to look for mountComponent().

The heart of this article is setState(), so I'll leave this different mountComponent() to you.

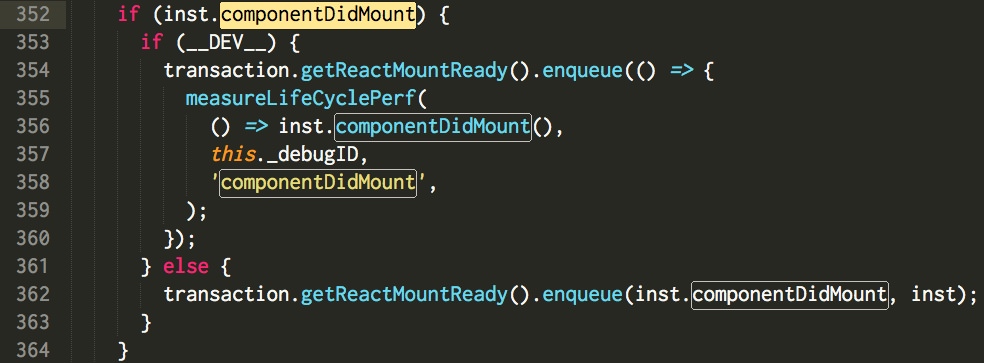

setState() is in componentDidMount(), so let's search it and start from that call.

transaction.getReactMountReady().enqueue(inst.componentDidMount, inst);

We need to find out what is that transaction.

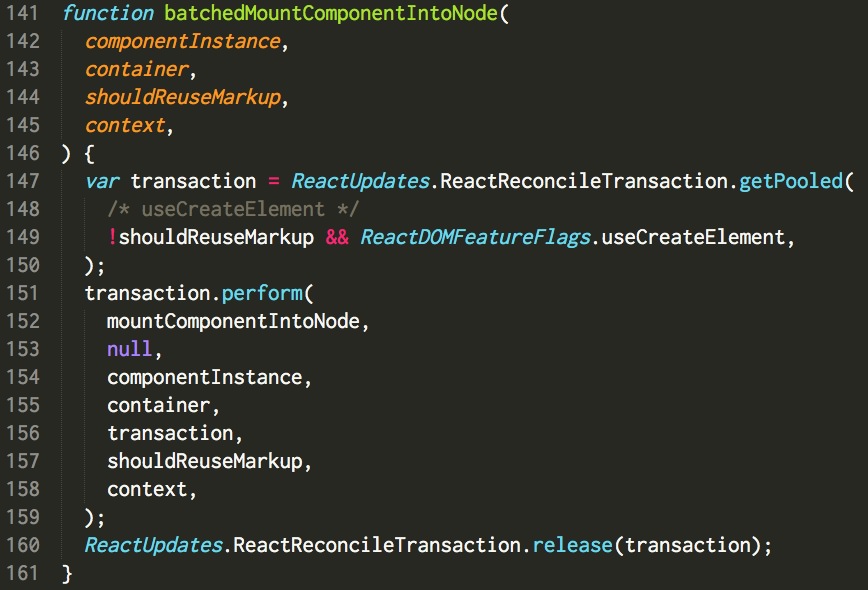

Go back through the call stack, we find it's set in ReactMount.js.

Jump into ReactUpdates.js and search ReactReconcileTransaction. Oh, it's injected. Search injectReconcileTransaction((notice I add a ( to filter out calls), we find the injected value is ReactReconcileTransaction.

Open ReactReconcileTransaction.js, here we will look transaction in detail.

Transaction

In the previous article, we have said that Transaction is basically a wrapper. You can open transaction.js and read it's comments. Here is the behavior of Transaction:

• you call transaction.perform(callback)
• that transaction instance calls getTransactionWrappers() to get wrappers
• it iterates all wrappers and calls their initialize()
• then calls callback()
• finally, it iterates all wrappers and calls their close()

Transaction has two mainly usages:

1. initialize and cleanup, like a class destructor()
2. put off some operations and execute them during close(), ReactDefaultBatchingStrategy implements this pattern

Transaction itself is generic, most time you need to custom your own transaction class.

Let's see how ReactReconcileTransaction is defined.

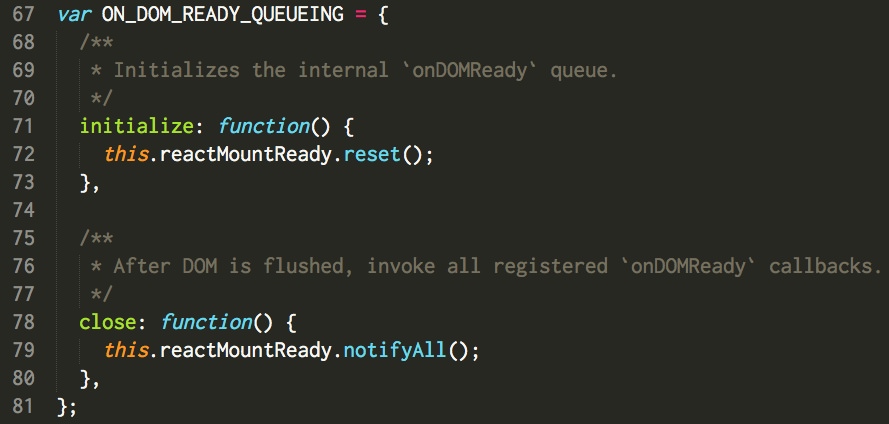

First, it defines three wrappers, SELECTION_RESTORATION, EVENT_SUPPRESSION and ON_DOM_READY_QUEUEING. They all have initialize() and close(), comments can help you understand their function.

Then defines ReactReconcileTransaction() and it's mixin. Transaction and Mixin is assigned to ReactReconcileTransaction.prototype, so all methods of them can be called from the instance. That's how Transaction.perform() gets the wrappers you define.

Finally, use PooledClass.addPoolingTo() to add pooling to ReactReconcileTransaction.

What's PooledClass?

Search and open the file, it implements a generic pooling. When you call addPoolingTo(), it will define getPooled() and release() to target's prototype. So in your code you call obj.getPooled() instead of new obj() to get an instance.

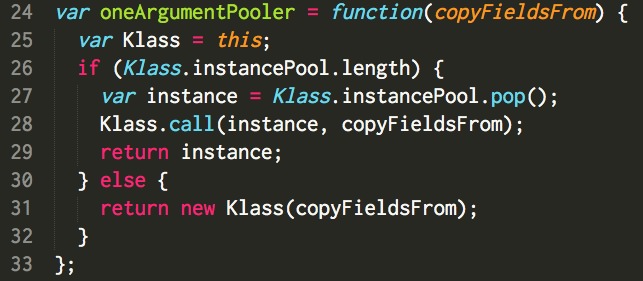

Pooling is not complex, just store instances in an array, reinitialize and return them in getPooled(). The tricky part is how to do the reinitialize. This is a generic class, so it must delegate the reinitialization to its target class. Let's see the oneArgumentPooler().

If the instance array is empty, it calls new Klass() to get a new instance. If the pooling is not empty, it just takes one and calls Klass.call() to do reinitialization.

Go back to ReactReconcileTransaction, we can see it calls this.reinitializeTransaction() which is a prototype method defined in Transaction.

With Transaction you can extract common parts in process and create a wrapper to use in the process. With PooledClass you can optimize your wrappers with pooling. It's important, because in real projects some process may be executed frequently(like render()), so reduce the need for creating a new instance is necessary.

Now we can go back to our start point.

transaction.getReactMountReady().enqueue(inst.componentDidMount, inst);

From ReactReconcileTransaction.js we know getReactMountReady() returns a queue. When we meet componentDidMount() and componentDidUpdate(), they will be enqueued and executed after the whole mounting process.

Why should we use a queue to store hooks? Because our component may have child components which also define hooks. The component is mounted to DOM as a whole, you can't mount child A, call its hooks, mount father, call its hook. It's unnecessary and inefficient, so we just mount the whole component with all its children and call any hooks defined in and inside this component.

The call of our componentDidMount() is in ReactReconcileTransation.js.

After the mount process, Transaction will iterate and call wrapper's close(), and this close() will iterate and call all hooks.

Next Step

In this article, we have learned Transaction and PooledClass. We also know when and how our componentDidMount() is called.

In next article, we will go on and execute our componentDidMount() and see what will happen. Hope you still remember that we have a setState() inside it.

Practice

Read the comments in Transaction.js, the character picture inside that will help you understand Transaction better.

Read PooledClass again, simulate the call getPooled() and release(), figure out how it manages the instance in the pool with the size limitation.
