lora driver-Added LR1110 driver in mbed-os

[kvkc97]

Summary of changes

LoRa Driver for LR1110 added for LoRaWAN communication with LR1110. Corresponding CMakeLists file modified.
This adds LR1110 as a lora driver along with current ones such as SX1276 etc.

Pull request type

[] Patch update (Bug fix / Target update / Docs update / Test update / Refactor)
[X] Feature update (New feature / Functionality change / New API)
[] Major update (Breaking change E.g. Return code change / API behaviour change)

[ciarmcom]

@kvkc97, thank you for your changes.
@ARMmbed/mbed-os-connectivity @ARMmbed/mbed-os-maintainers please review.

[kvkc97]

My aim is to integrate LR1110 Driver to mbed-os library and use the driver for LoRaWAN communication. I tried to add LR1110 as a library outside mbed-os and got few errors. Therefore, I tried to include LR1110 driver into mbed-os. I had tried to compile the library with mbed-os-example-lorawan code. Link of the same is given below.
https://github.com/ARMmbed/mbed-os-example-lorawan

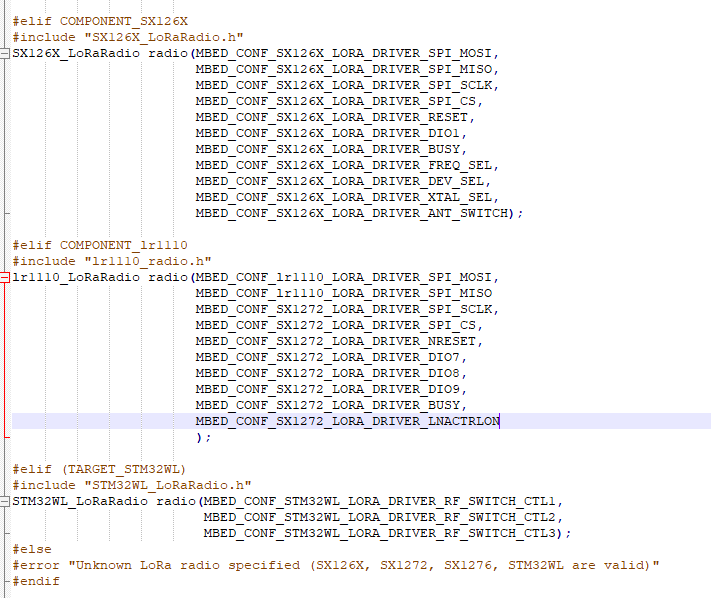

I tried to create external radio for lr1110 by modifying the lora_radio_helper.cpp file as follows.

I also declared the class constructor in lr1110_radio.h from lr1110 driver folder as below.

I got the following compiler error. I am using MBED CLI2 for compiling with STM32WB55RGV6 controller added as custom target (Custom target addition is successfully done). I made the above mentioned changes to incorprate LR1110 as a lora driver. An issue regarding the same was raised in ARMmbed/mbed-tools. Link added below.
ARMmbed/mbed-tools#217
How should I proceed further. @ciarmcom @matthieuantoine

[matthieuantoine]

Did you declare MBED_CONF_lr1110_* constants somewhere in your code?

[kvkc97]

No I have not defined them. I followed the format of SX1272 Radio object to declare the class and radio object for LR1110. The MBED_CONF_SX1272_ variables are not defined in the corresponding libraries. So I could not figure out where to define them.

[0xc0170]

This is specific driver to only one family of targets (stm32wb) ? This can't be made generic to be reused?

@ARMmbed/team-st-mcd Please review

[0xc0170]

is this component only for stm32wbxx devices as it uses specific headers from the drivers ?

[jeromecoutant]

I confirm :-)
no stm32xxx should be used I think...

[jeromecoutant]

No I have not defined them. I followed the format of SX1272 Radio object to declare the class and radio object for LR1110. The MBED_CONF_SX1272_ variables are not defined in the corresponding libraries. So I could not figure out where to define them.

MBED_CONF_xxx are set thanks to json lib configuration
and I couldn't see any json in your patch

[ciarmcom]

This pull request has automatically been marked as stale because it has had no recent activity. @kvkc97, please carry out any necessary work to get the changes merged. Thank you for your contributions.

[0xc0170]

@kvkc97 What's the state of this, there is a merge commit (please rebase) ?

[kvkc97]

The issue is not solved. I have created a latest repo in the below link.
https://github.com/kvkc97/mbed-os-example-lorawan-lr1110
Since I could not attach the mbed-os library and the changes, i is attached in the below link.
https://github.com/kvkc97/mbed-os

[0xc0170]

@kvkc97 I am closing this pull request as it has been stale for weeks. If you need any assistance, please use forum to ask questions or comment here with details.
