Description
It is not possible to bring focus to hyperlinks created using rich-text-block. It is a blocking experience for the screen reader user.
This PR also fixes double focus on Date/Time pickers and Switch input in Android.
Fix
(Have raised an issue with React native: facebook/react-native#32004, this fix is until RN resolves it).
Rich text block uses nested components, which are internally concatenated onto a single - Spannable in Android and NSAttributableString in iOS. However, the information about links is left out from an accessibility point of view.
To fix this, we create empty, invisible text components and place them where the hyperlink is supposed to be. We only have information about the position of each line and what text it contains, and not the position of the individual text. So, we create containers on lines that contain the hyperlink text. A similar approach is used in WhatsApp (known for good accessibility practices).
The focus order goes like this:
This is not the best fix if the same line contains two different links, but I think that will be a very small fraction of use cases and anyways it seems like the best we can do.
Validation
Can we be verified using the accessibility.json payload.
Have verified on an Adaptive card with hyperlinks (rich text block).

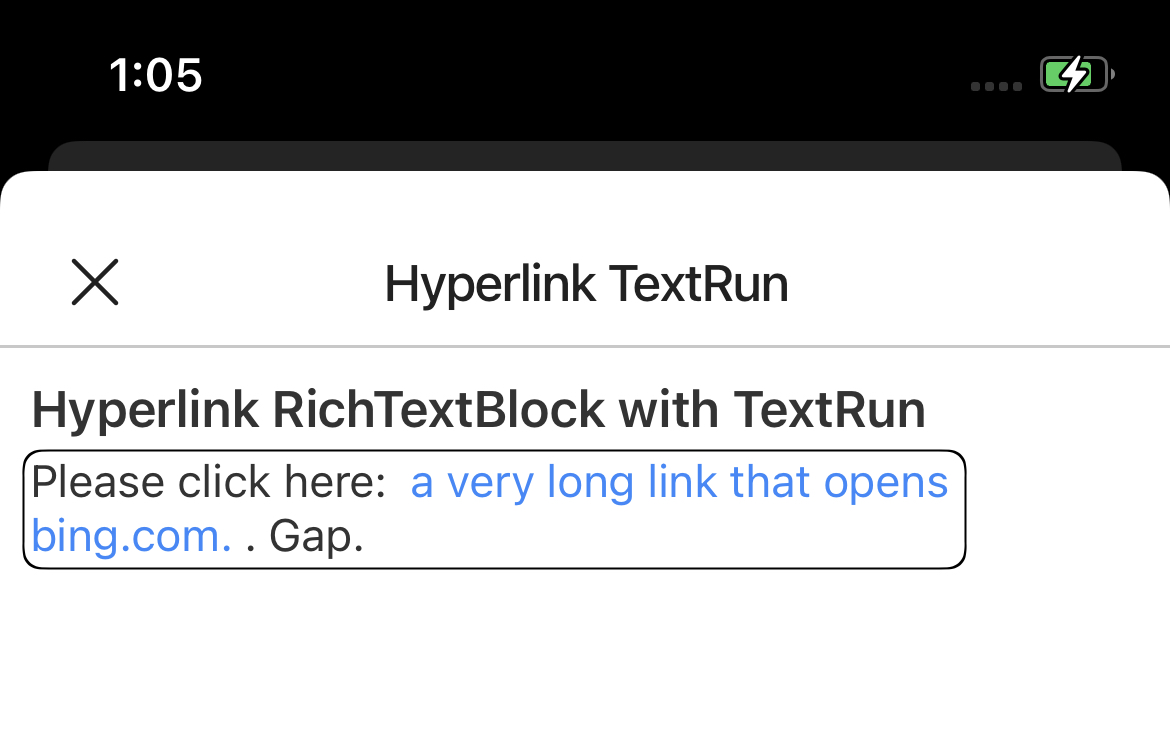

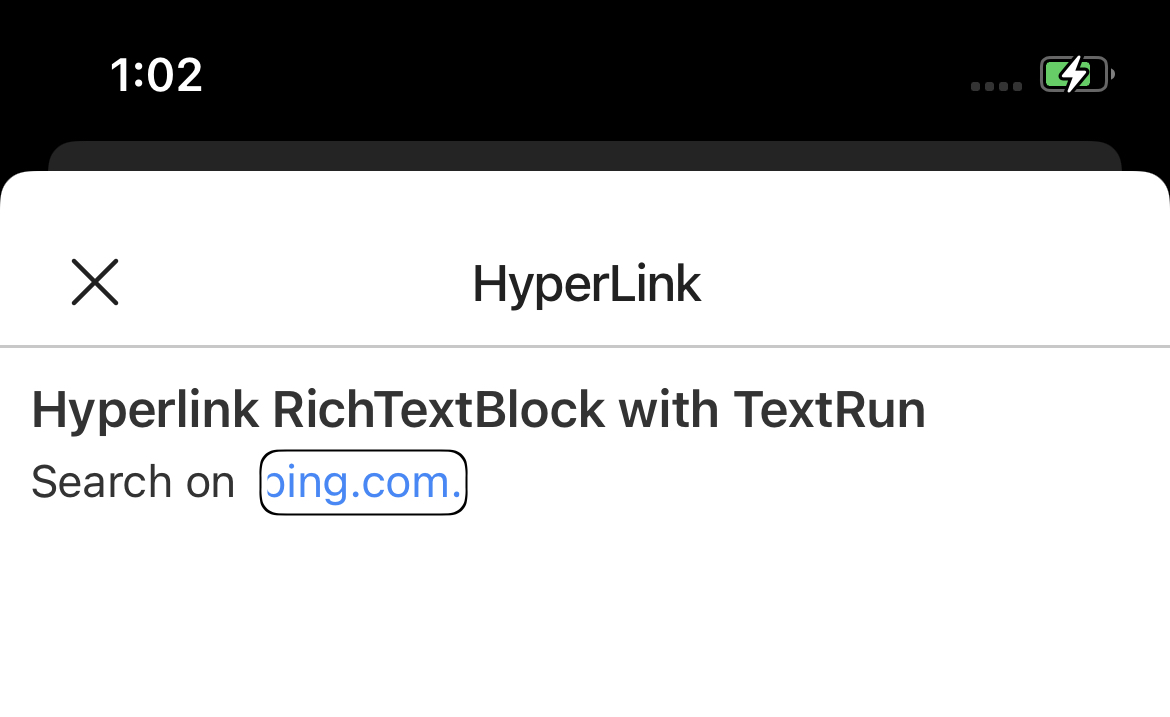

Screenshots (showing focus order on single line and multi-line spanning links)
