Distributed Load Balancer

Developed a distributed load balancer using a Flask web application integrated with Redis on WSL, facilitating dynamic task scheduling across multiple server controllers.

---

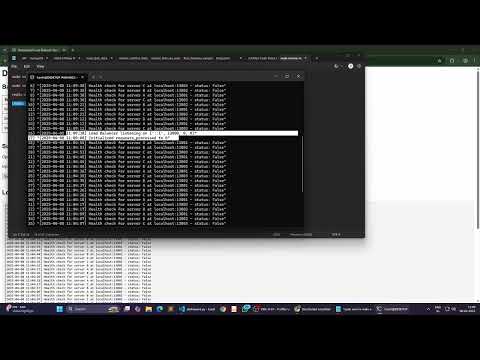

💻 Demo Video on YouTube

• ▶️ YouTube Walkthrough:


  Click to watch me walk through each feature!

---

Table of Contents

• Overview
• Features
• Prerequisites
• Installation and Setup
  • 1. Setting Up WSL and VS Code
  • 2. Installing Docker in WSL
  • 3. Installing Redis in WSL
  • 4. Updating WSL Configuration
  • 5. Cloning the Repository
  • 6. Installing Python Dependencies
  • 7. Running the Services
• Monitoring and Logs
• Project Structure
• Troubleshooting
• License

Overview

This project implements a distributed load balancer that dynamically schedules tasks across three server controllers. The system leverages:

• Flask Web Application: Offers a real-time Windows dashboard that displays up to 50 logs stored in Redis and provides start/stop controls for individual backend servers.
• Redis for Centralized Logging: Stores all logs and facilitates real-time monitoring.
• Round-Robin Queue: Distributes operations (prime checking, palindrome validation, reverse computation, Fibonacci calculation, and word count) evenly across servers.
• Automated Health Checks: Every second, the system checks server performance to ensure high availability and resilience.

Features

• Distributed Scheduling: Dynamically assigns tasks among multiple backend servers.
• Real-Time Monitoring: Visualizes the latest 50 log entries from Redis in the Windows dashboard.
• Dynamic Control: Start or stop individual backend servers through the dashboard UI.
• Periodic Health Checks: Continuously monitors server performance with automated checks.
• Centralized Logging: Uses Redis to manage logs for streamlined real-time data tracking.

Prerequisites

• Windows 10/11 with WSL
• Visual Studio Code (VS Code)
• Docker (installed on WSL)
• Python 3.x

Installation and Setup

1. Setting Up WSL and VS Code

• Install WSL:
  Follow the Microsoft WSL installation guide to enable and configure WSL.
• Install VS Code:
  Download and install Visual Studio Code.

2. Installing Docker in WSL

• Open your WSL terminal.
• Follow the official Docker installation guide for Ubuntu:
  Install Docker on Ubuntu.

3. Installing Redis in WSL

• In your WSL terminal, run:

    docker pull redis

  This downloads the latest Redis Docker image.

4. Updating WSL Configuration

• Open (or create) the /etc/wsl.conf file in your WSL environment and add:

  [network]
  generateResolvConf = false

• Save the file and restart WSL:

  wsl --shutdown

  Then launch WSL again.

5. Cloning the Repository

• In your WSL terminal or Windows Command Prompt, run:

  git init
  git pull https://github.com/Harsh971/Distributed-Load-Balancer.git

  This clones the project repository to your machine.

6. Installing Python Dependencies

• Open VS Code and navigate to your project folder.
• Open the integrated terminal in VS Code and run:

  pip install flask
  pip install redis
  pip install psutil

  These commands install the required libraries.

7. Running the Services

a. Start Redis in WSL

• In your WSL terminal, start Redis:

  sudo service redis-server start

• Verify the status:

  sudo service redis-server status

b. Start the Dashboard

• In VS Code's terminal, run:

  python dashboard.py

• This starts the Flask dashboard on http://127.0.0.1:5000/.

c. Start the Load Balancer

• Open a new terminal in VS Code or another instance and run:

  python load_balancer_async.py

• The load balancer listens on port 12000 and distributes tasks to the backend servers.

d. Access the Dashboard

• Open your browser and navigate to:

  http://127.0.0.1:5000/

• Use the dashboard to:
  • View server statuses
  • Start/stop individual servers
  • Submit operations for distributed processing
  • Monitor the latest 50 log entries from Redis

Monitoring and Logs

• Viewing Logs via Redis CLI:
  • Open your WSL terminal and run:

    redis-cli

  • In the Redis CLI, view logs by executing:

    LRANGE lb_logs 0 49

• Dashboard Logs:
  The dashboard UI displays the latest 50 log entries in real time.

Project Structure

• dashboard.py:
  Implements the Flask dashboard for monitoring and controlling servers.
• server.py:
  Contains backend server logic for executing operations.
• load_balancer_async.py:
  Manages task distribution to backend servers with a round-robin algorithm.
• client.py:
  A simple client to test the load balancer's operation.

Troubleshooting

• Port Binding Issues:
  If you see permission errors or port conflicts, run your terminal as an Administrator and verify with netstat:

  netstat -ano | findstr :<port>

• WSL Networking:
  Ensure your WSL IP remains current. Update any port proxy settings if the WSL IP changes.
• Dependency Issues:
  Confirm all Python dependencies are installed with:

  pip install flask redis psutil

• Service Startup:
  Run Redis, the dashboard, and the load balancer in separate terminals to ensure they start correctly.

License

This project is licensed under the MIT License. See the LICENSE file for more information.
