Unfolding not always possible

[DarkLite1]

Issue Description

Since the last update of the PowerShell Preview extension there is an issue with unfolding certain code blocks. When refactoring some code you will see that pressing CTRL + 0 will collapse all regions but sometimes it's no longer possible to expand the regions by clicking on the arrow in front of the collapsed code. When doing this nothing is unfolding and after 10 to 15 seconds it does unfold sometimes, but not always.

It's pretty hard to replicate this as it happens randomly but quite often. Usually I run a Pester test script to test a script and then when I come back the folding becomes an issue.

System Details

VSCode version:

1.43.0-insider d1c48c103cabc6e729f59787c0b9c86fb3d39e73 x64

VSCode extensions:

Angular.ng-template@0.900.14
dbaeumer.vscode-eslint@2.1.1
EditorConfig.EditorConfig@0.14.4
eg2.vscode-npm-script@0.3.11
esbenp.prettier-vscode@3.20.0
humao.rest-client@0.23.1
johnpapa.angular-essentials@9.0.1
johnpapa.Angular2@9.1.1
johnpapa.vscode-peacock@3.5.0
johnpapa.winteriscoming@1.3.0
mikestead.dotenv@1.0.1
ms-azuretools.vscode-cosmosdb@0.12.1
ms-vscode.azure-account@0.8.8
ms-vscode.powershell-preview@2020.2.0
msjsdiag.debugger-for-chrome@4.12.6
msjsdiag.debugger-for-edge@1.0.14
nrwl.angular-console@11.1.3
PKief.material-icon-theme@4.0.1
streetsidesoftware.code-spell-checker@1.8.0
xabikos.JavaScriptSnippets@1.7.2

PSES version: 2.0.0.0

PowerShell version:

Name Value

---

PSVersion 5.1.14393.3471
PSEdition Desktop
PSCompatibleVersions {1.0, 2.0, 3.0, 4.0...}
BuildVersion 10.0.14393.3471
CLRVersion 4.0.30319.42000
WSManStackVersion 3.0
PSRemotingProtocolVersion 2.3
SerializationVersion 1.1.0.1

[rjmholt]

@DarkLite1 is there anything in the logs suggesting an error?

[TylerLeonhardt]

Also a sample script that you've seen this with would be very helpful.

[DarkLite1]

I knew this question was coming ;) It's just very hard to consistently reproduce, but it happens quite often as in every 2 times after refactoring code.

I've add some test code in attachment. When both files are open and you are in the file ``Set permissions.Tests.ps1and pressF5` to execute it, everything goes fine. Than you refactor something in the production file or the test file, press `CTRL + 0` or try to unfold a specific section and it will fail 1 out of 3 times. What's also not working is formatting code after refactoring, copy/pasting a pester `it` clause for example. When you do that and press `ALT + CTRL + F` nothing is happening for a while.

I hope you guys (or girls) see something I can't see. Thanks anyhow for looking into this and sorry for not being able to be more precise.

Test.zip

[DarkLite1]

Figured out how to reproduce this:

1. Open the file Testie.ps1 in attachment
2. Collapse all by using CTRL + K and CTRL + 0
3. Open the top comment section of the file and add some random text in the comments or simply change the e-mail address in the last line AUTHOR SomeoneElse@ms.com
4. Try to click on the arrow before Process{ to unfold it
   Notice that unfolding that section is impossible

Testie.zip

[ili101]

I can confirm this is something that started in the last release (preview@2020.2.0).
But it's not an unfolding problem, it's everything the extension do hang for a long time.

To reproduce do the steps @DarkLite1 provided in his last post.
Add to step 4 more things like F8 on some line and hover over a variable to get the intelligence tooltip.
The unfold will not work, the F8 will not execute and the tooltip will say "Loading..."
Then wait for ~1 minute, it will suddenly unfold, Run the F8 and show the tooltip info.

BTW is 2020.3.0 already on the way? Or can this be fix before that?

[rjmholt]

Does it work if you go into the console and press Ctrl+C?

[ili101]

Does it work if you go into the console and press

Ctrl+C doesn't seems to effect this.

[rjmholt]

@DarkLite1 could you post your example as text?

[ghost]

I can confirm this. My observation is that extension spends a lot of time to analyze PS Script Analyzer along with my customized settings for it.

[rjmholt]

My observation is that extension spends a lot of time to analyze PS Script Analyzer along with my customized settings for it.

Can you expand on this? How did you observe this? Does it seem to be interacting with folding?

[ghost]

@rjmholt It's simple:

1. Launch VSCode
2. Load ps1 script which has functions/foldable regions
3. Immediately start clicking multiple times at the fold 'arrow', folding/unfolding is not possible
4. In the background, Powershell interactive console is starting and with it, PSSctiptAnalyzer starts to analyze code
5. When PSSctiptAnalyzer display list of problems at "Problems" tab, folding/unfolding is possible again
   Hope that this helps.

[rjmholt]

When PSSctiptAnalyzer display list of problems at "Problems" tab, folding/unfolding is possible again

It sounds a bit like the folding just isn't ready because the extension is still starting.

If you edit a script, does folding then take a while again?

[ili101]

I see 2020.3.0 stable is out (you probably should also update the preview extension to the same version as stable so everyone that on it will also be on 2020.3.0 and not stay behind)

Tested on it and it looks like it still happening but the freezes is shorter.
I can reproduce if I open a network folder with a lot of powershell files and do the same test, but locally or opening a network folder without many files it's almost unnoticeable.
Is something in PSSctiptAnalyzer maybe scans the entire open folder on every change?

[rjmholt]

(you probably should also update the preview extension to the same version as stable so everyone that on it will also be on 2020.3.0 and not stay behind

Releasing takes a little while and we all work on several things, so we'll probably do a preview release in the coming week or so. Not our preferred choice, but it will only happen once since there will be no more fork.

I can reproduce if I open a network folder with a lot of powershell files and do the same test

Ok so it sounds like a file performance issue where we're looking through too many files. Are these files PowerShell files?

Is something in PSSctiptAnalyzer maybe scans the entire open folder on every change?

With every change:

• The backend representation of the file is modified (in case you haven't saved it)
• PSSA runs
• Things like the reference code lens run

It's not really a simple question of cutting things out unfortunately, but we should be able to sift through and see where we're touching the file system.

We currently don't control how PSSA operates either and it does some PowerShell stuff that looks at modules.

We're investing in work to make PSSA easier to integrate though. But it's big work.

[SydneyhSmith]

Adding @glennsarti in case he has any thoughts considering he contributed the folding feature.
@TylerLeonhardt seems to remember that file filtering may have stopped working at some point, Glenn do you recall that?

[TylerLeonhardt]

My PR out will re-enable a feature Glenn added and allow anything set in the following settings to be automatically ignored when looking for symbols (used in folding and references):

files.exclude
search.exclude

[glennsarti]

Adding @glennsarti in case he has any thoughts considering he contributed the folding feature.

Unfolding is not dependant on the Language Server. That's all client side. As comment above, it can be a perf issue on generating the folding regions.

TylerLeonhardt seems to remember that file filtering may have stopped working at some point

IIRC yeah that code didn't make to 2.0 and I didn't have time to migrate it as there was no unit testing running at the point * glares at Tyler and Rob *

However there should not be any reason for those two features to be related. Folding only happens for a specified file. There are no file traversals.
Ref - https://microsoft.github.io/language-server-protocol/specifications/specification-current/#textDocument_foldingRange

What may be happening is a thread locking issue or a single-threaded problem where the folding range request is blocked by a long running traversal operation?

[glennsarti]

Although I don't understand this: Seems odd to create a logger on the Folding Handler in an unrelated class.

https://github.com/PowerShell/PowerShellEditorServices/blob/c005ef7c4a695a484e171962feaaeb0ba527311f/src/PowerShellEditorServices/Services/TextDocument/Handlers/CodeLensHandlers.cs#L35

https://github.com/PowerShell/PowerShellEditorServices/blob/c005ef7c4a695a484e171962feaaeb0ba527311f/src/PowerShellEditorServices/Services/TextDocument/Handlers/DocumentSymbolHandler.cs#L36

[TylerLeonhardt]

Seems odd to create a logger on the Folding Handler in an unrelated class.

typos!

[TylerLeonhardt]

What may be happening is a thread locking issue or a single-threaded problem where the folding range request is blocked by a long running traversal operation?

Right. My guess is that since Folding and references both needs symbols to be calculated first, the Folding lag is due to that.

[glennsarti]

Seems odd to create a logger on the Folding Handler in an unrelated class.

typos!

I made a typo or you did?

[DarkLite1]

It sounds like this is a performance issue caused by looking at too many files, especially on network shares. We'll do our best to make this an area of investigation. I'm currently busy working in other areas though (one being improving PSSA), so I can't give a good time frame.

Thank you for the reply. But just to be clear, there are no network shares open in my workspace. All files are on the local drive. Also, this issue is only appearing since the upgrading to the latest PowerShell preview extension.

[ili101]

I have spent an hour trying to pinpoint the cause of the problem, it looks like the number of files in your VSCode open folder dose not effect the problem but the number of subfolders do.
@DarkLite1 how many subfolders do you have?
I can see that with 10,000 subfolders locally it freezes for ~30 seconds and on a network share with 3000 subfolders it freezes for a minute +

[TylerLeonhardt]

This is very good data @ili101. Thank you for taking the time to provide this

[DarkLite1]

@ili101 thanks for your help in figuring this out, Really appreciate it.

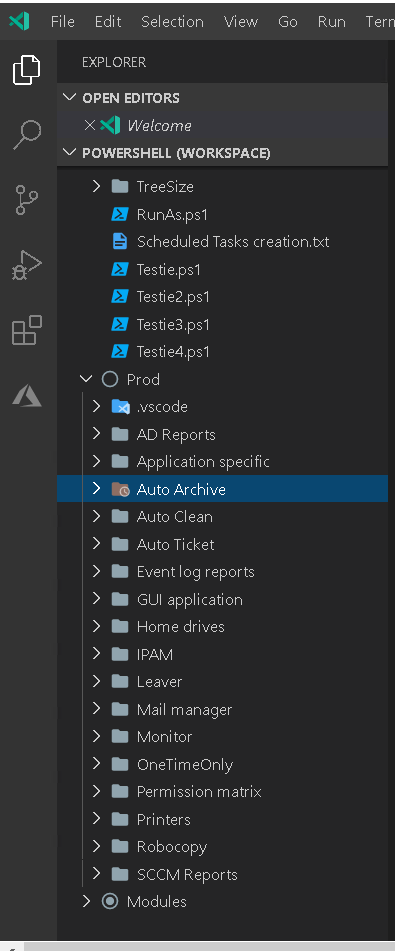

In my workspace there are 3 open folders, the maximum depth of these folders is usually Prod\scriptName\scriptFile.ps1 and Prod\scriptName\scriptFile.tests.ps1. So the levels are not very deep,, same logic for the modules folder. All these files and folders, as said, are to be found on a local drive on the server, no network files present. Modules are on the C:\ drive and the others are on the T:\ drive.

@(
    'T:\Test\bob\PowerShell',
    'T:\Prod',
    'C:\Program Files\WindowsPowerShell\Modules'

).ForEach({
        $Folder = Get-ChildItem -Recurse -Path $_ -Directory
        $File = Get-ChildItem -Recurse -Path $_ -File

        [PSCustomObject]@{Path = $_; Folders = $Folder.Count; Files = $File.Count}
}) | fl

Returns:

Path    : T:\Test\bob\PowerShell
Folders : 8
Files   : 36

Path    : T:\Prod
Folders : 109
Files   : 355

Path    : C:\Program Files\WindowsPowerShell\Modules
Folders : 192
Files   : 1298

[ili101]

I made something to help reproduce.
I don't know if this the same source of the problem that @DarkLite1 have as he works locally and with not that meany folders but it could be the same thing maybe amplified by some factor.

1. Download this GenerateExample2518.ps1.txt, remove the ".txt" and save to a folder where you want the test to be created.
2. Run with PowerShell:

   It will generate a test folder with a test file and subfolders.
3. Open the "Test2518" folder in VSCode.
4. Open "TestMe.ps1"
5. Test as before by changing stuff then folding, hovering to get popup, F8 etc.

Locally on SSD it freezes for me from 5-30 seconds.
On network share it freezes for longer then I was willing to wait (:
So it happens when you have many subfolders and only if you have a function defined in your script.

Hope this helps

[TylerLeonhardt]

Can you all give the PowerShell Preview extension a try? We just did a release of it.

Don't forget to disable the regular PowerShell extension for VS Code when you enable the PowerShell Preview extension for VS Code

[ghost]

@TylerLeonhardt Tested ili101 example, the issue still happens - for a short moment, folding and unfolding is not possible.

[DarkLite1]

After some testing here are my findings:

• Doing my own test with the Testie.ps1 file that consistently failed for me and @ili101 is fixed in the extension 2020.3.0.
• Doing @ili101 's test with his folder and sub folders is also fixed.
• Doing @ili101 's test with more sub folders, like say 1..100000 fails big time. Folding and unfolding is just stalled/frozen.

So in short, @ili101 is correct. It all depends on the quantity of sub folders you have.

Keep in mind that when there are plenty of sub folders like for modules, or if you share PowerShell files with node.js files, where node can have a bazillion node_modules sub folders the problem is big time. That's why I believe my problem is now gone because I split the workspaces one for node and one for PowerShell.This way there are less sub folders in the PowerShell vs-code workspace which seemed to fix my findings.

[ili101]

Just tested on v2020.4.0 from yesterday. This version have nice performance optimizations but the core problem is still there.
I don't understand the need to iterate over all of the sub folders (files not effecting this) on every edit to the file and strangely only when you have function Test-TheBug { } in the file, if it have a legitimate purpose ok but I don't see why will it do that?

[SydneyhSmith]

@ili101 thanks for your response could you please open a new issue with an ask for better performance for finding references of functions..thanks!

[DarkLite1]

@SydneyhSmith why is a new ticket needed when the core problem is still there?

[TylerLeonhardt]

That's fair @DarkLite1.

@ili101 @DarkLite1 could you try disabling CodeLens to see if that helps at all:

"editor.codeLens": true

[ili101]

Hi @TylerLeonhardt
With "editor.codeLens": false there is no issue so it's something in there (At last I know I can tern it off when opening this big folder now)

Edit: With the 10,000 folders it locks for a minute on every edit.
I then change the test to create 10,000 ps1 files with "Test-TheBug" instead of the folders, with the files it locks for a minute once at load, detects all 10,000 references and then works without any problems.

So with files it locks once to scans the references then manage to update the references on the fly without impacting performance, but with the folders it locks on every change continually

[TylerLeonhardt]

This is because CodeLens triggers on every edit - vscode controls this.
And it recursively looking at the filesystem to generate references - we control this.

Some concerns:

• We don't know if something outside of VS Code put new files there that we haven't seen yet.
• If you change something in your current file, that could potentially change the reference count and would need it to be re-computed.

There's room for improvement here for sure. We could use a combination of file system watchers and caches to possibly increase perf here.

I wonder if this is why TypeScript doesn't have CodeLens on by default 🤔too many node_modules folders... and a very computational operation...

[DarkLite1]

I encountered another issue that might be related to this. When I rename a folder in vs code and there are lots of node.js projects in those folders the renaming cannot happen. The system just keeps on waiting and errors out.

Back to this topic, it might be related as I am using the PowerShell Preview extension. I think a file watcher would be a really great idea. It's then only fired when a single file is CRUD. That might fix the issue.

[TylerLeonhardt]

But keep in mind, that'll be tricky to implement because we can't keep too much in memory otherwise... #1613

[TylerLeonhardt]

so I don't think we're cancelling CodeLens requests at the moment (VS Code tells us to cancel them, but we need to implement what cancelling means)... Can you attach the logs here (and the payload logs!).

I want to see how many times VS Code says to cancel CodeLens requests. If there are a lot, then we can implement cancelation (by doing something with the cancellation token here) that will help with performance.

[ghost]

This issue was closed automatically as repro info was indicated as needed, but there has been no activity in over a week. Please feel free to reopen with any available information!
