[AIP-34] Rewrite SubDagOperator

[xinbinhuang]

#8078 cc: @dimberman @kaxil

Hi guys,

Sorry for the long wait. It took me a while to figure out where to properly put the changes and I am also occupied by other things. Anyway, here is a draft PR, for the proposed rewrite of the SubDagOperator. I will write out more details on the AIP tonight. But here is the gist.

There are 3 main changes:

1. Rewrite DagBag.bag_dag logic to attach tasks of the subdags to the root dag during dag file parsing.

Here is the overall process:

1. it loops over the root dag's tasks
2. When it meets a SubDagOperator, it unpacks the SubDag, and reattach all the tasks to the root dag. This unpacking process will traverse down to the SubDag's tasks.

Here is the detailed unpacking process:

1. Remove the SubDagOperator node from the root_dag
2. loop over SubDag's task to re-attach them to the root_dag, and add current_group and parent_group metadata (see item 3 below).
3. Remove SubDagOperator task_id from upstream_tasks and add subdag.roots to the upstream tasks; similarily for downstream_tasks
4. Traverse down to the subdag,. It will do nothing if there is no nested subdags, and otherwise keep unpacking.

2. Rewrite the SubDagOperator
   • I remove most of the methods as they are not relevant anymore.
   • Change the function signature to require a dag_factory function, and it will automatically pass the task_id as the first positional argument of the dag_factory function. It's cleaner because we don't need to match up the SubDagOperator.task_id with the subdag.dag_id manually.
3. Add a TaskGroup model (current_group/current_dag and parent_group/parent_dag) that is used for grouping related tasks. This is used to replace the concept of SubDag to group tasks together and render the visual grouping effect in the UI.
   • When I was creating this, I feel like it does not need to be used for SubDag specifically, and we can actually group arbitrary tasks to allow generic metadata operation (e.g. monitor TIs of a task group, stop/retry a group of task etc)

Here is a example subdag dag I used to test out the new SubDag Operator. It can successfully unpack the subdags.

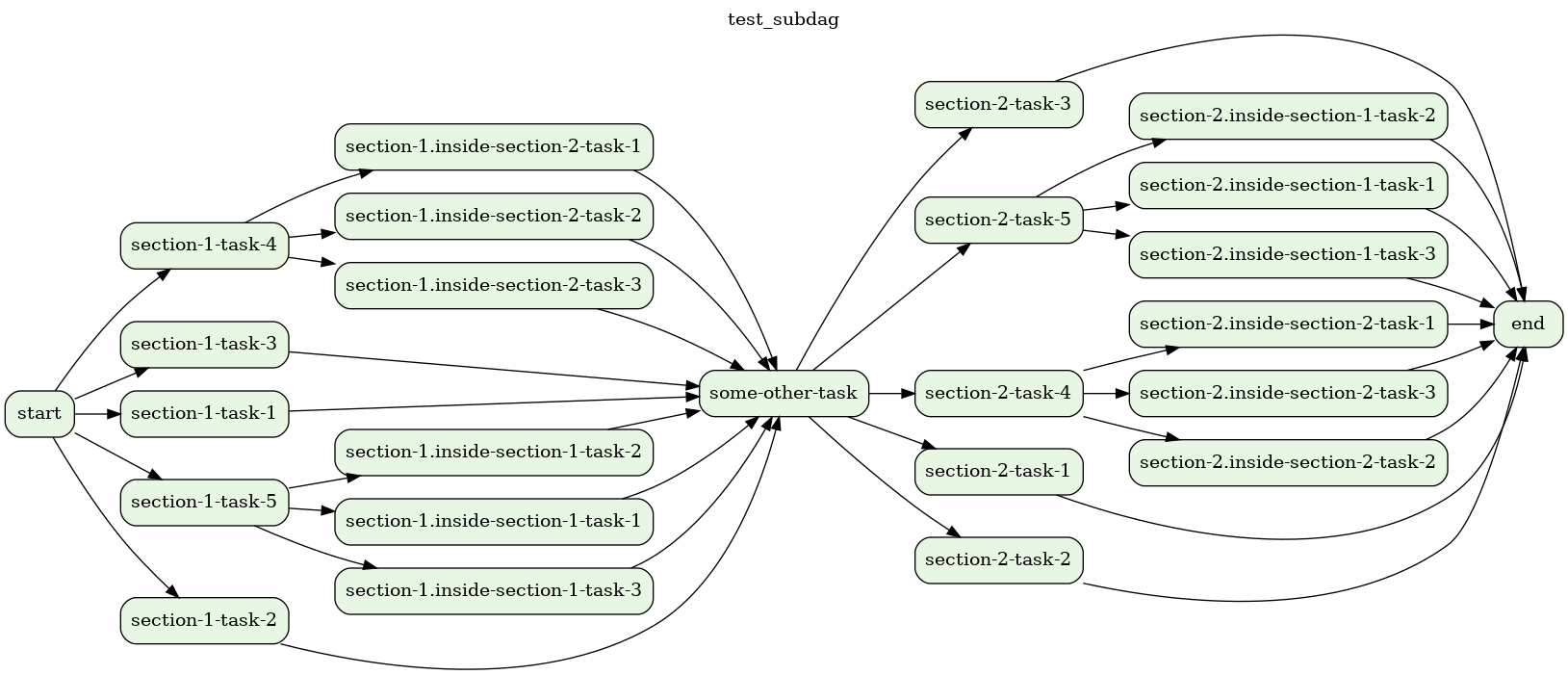

This is the comparison on the generated graph:

Old:

New:

Also, it seems that there are a lot of SubDag related handling logic in the codebase, and it means that if we decide to go forward with the rewrite. We probably will need to clean up a lot of code. I believe it's a good thing?

grep -r subdag airflow | wc -l
162

Here are the things that I think need to be done:

• Update the UI to review this change
• Avoid task conflicts between root_dag and sub_dag. I am thinking to automatically concatenate the current_group=subdag.dag_id=subdag_operator.task_id, to the task_ids.
• DB Migration
• Clean up other subdag related logics from the codebase

I have not created any tests yet for it as I want to have some discussion first. Let me know your thought :)

Cheers,
Bin

---

Make sure to mark the boxes below before creating PR: [x]

• Description above provides context of the change
• Unit tests coverage for changes (not needed for documentation changes)
• Target Github ISSUE in description if exists
• Commits follow "How to write a good git commit message"
• Relevant documentation is updated including usage instructions.
• I will engage committers as explained in Contribution Workflow Example.

---

In case of fundamental code change, Airflow Improvement Proposal (AIP) is needed.
In case of a new dependency, check compliance with the ASF 3rd Party License Policy.
In case of backwards incompatible changes please leave a note in UPDATING.md.
Read the Pull Request Guidelines for more information.

[ashb]

With Serialized dag storing everything already I'm not sure if this needs it's own model or not.

[xinbinhuang]

Hi Ash,

I am not familiar with the code on Serialized dag. Can you point me to the code that you are referring to? I will take a look at it
