[SPARK-36598][SHUFFLE][SQL] Avoid the memory leak of Guava cache by add maximumWeight limit #33848

LuciferYang · 2021-08-26T08:38:26Z

What changes were proposed in this pull request?

The Guava Cache use in Spark with weight eviction mechanism has risk of memory leak because LocalCache weight eviction does not work when maxSegmentWeight is >= Int.MAX_VALUE Guava#1761

The main change of this pr is add the maximumWeight value limit for Guava cache instances that use the weight eviction strategy, include:

spark.shuffle.service.index.cache.size should <= 8g bytes
spark.shuffle.push.server.mergedIndexCacheSize should <= 8g bytes
spark.sql.hive.filesourcePartitionFileCacheSize should <= 256g

Why are the changes needed?

Avoiding the weight eviction bug of Guava Cache(Guava#1761)

Before this pr, the following test will fail, some cache entries was not evicted as expected and memory leak will occur

  @Test
  public void testShuffleIndexCacheEvictionBehavior() throws IOException, ExecutionException {
    Map<String, String> config = new HashMap<>();
    String indexCacheSize = "8192m";
    config.put("spark.shuffle.service.index.cache.size", indexCacheSize);
    TransportConf transportConf = new TransportConf("shuffle", new MapConfigProvider(config));
    ExternalShuffleBlockResolver resolver = new ExternalShuffleBlockResolver(transportConf, null);
    resolver.registerExecutor("app0", "exec0", dataContext.createExecutorInfo(SORT_MANAGER));

    // need change access scope of shuffleIndexCache
    LoadingCache<File, ShuffleIndexInformation> shuffleIndexCache = resolver.shuffleIndexCache;

    // 8g -> 8589934592 bytes
    long maximumWeight = JavaUtils.byteStringAsBytes(indexCacheSize);
    int unitSize = 1048575;
    // CacheBuilder.DEFAULT_CONCURRENCY_LEVEL
    int concurrencyLevel = 4;
    int totalGetCount = 16384;
    // maxCacheCount is 8192
    long maxCacheCount = maximumWeight / concurrencyLevel / unitSize * concurrencyLevel;
    for (int i = 0; i < totalGetCount; i++) {
      File indexFile = new File("shuffle_" + 0 + "_" + i + "_0.index");
      ShuffleIndexInformation indexInfo = Mockito.mock(ShuffleIndexInformation.class);
      Mockito.when(indexInfo.getSize()).thenReturn(unitSize);
      shuffleIndexCache.get(indexFile, () -> indexInfo);
    }

    long totalWeight =
      shuffleIndexCache.asMap().values().stream().mapToLong(ShuffleIndexInformation::getSize).sum();
    long size = shuffleIndexCache.size();
    // Both of the following assertions fail
    Assert.assertTrue(size <= maxCacheCount);
    Assert.assertTrue(totalWeight < maximumWeight);
  }

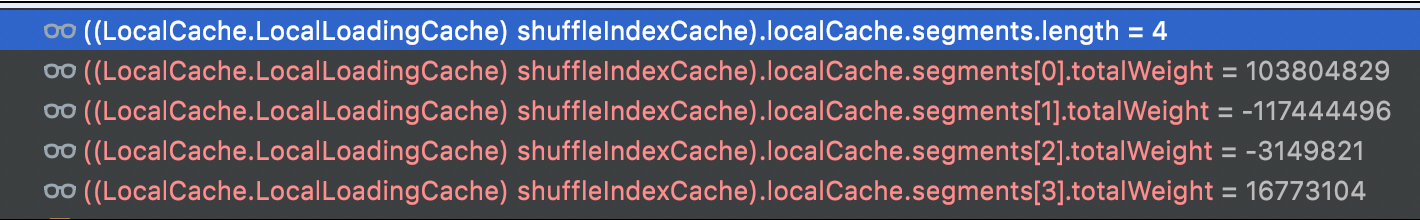

And through the debug view, there are 2 segments.totalWeight overflowed.

After this pr, the above issue are avoided through the maximum limit because maximumWeight can no longer be greater than 2g.

Does this PR introduce any user-facing change?

The following 3 configs add the maximum limit:

spark.shuffle.service.index.cache.size should <= 8g bytes
spark.shuffle.push.server.mergedIndexCacheSize should <= 8g bytes
spark.sql.hive.filesourcePartitionFileCacheSize should <= 256g

How was this patch tested?

Pass GA or Jenkins Tests.

LuciferYang · 2021-08-26T08:39:50Z

...huffle/src/test/java/org/apache/spark/network/shuffle/ExternalShuffleBlockResolverSuite.java

+      File indexFile = new File("shuffle_" + 0 + "_" + i + "_0.index");
+      ShuffleIndexInformation indexInfo = Mockito.mock(ShuffleIndexInformation.class);
+      Mockito.when(indexInfo.getSize()).thenReturn(unitSize);
+      shuffleIndexCache.get(indexFile, () -> indexInfo);


Not easy to mock the init behavior of ShuffleIndexInformation, so there re-write CacheLoader.

LuciferYang · 2021-08-26T08:42:43Z

...huffle/src/test/java/org/apache/spark/network/shuffle/ExternalShuffleBlockResolverSuite.java

+    try{
+      Assert.assertTrue(size <= maxCacheCount);
+      Assert.assertTrue(totalWeight < maximumWeight);
+      fail("The tests code should not enter this line now.");


Should enter line 153, but it won't now

LuciferYang · 2021-08-26T08:44:32Z

from the debug view we found that there are 2 segment.totalWeight is a negative value:

LuciferYang · 2021-08-26T08:46:03Z

Maybe there the following ways can solve the problem:

Upgrade the Guava version can fix this bug
Or we can avoid this issue by limiting the configuration related to maximumWeight to the security range

I will try to upgrade Guava version first after 98458fd build successful

Do you have any better suggestions ? @HyukjinKwon @dongjoon-hyun @srowen

LuciferYang · 2021-08-26T08:48:59Z

...huffle/src/test/java/org/apache/spark/network/shuffle/ExternalShuffleBlockResolverSuite.java

+  public void testShuffleIndexCacheEvictionBehavior() throws IOException, ExecutionException {
+    Map<String, String> config = new HashMap<>();
+    String indexCacheSize = "8192m";
+    config.put("spark.shuffle.service.index.cache.size", indexCacheSize);


configure spark.shuffle.service.index.cache.size with 8g and the default concurrencyLevel is 4, so the maxSegmentWeight Local Cache is Int.MAX_VALUE, these condition will trigger the bug

SparkQA · 2021-08-26T09:48:08Z

Kubernetes integration test unable to build dist.

exiting with code: 1
URL: https://amplab.cs.berkeley.edu/jenkins/job/SparkPullRequestBuilder-K8s/47303/

SparkQA · 2021-08-26T11:31:12Z

Test build #142802 has finished for PR 33848 at commit 98458fd.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

LuciferYang · 2021-08-26T13:25:44Z

8ec7525 upgrade Guava to 30.1.1-jre to fix LocalCache weight eviction does not work when maxSegmentWeight is >= Int.MAX_VALUE issue and change UT to check the eviction behavior

LuciferYang · 2021-08-26T14:25:38Z

dev/deps/spark-deps-hadoop-3.2-hive-2.3

 datanucleus-rdbms/4.1.19//datanucleus-rdbms-4.1.19.jar
 derby/10.14.2.0//derby-10.14.2.0.jar
 dropwizard-metrics-hadoop-metrics2-reporter/0.1.2//dropwizard-metrics-hadoop-metrics2-reporter-0.1.2.jar
+error_prone_annotations/2.5.1//error_prone_annotations-2.5.1.jar


@HyukjinKwon @dongjoon-hyun @srowen It seems that upgrading the Guava version can solve the problem, but it will also add additional dependencies. I'm not sure whether it is valuable

This new dep is fine, it's ALv2 https://github.com/google/error-prone
yes the problem is that it can potentially interfere with other libs like Hadoop

Ya, I agree with @srowen 's comment.

If upgradingGuava version is not a good way, it seems that it is not easy to fix this potential bug. I have manually verified that Caffeine does not have this problem, but maybe we are not willing to accept it because #33784

So can we prevent users from using a problematic config by adding some config value check?

@srowen @dongjoon-hyun
As comments above:

Upgrading the Guava version will have potential interfere with other libs like Hadoop

Use Caffeine will introduce new dependent libs. (Revert "[SPARK-34309][BUILD][CORE][SQL][K8S] Use Caffeine instead of Guava Cache" #33784)

Therefore, I added a maximum limit to the related configurations to avoid the potential bug of Guava Cache Guava#1761

SparkQA · 2021-08-26T14:35:24Z

Kubernetes integration test unable to build dist.

exiting with code: 1
URL: https://amplab.cs.berkeley.edu/jenkins/job/SparkPullRequestBuilder-K8s/47320/

LuciferYang · 2021-08-26T14:50:04Z

Through #30022 , I found that upgrading guava has some impact on hadoop-2.x, so I will revet the change of 8ec7525 and waiting for others advice

This reverts commit 8ec7525.

SparkQA · 2021-08-26T15:40:22Z

Kubernetes integration test unable to build dist.

exiting with code: 1
URL: https://amplab.cs.berkeley.edu/jenkins/job/SparkPullRequestBuilder-K8s/47321/

SparkQA · 2021-08-26T15:57:56Z

Test build #142818 has finished for PR 33848 at commit 8ec7525.

This patch fails Spark unit tests.
This patch merges cleanly.
This patch adds no public classes.

SparkQA · 2021-08-26T17:26:04Z

Test build #142819 has finished for PR 33848 at commit 6c4b06d.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

SparkQA · 2021-08-31T13:53:53Z

Kubernetes integration test starting
URL: https://amplab.cs.berkeley.edu/jenkins/job/SparkPullRequestBuilder-K8s/47391/

SparkQA · 2021-08-31T14:48:37Z

Kubernetes integration test status failure
URL: https://amplab.cs.berkeley.edu/jenkins/job/SparkPullRequestBuilder-K8s/47391/

SparkQA · 2021-08-31T15:37:48Z

Test build #142888 has finished for PR 33848 at commit 0fade2a.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

SparkQA · 2021-09-03T04:02:56Z

Kubernetes integration test starting
URL: https://amplab.cs.berkeley.edu/jenkins/job/SparkPullRequestBuilder-K8s/47456/

SparkQA · 2021-09-03T04:12:12Z

Kubernetes integration test status failure
URL: https://amplab.cs.berkeley.edu/jenkins/job/SparkPullRequestBuilder-K8s/47456/

SparkQA · 2021-09-03T05:22:58Z

Kubernetes integration test starting
URL: https://amplab.cs.berkeley.edu/jenkins/job/SparkPullRequestBuilder-K8s/47458/

SparkQA · 2021-09-03T05:54:21Z

Test build #142956 has finished for PR 33848 at commit 3b965c2.

This patch fails SparkR unit tests.
This patch merges cleanly.
This patch adds no public classes.

SparkQA · 2021-09-03T06:07:08Z

Kubernetes integration test status failure
URL: https://amplab.cs.berkeley.edu/jenkins/job/SparkPullRequestBuilder-K8s/47458/

SparkQA · 2021-09-03T07:22:05Z

Test build #142960 has finished for PR 33848 at commit 5524c68.

This patch passes all tests.
This patch merges cleanly.
This patch adds the following public classes (experimental):
class TimestampNTZType(AtomicType, metaclass=DataTypeSingleton):
abstract class AbstractPodsAllocator
class ExecutorPodsAllocator(
case class GenerateExecID(podName: String) extends Serializable
case class Arguments(
class StatefulsetPodsAllocator(
case class UnresolvedDBObjectName(nameParts: Seq[String], isNamespace: Boolean) extends LeafNode
case class ResolvedDBObjectName(catalog: CatalogPlugin, nameParts: Seq[String]) extends LeafNode
trait SupportsPushDownCatalystFilters
class AvailableNowDataStreamWrapper(val delegate: SparkDataStream)
class AvailableNowMicroBatchStreamWrapper(delegate: MicroBatchStream)
class AvailableNowSourceWrapper(delegate: Source)
case class SingleBatchExecutor() extends TriggerExecutor
case class MultiBatchExecutor() extends TriggerExecutor
class HiveThriftServer2AppStatusStore(store: KVStore)

SparkQA · 2021-09-14T12:59:24Z

Kubernetes integration test starting
URL: https://amplab.cs.berkeley.edu/jenkins/job/SparkPullRequestBuilder-K8s/47759/

SparkQA · 2021-09-14T13:09:23Z

Kubernetes integration test status failure
URL: https://amplab.cs.berkeley.edu/jenkins/job/SparkPullRequestBuilder-K8s/47759/

SparkQA · 2021-09-14T14:05:19Z

Test build #143256 has finished for PR 33848 at commit f200546.

This patch fails Spark unit tests.
This patch merges cleanly.
This patch adds the following public classes (experimental):
public class NettyLogger
public final class LZ4Compressor
public final class LZ4Factory
public final class LZ4SafeDecompressor
class DatetimeNTZOps(DatetimeOps):
class DatetimeNTZConverter(object):
public final class AlwaysFalse extends Filter
public final class AlwaysTrue extends Filter
public final class And extends BinaryFilter
abstract class BinaryComparison extends Filter
abstract class BinaryFilter extends Filter
public final class EqualNullSafe extends BinaryComparison
public final class EqualTo extends BinaryComparison
public abstract class Filter implements Expression
public final class GreaterThan extends BinaryComparison
public final class GreaterThanOrEqual extends BinaryComparison
public final class In extends Filter
public final class IsNotNull extends Filter
public final class IsNull extends Filter
public final class LessThan extends BinaryComparison
public final class LessThanOrEqual extends BinaryComparison
public final class Not extends Filter
public final class Or extends BinaryFilter
public final class StringContains extends StringPredicate
public final class StringEndsWith extends StringPredicate
abstract class StringPredicate extends Filter
public final class StringStartsWith extends StringPredicate
case class CastTimestampNTZToLong(child: Expression) extends TimestampToLongBase
case class ILike(
class SQLOpenHashSet[@specialized(Long, Int, Double, Float) T: ClassTag](
case class OptimizeSkewedJoin(
case class SkewJoinAwareCost(
case class SimpleCostEvaluator(forceOptimizeSkewedJoin: Boolean) extends CostEvaluator
case class EnsureRequirements(

github-actions · 2021-12-24T00:11:32Z

We're closing this PR because it hasn't been updated in a while. This isn't a judgement on the merit of the PR in any way. It's just a way of keeping the PR queue manageable.
If you'd like to revive this PR, please reopen it and ask a committer to remove the Stale tag!

add Guava cache bad case

98458fd

github-actions bot added the CORE label Aug 26, 2021

LuciferYang commented Aug 26, 2021

View reviewed changes

LuciferYang marked this pull request as draft August 26, 2021 08:43

LuciferYang commented Aug 26, 2021

View reviewed changes

LuciferYang changed the title ~~[WIP][SPARK-36598][SHUFFLE][SQL] Fix memory leak in cache use weight eviction mechanism~~ [WIP][SPARK-36598][SHUFFLE][SQL] Fix memory leak when cache use weight eviction mechanism Aug 26, 2021

try to upgrade guava version

8ec7525

github-actions bot added the BUILD label Aug 26, 2021

LuciferYang commented Aug 26, 2021

View reviewed changes

Revert "try to upgrade guava version"

6c4b06d

This reverts commit 8ec7525.

add value check

0fade2a

github-actions bot added the SQL label Aug 31, 2021

LuciferYang changed the title ~~[WIP][SPARK-36598][SHUFFLE][SQL] Fix memory leak when cache use weight eviction mechanism~~ [SPARK-36598][SHUFFLE][SQL] Avoid the potential memory leak of Guava cache by add maximumWeight limit Aug 31, 2021

LuciferYang changed the title ~~[SPARK-36598][SHUFFLE][SQL] Avoid the potential memory leak of Guava cache by add maximumWeight limit~~ [SPARK-36598][SHUFFLE][SQL] Avoid the memory leak of Guava cache by add maximumWeight limit Aug 31, 2021

LuciferYang marked this pull request as ready for review August 31, 2021 13:05

fix Line is longer than 100 characters

3b965c2

Merge branch 'upmaster' into SPARK-36598

5524c68

Merge branch 'upmaster' into SPARK-36598

f200546

github-actions bot added the Stale label Dec 24, 2021

github-actions bot closed this Dec 25, 2021

LuciferYang deleted the SPARK-36598 branch October 22, 2023 07:43

[SPARK-36598][SHUFFLE][SQL] Avoid the memory leak of Guava cache by add maximumWeight limit #33848

[SPARK-36598][SHUFFLE][SQL] Avoid the memory leak of Guava cache by add maximumWeight limit #33848

Uh oh!

Conversation

LuciferYang commented Aug 26, 2021 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

What changes were proposed in this pull request?

Why are the changes needed?

Does this PR introduce any user-facing change?

How was this patch tested?

Uh oh!

LuciferYang Aug 26, 2021

Choose a reason for hiding this comment

Uh oh!

LuciferYang Aug 26, 2021

Choose a reason for hiding this comment

Uh oh!

LuciferYang commented Aug 26, 2021

Uh oh!

LuciferYang commented Aug 26, 2021 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

LuciferYang Aug 26, 2021

Choose a reason for hiding this comment

Uh oh!

SparkQA commented Aug 26, 2021

Uh oh!

SparkQA commented Aug 26, 2021

Uh oh!

LuciferYang commented Aug 26, 2021 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

LuciferYang Aug 26, 2021 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

srowen Aug 26, 2021

Choose a reason for hiding this comment

Uh oh!

dongjoon-hyun Aug 27, 2021

Choose a reason for hiding this comment

Uh oh!

LuciferYang Aug 30, 2021 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

LuciferYang Sep 3, 2021 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

SparkQA commented Aug 26, 2021

Uh oh!

LuciferYang commented Aug 26, 2021 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

SparkQA commented Aug 26, 2021

Uh oh!

SparkQA commented Aug 26, 2021

Uh oh!

SparkQA commented Aug 26, 2021

Uh oh!

SparkQA commented Aug 31, 2021

Uh oh!

SparkQA commented Aug 31, 2021

Uh oh!

SparkQA commented Aug 31, 2021

Uh oh!

SparkQA commented Sep 3, 2021

Uh oh!

SparkQA commented Sep 3, 2021

Uh oh!

SparkQA commented Sep 3, 2021

Uh oh!

SparkQA commented Sep 3, 2021

Uh oh!

SparkQA commented Sep 3, 2021

Uh oh!

SparkQA commented Sep 3, 2021

Uh oh!

SparkQA commented Sep 14, 2021

LuciferYang commented Aug 26, 2021 •

edited

Loading

LuciferYang commented Aug 26, 2021 •

edited

Loading

LuciferYang commented Aug 26, 2021 •

edited

Loading

LuciferYang Aug 26, 2021 •

edited

Loading

LuciferYang Aug 30, 2021 •

edited

Loading

LuciferYang Sep 3, 2021 •

edited

Loading

LuciferYang commented Aug 26, 2021 •

edited

Loading
