[SPARK-40677][CONNECT][FOLLOWUP] Refactor shade relocation/rename rules
#38162
Conversation
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Contributor
Author
|
Test first |
Contributor
Author
|
sbt assembly Including follows: |
Contributor
|
Thanks for doing this! |
Contributor
Author
|
rebase |
HyukjinKwon
reviewed
Oct 10, 2022
| val cp = (assembly / fullClasspath).value | ||
| cp filter { v => | ||
| val name = v.data.getName | ||
| name.startsWith("pmml-model-") || name.startsWith("scala-collection-compat_") || |
Member
There was a problem hiding this comment.

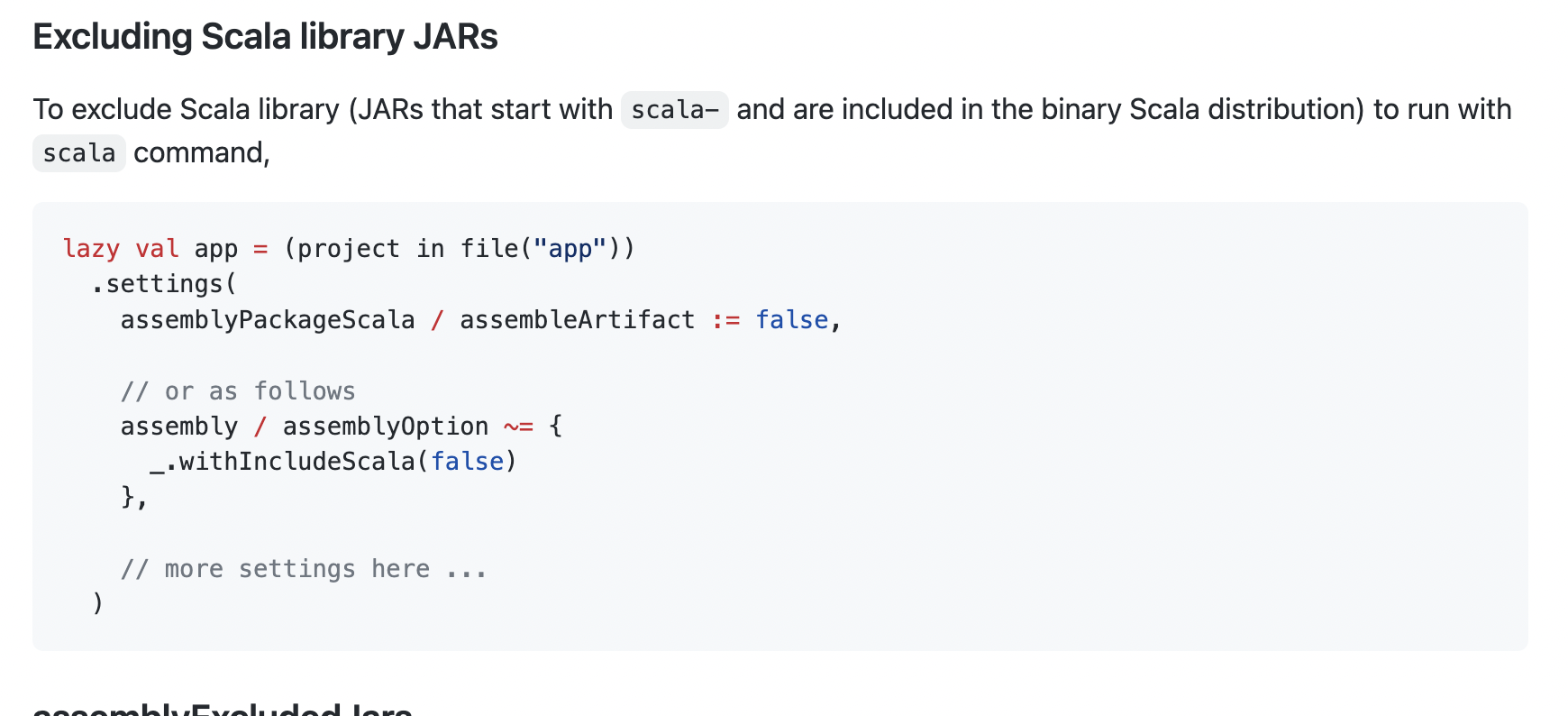

Is scala-collection picked up from Scala library itself? I remember there's an option to exclude this (e.g., includeScala = False)
Contributor
Author
There was a problem hiding this comment.
should be (assembly / assemblyPackageScala / assembleArtifact) := false, but I found scala-collection was not excluded, let me try
assembly / assemblyOption ~= {
_.withIncludeScala(false)
},
Contributor
Author
There was a problem hiding this comment.
@HyukjinKwon The results are the same, from the document, it should be this option, but it only excludes the scala-library, not the 'scala-collection compat_'.
Member
|
LGTM otherwise. Mind filling the PR description? |
amaliujia
reviewed
Oct 10, 2022
| ShadeRule.rename("com.google.common.**" -> "org.sparkproject.connect.guava.@1").inAll, | ||
| ShadeRule.rename("com.google.thirdparty.**" -> "org.sparkproject.connect.guava.@1").inAll, | ||
| ShadeRule.rename("com.google.protobuf.**" -> "org.sparkproject.connect.protobuf.@1").inAll, | ||
| ShadeRule.rename("android.annotation.**" -> "org.sparkproject.connect.android_annotation.@1").inAll, |
Contributor
There was a problem hiding this comment.
just a nit: org.sparkproject -> org.apache.spark.connect.
Contributor
Author
There was a problem hiding this comment.
No, I think we should follow the existing rules, spark.shade.packageName defined as org.sparkproject on May 8, 2019. If we need to change this rule, it is better to change it uniformly by an independent pr.
LuciferYang
commented
Oct 10, 2022
| cp filter { v => | ||
| val name = v.data.getName | ||
| name.startsWith("pmml-model-") || name.startsWith("scala-collection-compat_") || | ||
| name.startsWith("jsr305-") || name.startsWith("netty-") || name == "unused-1.0.0.jar" |
Contributor
Author
There was a problem hiding this comment.
@HyukjinKwon should we share Netty with Spark?
Contributor
Author
There was a problem hiding this comment.
Maybe we need merge #38185 first, otherwise, netty cannot be filtered out here
Contributor
Author
|
rebased |
Contributor
Author
|

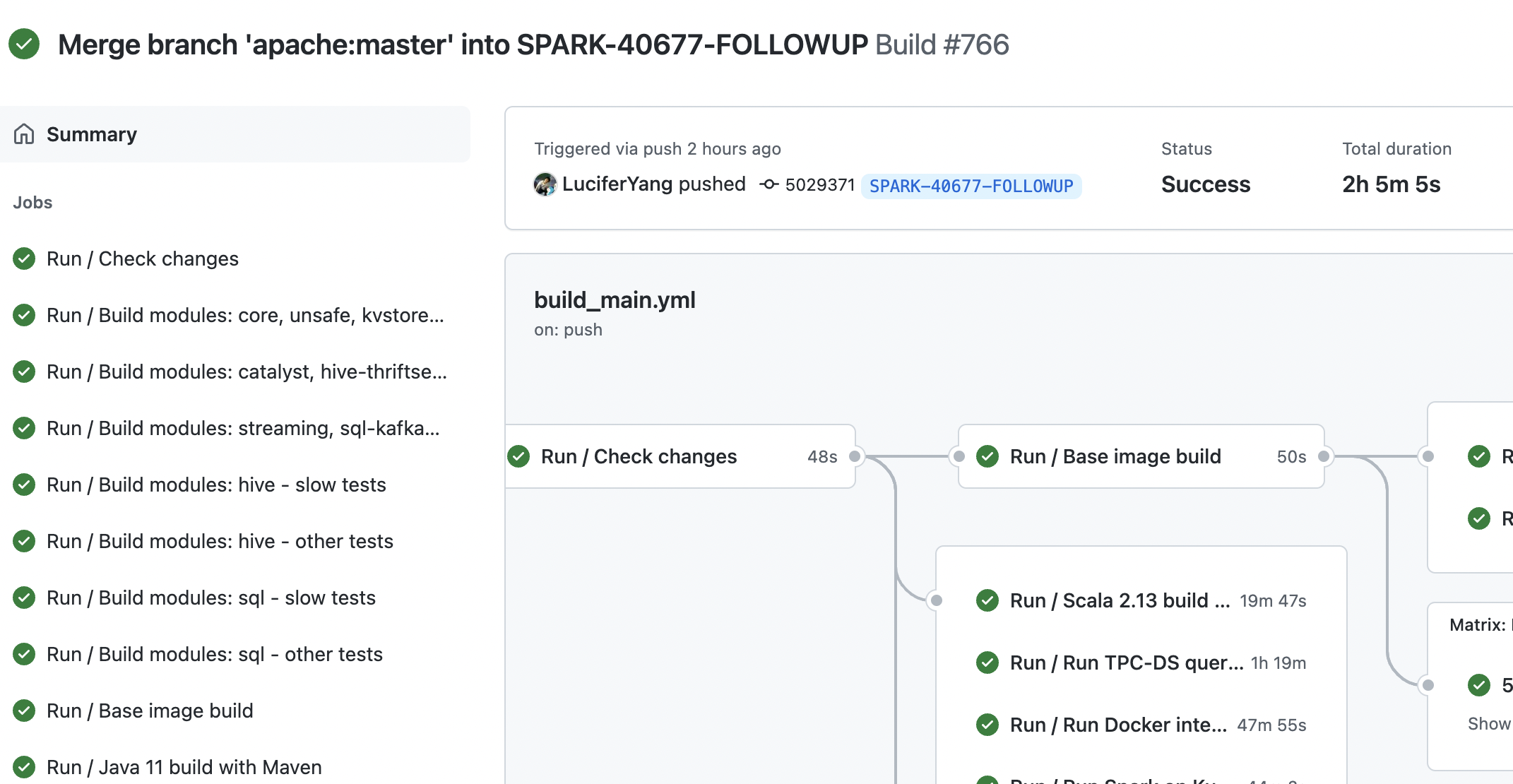

https://github.com/LuciferYang/spark/actions/runs/3219169722
GA passed, status not update |
Member
|
Merged to master. |
Contributor
Author
|
thanks @HyukjinKwon @amaliujia @grundprinzip |
DeZepTup
pushed a commit
to DeZepTup/spark-custom
that referenced
this pull request
Oct 31, 2022
…ules This main change of this pr is refactor shade relocation/rename rules refer to result of `mvn dependency:tree -pl connector/connect` to ensure that maven and sbt produce assembly jar according to the same rules. The main parts of `mvn dependency:tree -pl connector/connect` result as follows: ``` [INFO] +- com.google.guava:guava:jar:31.0.1-jre:compile [INFO] | +- com.google.guava:listenablefuture:jar:9999.0-empty-to-avoid-conflict-with-guava:compile [INFO] | +- org.checkerframework:checker-qual:jar:3.12.0:compile [INFO] | +- com.google.errorprone:error_prone_annotations:jar:2.7.1:compile [INFO] | \- com.google.j2objc:j2objc-annotations:jar:1.3:compile [INFO] +- com.google.guava:failureaccess:jar:1.0.1:compile [INFO] +- com.google.protobuf:protobuf-java:jar:3.21.1:compile [INFO] +- io.grpc:grpc-netty:jar:1.47.0:compile [INFO] | +- io.grpc:grpc-core:jar:1.47.0:compile [INFO] | | +- com.google.code.gson:gson:jar:2.9.0:runtime [INFO] | | +- com.google.android:annotations:jar:4.1.1.4:runtime [INFO] | | \- org.codehaus.mojo:animal-sniffer-annotations:jar:1.19:runtime [INFO] | +- io.netty:netty-codec-http2:jar:4.1.72.Final:compile [INFO] | | \- io.netty:netty-codec-http:jar:4.1.72.Final:compile [INFO] | +- io.netty:netty-handler-proxy:jar:4.1.72.Final:runtime [INFO] | | \- io.netty:netty-codec-socks:jar:4.1.72.Final:runtime [INFO] | +- io.perfmark:perfmark-api:jar:0.25.0:runtime [INFO] | \- io.netty:netty-transport-native-unix-common:jar:4.1.72.Final:runtime [INFO] +- io.grpc:grpc-protobuf:jar:1.47.0:compile [INFO] | +- io.grpc:grpc-api:jar:1.47.0:compile [INFO] | | \- io.grpc:grpc-context:jar:1.47.0:compile [INFO] | +- com.google.api.grpc:proto-google-common-protos:jar:2.0.1:compile [INFO] | \- io.grpc:grpc-protobuf-lite:jar:1.47.0:compile [INFO] +- io.grpc:grpc-services:jar:1.47.0:compile [INFO] | \- com.google.protobuf:protobuf-java-util:jar:3.19.2:runtime [INFO] +- io.grpc:grpc-stub:jar:1.47.0:compile [INFO] +- org.spark-project.spark:unused:jar:1.0.0:compile ``` The new shade rule excludes the following jar packages: - scala related jars - netty related jars - only sbt inlcude jars before: pmml-model-*.jar, findbugs jsr305-*.jar, spark unused-1.0.0.jar So after this pr maven shade will includes the following jars: ``` [INFO] --- maven-shade-plugin:3.2.4:shade (default) spark-connect_2.12 --- [INFO] Including com.google.guava:guava:jar:31.0.1-jre in the shaded jar. [INFO] Including com.google.guava:listenablefuture:jar:9999.0-empty-to-avoid-conflict-with-guava in the shaded jar. [INFO] Including org.checkerframework:checker-qual:jar:3.12.0 in the shaded jar. [INFO] Including com.google.errorprone:error_prone_annotations:jar:2.7.1 in the shaded jar. [INFO] Including com.google.j2objc:j2objc-annotations:jar:1.3 in the shaded jar. [INFO] Including com.google.guava:failureaccess:jar:1.0.1 in the shaded jar. [INFO] Including com.google.protobuf:protobuf-java:jar:3.21.1 in the shaded jar. [INFO] Including io.grpc:grpc-netty:jar:1.47.0 in the shaded jar. [INFO] Including io.grpc:grpc-core:jar:1.47.0 in the shaded jar. [INFO] Including com.google.code.gson:gson:jar:2.9.0 in the shaded jar. [INFO] Including com.google.android:annotations:jar:4.1.1.4 in the shaded jar. [INFO] Including org.codehaus.mojo:animal-sniffer-annotations:jar:1.19 in the shaded jar. [INFO] Including io.perfmark:perfmark-api:jar:0.25.0 in the shaded jar. [INFO] Including io.grpc:grpc-protobuf:jar:1.47.0 in the shaded jar. [INFO] Including io.grpc:grpc-api:jar:1.47.0 in the shaded jar. [INFO] Including io.grpc:grpc-context:jar:1.47.0 in the shaded jar. [INFO] Including com.google.api.grpc:proto-google-common-protos:jar:2.0.1 in the shaded jar. [INFO] Including io.grpc:grpc-protobuf-lite:jar:1.47.0 in the shaded jar. [INFO] Including io.grpc:grpc-services:jar:1.47.0 in the shaded jar. [INFO] Including com.google.protobuf:protobuf-java-util:jar:3.19.2 in the shaded jar. [INFO] Including io.grpc:grpc-stub:jar:1.47.0 in the shaded jar. ``` sbt assembly will include the following jars: ``` [debug] Including from cache: j2objc-annotations-1.3.jar [debug] Including from cache: guava-31.0.1-jre.jar [debug] Including from cache: protobuf-java-3.21.1.jar [debug] Including from cache: grpc-services-1.47.0.jar [debug] Including from cache: failureaccess-1.0.1.jar [debug] Including from cache: grpc-stub-1.47.0.jar [debug] Including from cache: perfmark-api-0.25.0.jar [debug] Including from cache: annotations-4.1.1.4.jar [debug] Including from cache: listenablefuture-9999.0-empty-to-avoid-conflict-with-guava.jar [debug] Including from cache: animal-sniffer-annotations-1.19.jar [debug] Including from cache: checker-qual-3.12.0.jar [debug] Including from cache: grpc-netty-1.47.0.jar [debug] Including from cache: grpc-api-1.47.0.jar [debug] Including from cache: grpc-protobuf-lite-1.47.0.jar [debug] Including from cache: grpc-protobuf-1.47.0.jar [debug] Including from cache: grpc-context-1.47.0.jar [debug] Including from cache: grpc-core-1.47.0.jar [debug] Including from cache: protobuf-java-util-3.19.2.jar [debug] Including from cache: error_prone_annotations-2.10.0.jar [debug] Including from cache: gson-2.9.0.jar [debug] Including from cache: proto-google-common-protos-2.0.1.jar ``` All the dependencies mentioned above are relocationed to the `org.sparkproject.connect` package according to the new rules to avoid conflicts with other third-party dependencies. Refactor shade relocation/rename rules to ensure that maven and sbt produce assembly jar according to the same rules. No Pass GitHub Actions Closes apache#38162 from LuciferYang/SPARK-40677-FOLLOWUP. Lead-authored-by: yangjie01 <yangjie01@baidu.com> Co-authored-by: YangJie <yangjie01@baidu.com> Signed-off-by: Hyukjin Kwon <gurwls223@apache.org>
3 tasks
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
4 participants
Add this suggestion to a batch that can be applied as a single commit.
This suggestion is invalid because no changes were made to the code.
Suggestions cannot be applied while the pull request is closed.
Suggestions cannot be applied while viewing a subset of changes.
Only one suggestion per line can be applied in a batch.
Add this suggestion to a batch that can be applied as a single commit.
Applying suggestions on deleted lines is not supported.
You must change the existing code in this line in order to create a valid suggestion.
Outdated suggestions cannot be applied.
This suggestion has been applied or marked resolved.
Suggestions cannot be applied from pending reviews.
Suggestions cannot be applied on multi-line comments.
Suggestions cannot be applied while the pull request is queued to merge.
Suggestion cannot be applied right now. Please check back later.
What changes were proposed in this pull request?
This main change of this pr is refactor shade relocation/rename rules refer to result of
mvn dependency:tree -pl connector/connecttoensure that maven and sbt produce assembly jar according to the same rules.
The main parts of
mvn dependency:tree -pl connector/connectresult as follows:The new shade rule excludes the following jar packages:
So after this pr
maven shade will includes the following jars:
sbt assembly will include the following jars:
All the dependencies mentioned above are relocationed to the
org.sparkproject.connectpackage according to the new rules to avoid conflicts with other third-party dependencies.Why are the changes needed?
Refactor shade relocation/rename rules to ensure that maven and sbt produce assembly jar according to the same rules.
Does this PR introduce any user-facing change?
No
How was this patch tested?
Pass GitHub Actions
