aws-rekognition-to-elasticsearch

Using AWS Lambda, analyze images with AWS Rekognition and write the results to Elasticsearch

Images written to a specific S3 bucket and path are scanned for recognizable objects using AWS Rekognition and loaded to Amazon Elasticsearch Service for searching.

Sample Data Set

We are using images from the Multimedia Commons data set, which is a collection of audio and visual features computed for the nearly 100 million Creative Commons-licensed Flickr images and videos in the YFCC100M dataset from Yahoo! Labs, along with ground-truth annotations for selected subsets.

Because the Multimedia Commons data set already resides on S3, the Bash command below will copy 10 image directories with a total of ~16,000 images to our S3 bucket:

for i in {010..011}; do
	`aws s3 sync s3://multimedia-commons/data/images/$i/ s3://mys3bucket/$i/`;
done

Alternately, you could run the command below will copy individual directories:

aws s3 sync s3://multimedia-commons/data/images/010/ s3://rekog/es/multimedia-commons/010/

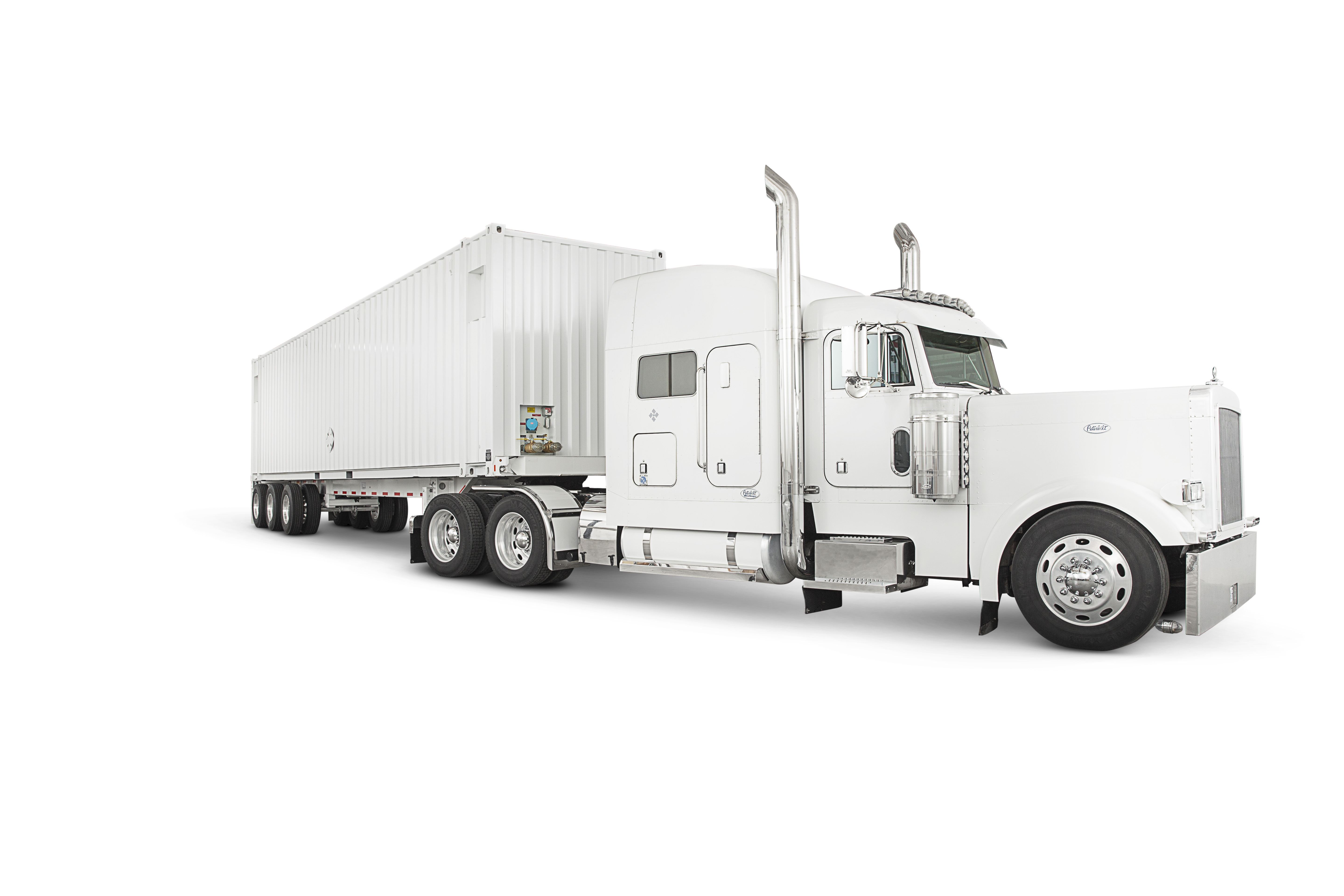

The Rekognition export for a sample image (AWS Snowmobile) is below.

The CLI command used is:

aws rekognition detect-labels --image '{"S3Object":{"Bucket":"mys3bucket","Name":"snowmobile.jpg"}}'

{
    "Labels": [
        {
            "Confidence": 96.58794403076172,
            "Name": "Transportation"
        },
        {
            "Confidence": 86.98311614990234,
            "Name": "Trailer Truck"
        },
        {
            "Confidence": 86.98311614990234,
            "Name": "Truck"
        },
        {
            "Confidence": 86.98311614990234,
            "Name": "Vehicle"
        },
        {
            "Confidence": 52.556495666503906,
            "Name": "Engine"
        },
        {
            "Confidence": 52.556495666503906,
            "Name": "Machine"
        },
        {
            "Confidence": 52.556495666503906,
            "Name": "Motor"
        },
        {
            "Confidence": 52.34297561645508,
            "Name": "Tow Truck"
        },
        {
            "Confidence": 51.937294006347656,
            "Name": "Caravan"
        },
        {
            "Confidence": 51.937294006347656,
            "Name": "Van"
        },
        {
            "Confidence": 51.570945739746094,
            "Name": "Car"
        }
    ]
}

In addition to the Rekognition output, we add additional metadata to Elasticsearch which includes:

• timestamp

  • 2016-12-25T22:10:41.983000

• bucket name

  • mys3bucket

• key name

  • snowmobile.jpg

• imported-by

  • lambda-to-es

Please note, proper permissions / roles are required to execute this properly.
