logagg

logs aggregation framework

Collects all the logs from the server and parses it for making a common schema for all the logs and stores at given storage engine.

---

Prerequisites

• We expect users to follow Best practices for logging their application
• Most importantly, do structured logging. Since, parsing/formatting logs is way easier that way.

---

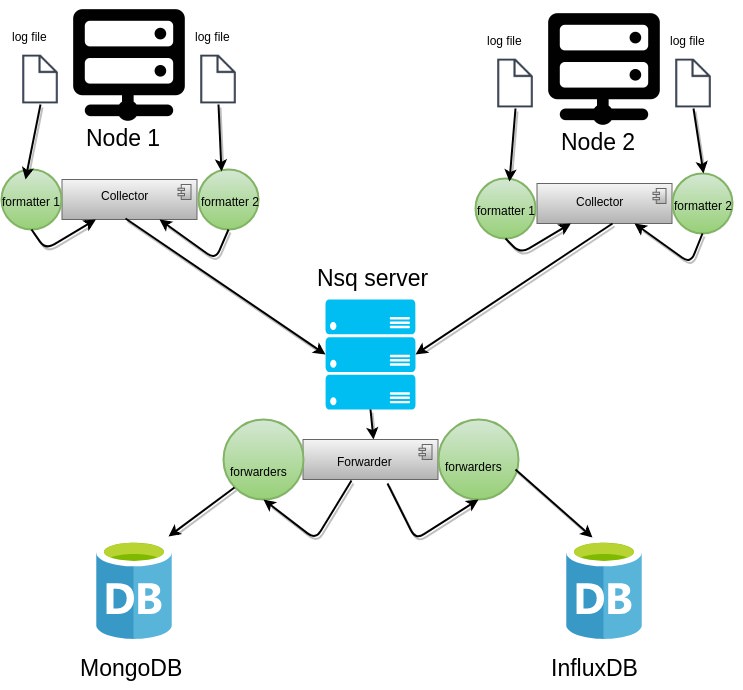

Components/Architecture/Terminology

• files : Log files which are being tracked by logagg

• node : The server(s) where the log files reside

• collector : A program that runs on each node to collect and parse log lines in the files

• formatters : The parser function that the collector uses to format the log lines to put it the common format.

• nsq : The central location where logs are sent by collector(s) after formatting as messages.

• forwarder : The program that runs on the central node which receives messages from nsq and passes it on to forwarders

• forwarders : The parsers that take messages and formats it for storing at target(s) databases

• targets : The databases that store the logs finally so that we can query on them easily

---

Features

• Guaranteed delivery of each log line from files to targets
• Reduced latency between a log being generated an being present in the targets
• Options to add custom formatters & target databases
• File poll if log file not yet generated
• Works on rotational log files
• Custom formatters to support parsing of any log file.
• Custom forwarders to support usage of any database/storage-engine file.
• Output format of processed log lines (dictionary)
  • id (str) - A unique id per log with time ordering. Useful to avoid storing duplicates.
  • timestamp (str) - ISO Format time. eg:
  • data (dict) - Parsed log data
  • raw (str) - Raw log line read from the log file
  • host (str) - Hostname of the node where this log was generated
  • formatter (str) - name of the formatter that processed the raw log line
  • file (str) - Full path of the file in the host where this log line came from
  • type (str) - One of "log", "metric" (Is there one more type?)
  • level (str) - Log level of the log line.
  • event (str) - LOG event
  • error (bool) - True if collection handler failed during processing
  • error_tb (str) - Error traceback

---

Installation

Prerequisites: Python2.7

Setup

Install the nsq package, at where we need to bring up the nsq server.

• Run the following commands to install nsq:

  $ sudo apt-get install libsnappy-dev
  $ wget https://s3.amazonaws.com/bitly-downloads/nsq/nsq-1.0.0-compat.linux-amd64.go1.8.tar.gz
  $ tar zxvf nsq-1.0.0-compat.linux-amd64.go1.8.tar.gz
  $ sudo cp nsq-1.0.0-compat.linux-amd64.go1.8/bin/* /usr/local/bin

Install the Docker package, at both forwarder and collector nodes. (If you will be using Docker image to run logagg)

• Run the following commands to install :

  $ sudo apt-get update
  $ sudo apt-get install \
      apt-transport-https \
      ca-certificates \
      curl \
      software-properties-common
  $ curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo apt-key add -
  $ sudo add-apt-repository \
     "deb [arch=amd64] https://download.docker.com/linux/ubuntu \
     $(lsb_release -cs) \
     stable"
  $ sudo apt-get update
  $ sudo apt-get install docker-ce


• Check Docker version >= 17.12.1

  $ sudo docker -v
  Docker version 18.03.1-ce, build 9ee9f40


Install the logagg package, at where we collect the logs and at where we forward the logs:

• Run the following command to pip install logagg:

  $ sudo pip install https://github.com/deep-compute/pygtail/tarball/master/#egg=pygtail-0.6.1
  $ sudo pip install logagg


  or

• Run the following command to pull docker image of logagg:

  $ sudo docker pull deepcompute/logagg


---

Basic Usage

Bring up the nsq instances at the required server with following commands:

• NOTE: Run each command in a seperate Terminal window
• nsqlookupd

  $ nsqlookupd


• nsqd -lookupd-tcp-address :4160

  $ nsqd -lookupd-tcp-address localhost:4160


• nsqadmin -lookupd-http-address :4161

  $ nsqadmin -lookupd-http-address localhost:4161


Collect logs from node

For collecting logs we need a process writing logs in a file

NOTE: Run each command in a seperate Terminal window

• We will use serverstats
  • Install serverstats

    $ sudo pip install serverstats

  • Run serverstats to write logs in a file which will be tracked by logagg collect

    $ sudo serverstats --log-file /var/log/serverstats.log run
    2018-03-01T06:57:00.709472Z [info     ] system_metrics                 _={'ln': 113, 'file': '/usr/local/lib/python2.7/dist-packages/serverstats/serverstats.py', 'name': 'serverstats.serverstats', 'fn': '_log_system_metrics'} cpu={'avg_load_5_min': 15.0, 'avg_load_15_min': 0.11, 'idle_percent': 89.0, 'iowait': 34.34, 'avg_load_1_min': 23.0, 'usage_percent': 11.0} disk={'usage': 6000046080, 'total': 41083600896, 'free_percent': 80.25838230555476, 'usage_percent': 15.4, 'free': 32973033472} id=20180301T065700_bd9ad0bc1d1d11e8bcf1000c2925b24d network_traffic={'lo': {'received': 93836, 'sent': 93836}, 'docker0': {'received': 0, 'sent': 0}, 'ens33': {'received': 268122175, 'sent': 3999917}} ram={'avail': 724705280, 'usage_percent': 59.5, 'avail_percent': 40.49408598212978, 'usage': 883863552, 'total': 1789657088, 'free': 120479744} swap={'usage': 11022336, 'total': 1071640576, 'free_percent': 98.97145215972112, 'free': 1060618240, 'usage_percent': 1.0} type=metric
    2018-03-01T06:57:05.719910Z [info     ] system_metrics                 _={'ln': 113, 'file': '/usr/local/lib/python2.7/dist-packages/serverstats/serverstats.py', 'name': 'serverstats.serverstats', 'fn': '_log_system_metrics'} cpu={'avg_load_5_min': 15.0, 'avg_load_15_min': 0.11, 'idle_percent': 89.0, 'iowait': 34.34, 'avg_load_1_min': 21.0, 'usage_percent': 11.0} disk={'usage': 6000046080, 'total': 41083600896, 'free_percent': 80.25838230555476, 'usage_percent': 15.4, 'free': 32973033472} id=20180301T065705_c09761401d1d11e8bcf1000c2925b24d network_traffic={'lo': {'received': 93836, 'sent': 93836}, 'docker0': {'received': 0, 'sent': 0}, 'ens33': {'received': 268122175, 'sent': 3999917}} ram={'avail': 724721664, 'usage_percent': 59.5, 'avail_percent': 40.49500146477223, 'usage': 883859456, 'total': 1789657088, 'free': 120479744} swap={'usage': 11022336, 'total': 1071640576, 'free_percent': 98.97145215972112, 'free': 1060618240, 'usage_percent': 1.0} type=metric

Run logagg collect command

• Normal run

  $ sudo logagg collect --file file=/var/log/serverstats.log:formatter=logagg.formatters.basescript --nsqtopic logagg --nsqd-http-address localhost:4151

  2018-03-01T08:59:25.768443Z [info     ] Created topic                  _={'ln': 33, 'file': '/usr/local/lib/python2.7/dist-packages/logagg/nsqsender.py', 'name': 'logagg.nsqsender', 'fn': '_ensure_topic'} id=20180301T085925_d799dd6c-1d2e-11e8-bcf1-000c2925b24d topic=logagg type=log
  2018-03-01T08:59:25.771411Z [info     ] Created topic                  _={'ln': 33, 'file': '/usr/local/lib/python2.7/dist-packages/logagg/nsqsender.py', 'name': 'logagg.nsqsender', 'fn': '_ensure_topic'} id=20180301T085925_d799dd6d-1d2e-11e8-bcf1-000c2925b24d topic=Heartbeat#ephemeral type=log
  2018-03-01T08:59:25.772415Z [info     ] found_formatter_fn             _={'ln': 208, 'file': '/usr/local/lib/python2.7/dist-packages/logagg/collector.py', 'name': 'logagg.collector', 'fn': '_scan_fpatterns'} fn=logagg.formatters.basescript id=20180301T085925_d79a74c0-1d2e-11e8-bcf1-000c2925b24d type=log
  2018-03-01T08:59:25.772980Z [info     ] found_log_file                 _={'ln': 216, 'file': '/usr/local/lib/python2.7/dist-packages/logagg/collector.py', 'name': 'logagg.collector', 'fn': '_scan_fpatterns'} id=20180301T085925_d79a74c1-1d2e-11e8-bcf1-000c2925b24d log_file=/var/log/serverstats.log type=log
  2018-03-01T08:59:25.773873Z [info     ] Started collect_log_lines thread  _={'ln': 223, 'file': '/usr/local/lib/python2.7/dist-packages/logagg/collector.py', 'name': 'logagg.collector', 'fn': '_scan_fpatterns'} id=20180301T085925_d79a74c2-1d2e-11e8-bcf1-000c2925b24d log_key=('/var/log/serverstats.log', '/var/log/serverstats.log', 'logagg.formatters.basescript') type=log

  or

• Docker run

  $ sudo docker run --name collector --hostname $HOSTNAME --volume /var/log:/var/log deepcompute/logagg logagg collect --file file=/var/log/serverstats.log:formatter=logagg.formatters.basescript --nsqtopic logagg --nsqd-http-address <nsq-server-ip-or-DNS>:4151

  • Note: Replace with the ip of nsq server eg.: 192.168.0.211
  • Note: --volume argument is to mount local directory of log file into Docker container
  • Note: --hostname argument is to use the same hostname and not the docker container hostname
• You can check message traffic at nsq by going through the link: http://:4171/ for localhost see here
• You can see the collected logs in realtime using the following command:

  $ nsq_tail --topic=logagg --channel=test --lookupd-http-address=<nsq-server-ip-or-DNS>:4161

Forward logs to target database(s) from nsq

For forwarding logs we need a database instance up

• We will use mongoDB
  • Install mongoDB
  • Start mongoDB

    $ sudo mongod --dbpath <database-path> --bind_ip_all


  • Create user for mongoDB using the following commands:

    $ mongo
    .
    .
    2018-03-01T03:47:54.027-0800 I CONTROL  [initandlisten]
    > use admin
    > db.createUser(
    ...    {
    ...      user: "deadpool",
    ...      pwd: "chimichanga",
    ...      roles: [ "readWrite", "dbAdmin" ]
    ...    }
    ... )
    Successfully added user: { "user" : "deadpool", "roles" : [ "readWrite", "dbAdmin" ] }


Run logagg forward command

• Normal run

  $ logagg forward --nsqtopic logagg --nsqchannel test --nsqd-tcp-address localhost:4150 --target forwarder=logagg.forwarders.MongoDBForwarder:host=localhost:port=27017:user=deadpool:password=chimichanga:db=logs:collection=cluster_logs_and_metric


  or

• Docker run

  sudo docker run --name forwarder deepcompute/logagg logagg forward --nsqtopic logagg --nsqchannel test --nsqd-tcp-address <nsq-server-ip-or-DNS>:4150 --target forwarder=logagg.forwarders.MongoDBForwarder:host=<mongoDB-server-ip-or-DNS>:port=27017:user=deadpool:password=chimichanga:db=logs:collection=cluster_logs_and_metrics


  • NOTE: Replace with the ip of nsq server
  • NOTE: Replace with the ip of mongoDB server eg.: 192.168.0.111
  • NOTE: --volume argument is to mount local directory of log file into eg.: 192.168.0.111
• You can check records in mongoDB

  $ mongo -u deadpool -p chimichanga
  ....
  ....
  > show dbs
  admin   0.000GB
  config  0.000GB
  local   0.000GB
  logs    0.003GB
  > use logs
  switched to db logs
  > show collections
  cluster_logs_and_metrics
  > db.cluster_logs_and_metrics.count()
  5219
  > db.cluster_logs_and_metrics.findOne()



---

Advanced Usage

Help command

• For logagg

  $ logagg --help

  or

  $ sudo docker run deepcompute/logagg logagg --help


  • you should see something like:

  usage: logagg [-h] [--name NAME] [--log-level LOG_LEVEL]
                [--log-format {json,pretty}] [--log-file LOG_FILE] [--quiet]
                {collect,forward,run} ...

  Logagg command line tool

  optional arguments:
    -h, --help            show this help message and exit
    --name NAME           Name to identify this instance
    --log-level LOG_LEVEL
                          Logging level as picked from the logging module
    --log-format {json,pretty}
                          Force the format of the logs. By default, if the
                          command is from a terminal, print colorful logs.
                          Otherwise print json.
    --log-file LOG_FILE   Writes logs to log file if specified, default: None
    --quiet               if true, does not print logs to stderr, default: False

  commands:
    {collect,forward,run}
      collect             Collects the logs from different processes and sends
                          to nsq
      forward             Collects all the messages from nsq and pushes to
                          storage engine


• For logagg collect

  $ logagg collect --help

  or

  $ sudo docker run deepcompute/logagg logagg collect -h


• For logagg forward,

  $ logagg forward --help


  or

  $ sudo docker run deepcompute/logagg logagg forward -h


Python interpreter

• After installation of the logagg module through pip, we can perform operations in the python shell.

$ python
>>> import logagg
>>> dir(logagg)
['LogCollector', 'LogForwarder', 'NSQSender', '__builtins__', '__doc__', '__file__', '__name__', '__package__', '__path__', 'collector', 'command', 'formatters', 'forwarder', 'forwarders', 'main', 'nsqsender', 'util']

>>> dir(logagg.formatters)
['RawLog', '__builtins__', '__doc__', '__file__', '__name__', '__package__', 'basescript', 'convert_str2int', 'datetime', 'django', 'docker_log_file_driver', 'elasticsearch', 'json', 'mongodb', 'nginx_access', 're']

>>> from pprint import pprint
>>> mongo_line = '2017-08-17T07:56:33.489+0200 I REPL     \[signalProcessingThread\] shutting down replication subsystems'


>>> pprint(logagg.formatters.mongodb(mongo_line))
{'data': {'component': 'REPL',
          'context': '[signalProcessingThread]',
          'message': 'shutting down replication subsystems',
          'severity': 'I',
          'timestamp': '2017-08-17T07:56:33.489+0200'},
 'timestamp': '2017-08-17T07:56:33.489+0200'}

How to check records at MongoDB?

• Connect to the mongo shell and perform queries:

> use database_name
> db.collection_name.find({'formatter': 'logagg.formatters.<handler_name>'})

• You can see the basic format of record like below:

{
  "_id" : "20180301T065838_f7e042841d1d11e8bcf1000c2925b24d",
  "level" : "info",
  "timestamp" : "isoformat_time. Ex: 2017-08-01T07:32:24.183981Z",
  "data" : {},
  "raw" : "raw_log_line",
  "host" : "x.com",
  "formatter" : "logagg.formatters.basescript",
  "event" : "default_event",
  "file" : "/path/to/log/file",
  "type" : "log | metric"
}

• Arbitrary example to get the records for nginx:

> use nginx
> db.cluster_logs_and_metrics.find({'handler': 'logagg.handlers.nginx_access', 'data.request_time' : {$gt: 0}}).count()
751438
> db.cluster_logs_and_metrics.find({'handler': 'logagg.handlers.nginx_access', 'data.request_time' : {$gt: 60}}).count()
181

How to check metrics at InfluxDB?

• Install influxDB

$ curl -sL https://repos.influxdata.com/influxdb.key | sudo apt-key add -
source /etc/lsb-release
$ echo "deb https://repos.influxdata.com/${DISTRIB_ID,,} ${DISTRIB_CODENAME} stable" | sudo tee /etc/apt/sources.list.d/influxdb.list
$ sudo apt-get update && sudo apt-get install influxdb
$ sudo service influxdb start

• For metrics, connect to the InfluxDB shell and perform queries.

> use database_name
> show measurements
> select <field_key> from <measurement_name>

• Arbitrary example to get the metrics for a measurement:

> use nginx
> select request_time from nginx_metric limit 10

• You should see something like below:

time                request_time
----                ------------
1508770751000000000 0.027
1508770751000000000 0.026
1508770753000000000 0.272
1508770754000000000 0.028

---

Types of handlers we support

Formatter-name	Comments
nginx_access	See Configuration here
mongodb
basescript
docker_log_file_driver	See example here

Types of forwarders we support

Forwarder-name	Sample command
MongoDBForwarder	--target forwarder=logagg.forwarders.MongoDBForwarder:host=<mongoDB-server-ip>:port=<mongod-port-number>:user=<user-name>:password=<passwd>:db=<db-name>:collection=<collection name>
InfluxDBForwarder	--target forwarder=logagg.forwarders.InfluxDBForwarder:host=<influxDB-server-ip>:port=<influxd-port-number>:user=<user-name>:password=<passwd>:db=<db-name>:collection=nothing

Rules to follow when using InfluxDBForwarder:

1. Only logs with "type":"metric" go to InfluxDB
2. key-value pairs where value is a string type becomes a tag in InfluxDB database and values having numerical values are considered as fields. See link for more information on tags and fields
3. Naming a key starting with single '_' in the beggining will force them as fields even though they are strings.
4. Naming a key starting with double '__' in the beggining will not be forwarded to InfluxDB

Note: For using multiple forwarders use the format --target <forwarder1> <forwarder2> and not --target <forwarder1> --target <forwarder2>

How to create and use custom formatters for log files

Step 1: make a directory and append it's path to evironment variable $PYTHONPATH

$ echo $PYTHONPATH

$ mkdir customformatters
$ #Now append the path to $PYTHONPATH
$ export PYTHONPATH=$PYTHONPATH:/home/path/to/customformatters/

$ echo $PYTHONPATH
:/home/path/to/customformatters

Step 2: Create a another directory and put your formatter file(s) inside it.

$ cd customformatters/
$ mkdir myformatters
$ cd myformatters/
$ touch formatters.py
$ touch __init__.py
$ echo 'import formatters' >> __init__.py
$ #Now write your formatter functions inside the formatters.py file

Step 3: Write your formatter functions inside the formatters.py file

Important:

1. Only python standard modules can be imported in formatters.py file
2. A formatter function should return a dict() datatype
3. The 'dict()' should only contain keys which are mentioned in the above log structure.
4. Sample formatter functions:

   import json
   import re

   sample_log_line = '2018-02-07T06:37:00.297610Z [Some_event] [Info] [Hello_there]'

   def sample_formatter(log_line):
       log = re.sub('[\[+\]]', '',log_line).split(' ')
       timestamp = log[0]
       event = log[1]
       level = log[2]
       data = dict({'message': log[3]})

       return dict(timestamp = timestamp,
                    event = event,
                    level = level,
                    data = data,
                   )

To see more examples, look here

5. Check if the custom handler works in python interpreter like for logagg.

   >>> import myformatters
   >>> sample_log_line = '2018-02-07T06:37:00.297610Z [Some_event] [Info] [Hello_there]'
   >>> output = myformatters.formatters.sample_formatter(sample_log_line)
   >>> from pprint import pprint
   >>> pprint(output)
   {'data': {'message': 'Hello_there'},
    'event': 'Some_event',
    'level': 'Info',
    'timestamp': '2018-02-07T06:37:00.297610Z'}

6. Pseudo logagg collect commands:

   $ sudo logagg collect --file file=logfile.log:myformatters.formatters.sample_formatter --nsqtopic logagg --nsqd-http-address localhost:4151

   or docker run

   $ sudo docker run --name collector --env PYTHONPATH=$PYTHONPATH --volume /var/log:/var/log deepcompute/logagg logagg collect --file file=logfile.log:myformatters.formatters.sample_formatter --nsqtopic logagg --nsqd-http-address <nsq-server-ip-or-DNS>:4151

---

Debugging

You can store logagg collector/forwarder logs into files using basescript --log-file argument or docker file log driver

$ sudo logagg --log-file /var/log/logagg/collector.log collect file=/var/log/serverstats/serverstats.log:formatter=logagg.formatters.basescript --nsqtopic logagg --nsqd-http-address <nsq-server-ip-or-DNS>:4151

or docker run

$ sudo docker run --name collector --hostname $HOSTNAME --volume /var/log/:/var/log/ --restart unless-stopped --label formatter=logagg.formatters.basescript --log-driver file-log-driver --log-opt labels=formatter --log-opt fpath=/logagg/collector.log --log-opt max-size=100 deepcompute/logagg logagg collect --file file=/var/log/serverstats.log:formatter=logagg.formatters.basescript --nsqtopic serverstats --nsqd-http-address <nsq-server-ip-or-DNS>:4151

If there are multiple files being tracked by multiple collectors on multiple nodes, the collector information can be seen in "Heartbeat" topic of NSQ. Every running collector sends a hearbeat to this topic (default interval = 30 seconds). The heartbeat format is as follows:

• timestamp : Timestamp of the recieved heartbeat.
• heartbeat_number : The heartbeat number since the collector started running.
• host : Hostname of the node on which the collector is running.
• nsq_topic : The nsq topic which the collector is using.
• files_tracked : list of files that are being tracked by the collector followed by the fomatter.

You can run the following command to see the information:

$ nsq_tail --topic=Heartbeat --channel=test --lookupd-http-address=<nsq-server-ip-or-DNS>:4161

Build on logagg

You're more than welcome to hack on this:-)

$ git clone https://github.com/deep-compute/logagg
$ cd logagg
$ sudo python setup.py install
$ docker build -t logagg .

---
