irept: use single map for all named sub-nodes #3470

kroening · 2018-11-26T23:06:56Z

Each commit message has a non-empty body, explaining why the change was made.
n/a Methods or procedures I have added are documented, following the guidelines provided in CODING_STANDARD.md.
n/a The feature or user visible behaviour I have added or modified has been documented in the User Guide in doc/cprover-manual/
Regression or unit tests are included, or existing tests cover the modified code (in this case I have detailed which ones those are in the commit message).
My commit message includes data points confirming performance improvements (if claimed).
My PR is restricted to a single feature or bugfix.
n/a White-space or formatting changes outside the feature-related changed lines are in commits of their own.

tautschnig

This is probably a very good idea, with two requests:

The version number of goto binaries needs to be incremented.
We need to do benchmarking, most likely this is a major improvement (it's just the operator== that's of concern).

smowton · 2018-11-27T10:00:16Z

The hash-container change suggests we'll always include comments in a particular irep's hashcode? In that case surely unordered_map will break as hash-code equality and operator== will disagree?

kroening · 2018-11-27T11:39:27Z

@smowton Was still getting there; they now agree.

kroening · 2018-11-27T11:50:58Z

One more BTW @tautschnig : The goto-binary format is tolerant of this change (forwards and backwards), i.e., no need to tweak the version number for this.

src/util/irep_serialization.cpp

@kroening

Thanks @kroening for helping me understand!

tautschnig · 2018-11-27T13:16:44Z

I will take care of benchmarking once CI passes.

allredj

✔️
Passed Diffblue compatibility checks (cbmc commit: ced9234).
Build URL: https://travis-ci.com/diffblue/test-gen/builds/92991087

tautschnig

With this change there is a desirable reduction in memory consumption, but also approximately 20% slowdown across all benchmarks. This additional time is spent in irept::number_of_non_comments. The two dominating causes of invoking this are 1) computing a hash - to be optimised away via HASH_CODE, and 2) sorting operands in expression simplification - see #1997 for removing it.

Overall I think we should work to enable this optimisation, but we have more work to do to avoid a performance regression.

kroening · 2018-12-05T12:56:04Z

@tautschnig Many thanks -- I've just done a tweak that should reduce the cost of counting for the case of hashing. May I ask you to do another run?

tautschnig · 2018-12-05T13:09:33Z

May I ask you to do another run?

Running.

tautschnig · 2018-12-05T14:01:32Z

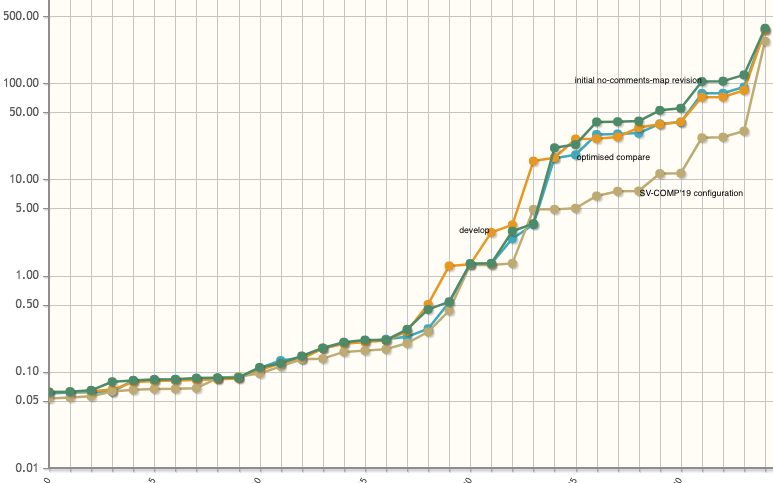

That's the quantile plot for ReachSafety-BitVectors - it seems the new version is back en par with develop.

tautschnig · 2018-12-05T14:05:32Z

src/goto-programs/show_goto_functions_json.cpp

 {
  json_arrayt json_functions;
-  const json_irept no_comments_irep_converter(false);
+  const json_irept no_comments_irep_converter;


Does this still do what the name promises? If so, how?

removed these changes

src/util/irep.cpp

tautschnig · 2018-12-05T14:13:31Z

src/util/irep.cpp

+      // must be the same
+      INVARIANT(it1 != get_named_sub().end(), "not at end of get_named_sub()");
+      INVARIANT(
+        it2 != i.get_named_sub().end(), "not at end of i.get_named_sub()");


This should basically be the same code as irept::operator== but does extra checks and just overall looks a bit different. Maybe we can avoid this?

could use compare() for both, but seems to be an unrelated change

src/util/json_irep.cpp

tautschnig · 2018-12-05T14:18:06Z

src/util/json_irep.cpp

 #include <algorithm>

 /// To convert to JSON from an irep structure by recursively generating JSON
 /// for the different sub trees.


This comment should actually go with the class, not with the constructor.

src/util/json_irep.h

src/util/xml_irep.cpp

unit/util/irep.cpp

allredj

✔️
Passed Diffblue compatibility checks (cbmc commit: d202f7c).
Build URL: https://travis-ci.com/diffblue/test-gen/builds/93671584

allredj

🚫
This PR failed Diffblue compatibility checks (cbmc commit: 6024861).
Build URL: https://travis-ci.com/diffblue/test-gen/builds/93968598
Status will be re-evaluated on next push.
Please contact @peterschrammel, @thk123, or @allredj for support.

Common spurious failures:

the cbmc commit has disappeared in the mean time (e.g. in a force-push)
the author is not in the list of contributors (e.g. first-time contributors).

The incompatibility may have been introduced by an earlier PR. In that case merging this
PR should be avoided unless it fixes the current incompatibility.

allredj

🚫
This PR failed Diffblue compatibility checks (cbmc commit: df4dee0).
Build URL: https://travis-ci.com/diffblue/test-gen/builds/93969059
Status will be re-evaluated on next push.
Please contact @peterschrammel, @thk123, or @allredj for support.

Common spurious failures:

the cbmc commit has disappeared in the mean time (e.g. in a force-push)
the author is not in the list of contributors (e.g. first-time contributors).

The incompatibility may have been introduced by an earlier PR. In that case merging this
PR should be avoided unless it fixes the current incompatibility.

allredj

✔️
Passed Diffblue compatibility checks (cbmc commit: 31ab10a).
Build URL: https://travis-ci.com/diffblue/test-gen/builds/93970956

allredj

✔️
Passed Diffblue compatibility checks (cbmc commit: 6933585).
Build URL: https://travis-ci.com/diffblue/test-gen/builds/95243811

allredj

✔️
Passed Diffblue compatibility checks (cbmc commit: 48c40db).
Build URL: https://travis-ci.com/diffblue/test-gen/builds/95336240

tautschnig · 2018-12-20T09:48:42Z

I am attaching the results for develop vs this branch on SV-COMP's ReachSafety-ECA category, which is the category where we spend the most time actually running symbolic execution (before handing the formula to the SAT solver). The difference is very small, but overall in favour of the proposed change. Some tasks are slower, some finish quicker. The total memory consumption is lower, as expected.
