Integrate srcSet #693

aChanEP · 2020-05-07T02:52:34Z

Description:

https://elasticpath.atlassian.net/secure/RapidBoard.jspa?rapidView=467&projectKey=RS&modal=detail&selectedIssue=RS-805&assignee=557058%3A2cdf4e37-eb83-44ee-9d76-d5409db1e998

The purpose of this PR is to implement dynamic images that will fetch the appropriate asset based on window width and browser compatibility. This PR will stop lighthouse from complaining about using next-gen formats and improper sizing for our images. lighthouse performance sees modest improvements and we are hitting the mid to high 50's.

ImageContainer component has been updated to utilize dynamic images enabled through the picture element. Take a look at the component README for more information.

Image assets for the Breville catalog have been sized appropriately for 3 sizing breakpoints: 0-768, 768 - 1092, 1092 - Infinity. Each sizing containing jpg, jp2, and webp formats which will cover a full range of browsers. The assets can be seen at this s3 bucket: https://s3.console.aws.amazon.com/s3/buckets/refstoreimgs/?region=us-west-2&tab=overview.

The demo-team will need to be notified of these assets changes as they are currently using pngs for their demo's.

A seperate project here for image processing:
https://github.com/aChanEP/nextGenImageCreation. We may want to use this as a starting point for a future asset pipeline if we deem it necessary.

// Processed images for bellevie dataset
"skuImagesUrl": "https://ep-demo-assets.s3-us-west-2.amazonaws.com/BELLEVIE/skuImages/%fileName%",
"siteImagesUrl": "https://ep-demo-assets.s3-us-west-2.amazonaws.com/BELLEVIE/siteImages/%fileName%",

TODO's:

Still needing to debug multi-sku images. DONE
Need to write up documentation on how to reskin. WIP

Linting:

No linting errors

Tests:

E2E tests (npm test run with e2e)
Manual tests

Documentation:

Requires documentation updates

Integrate srcSet

Able to get srcSet working

change to use x instead of w

adjust sizings

clean up

Able to get the homepage to use srcSet

Able to get pdp to work with new image container

able to get appheader working

able to get image container working in productlistitem

uncomment all usages of image container

add styling

update ep.config.json

update mandatory alt tag for img element

More updates to alt element. Include better descriptions for imaeg parameters

fix readme and make more descriptive parameter names

update config file

update README example

shaunmaharaj · 2020-05-12T17:24:00Z

Please address conflicts & rebase

shaunmaharaj · 2020-05-12T17:24:28Z

src/ep.config.json

@@ -27,12 +25,12 @@
    }
  ],
  "defaultCurrencyValue": "CAD",
-  "skuImagesUrl": "https://elasticpath-demo-images.s3-us-west-2.amazonaws.com/VESTRI_VIRTUAL_V1/%sku%.png",
-  "siteImagesUrl": "https://elasticpath-demo-images.s3-us-west-2.amazonaws.com/VESTRI_VIRTUAL_V1/%fileName%",
+  "skuImagesUrl": "https://refstoreimgs.s3-us-west-2.amazonaws.com/productImages/%fileName%",


Is this a copy of the existing bucket's images?

Yes its a copy of existing buckets. resized and re-typed versions of the breville catalog within the reference store aws

shaunmaharaj · 2020-05-12T17:24:52Z

src/ep.config.json

-  "skuImagesUrl": "https://elasticpath-demo-images.s3-us-west-2.amazonaws.com/VESTRI_VIRTUAL_V1/%sku%.png",
-  "siteImagesUrl": "https://elasticpath-demo-images.s3-us-west-2.amazonaws.com/VESTRI_VIRTUAL_V1/%fileName%",
+  "skuImagesUrl": "https://refstoreimgs.s3-us-west-2.amazonaws.com/productImages/%fileName%",
+  "siteImagesUrl": "https://refstoreimgs.s3-us-west-2.amazonaws.com/siteImages/%fileName%",

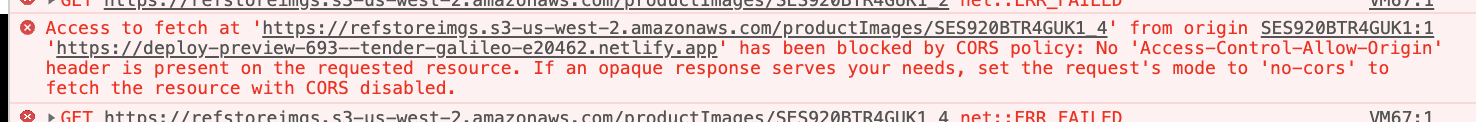

Getting CORS errors on these images. Need to add a CORS config for the new bucket:

Updated the url

FYI I get cors issues even when switching back to elasticpath-demo-images

shaunmaharaj · 2020-05-12T17:25:59Z

src/components/src/ProductListItem/productlistitem.main.tsx

+                imgClassName="category-item-thumbnail img-responsive"
+                isSkuImage
+                fileName={productData._code[0].code}
+                imageFileTypes={['webp', 'jp2', 'jpg']}


Can we take the "imageFileTypes" from ep.config.json? We're duplicating this across components but it's a shared config and could be changed by an implementor.

I would +1 this!

Would it be possible to make the imageFileTypes property optional, and have it override whatever is in ep.config.json?

Most Demo Team assets are PNGs. As this stands right now, we're going to need to not only convert our existing assets to one of the above formats, but also create duplicates (in each of the three formats) for every demo we put out (or go through and manually update the types on each of these components). It would definitely reduce friction if we could configure this in one place, and override manually where necessary.

^ Overriding it per usage sounds like a good idea to me! I'll make those changes :)

src/ep.config.json

src/containers/MaintenancePage.tsx

Remove image type input

plundaahl-ep · 2020-05-12T22:18:17Z

src/components/src/OrderTableLineItem/ordertable.lineitem.tsx

+          imgClassName="thumbnail"
+          isSkuImage
+          fileName={code}
+          imageFileTypes={['webp', 'jp2', 'jpg']}


Would it be worth pulling this out before merging this in, and letting the details in ep.config.json determine the types used here?

Also, same question about the following files:

src/components/src/QuickOrderForm/quickorderform.tsx

src/components/src/ProductListItem/productlistitem.main.tsx

src/components/src/ProductDisplayItem/productdisplayitem.main.tsx

Yep removing these types. Will be an optional parameter that will override the types in the config.

dusanradovanovic · 2020-05-13T19:40:24Z

src/components/src/ImageContainer/image.container.tsx

  isSkuImage: false,
+  ImageContainerSrcs: [],


I don't see this defined in the props interface. Where is it used? If you want to keep it it should be camel case like all the prop names.

good catch. Removing

remove alt

change to use React Component

remove styling

remove useless onerror

add newline

get rid of alt

update readme

new line

aChanEP

Please address conflicts & rebase

rebased

aChanEP · 2020-05-13T14:53:00Z

src/components/src/ImageContainer/image.container.scss

@@ -0,0 +1,3 @@
+picture {
+    width: 100%;
+}


good catch!

src/components/src/ImageContainer/image.container.tsx

aChanEP · 2020-05-13T14:53:42Z

src/components/src/ImageContainer/image.container.tsx

-  );
+  const generateSrcSet = type => imageSizes.reduce((acc, imageSize) => {
+    if (acc === '') {
+      return `${acc}${imgPrefix.replace('%fileName%', `${type}/${fileName}-${imageSize}w.${type} ${imageSize}w`)}`;


WIP looking into it

src/components/src/ImageContainer/image.container.tsx

aChanEP · 2020-05-13T19:43:42Z

src/components/src/ImageContainer/image.container.tsx

  isSkuImage: false,
+  ImageContainerSrcs: [],


good catch. Removing

src/components/src/ImageContainer/image.container.tsx

src/ep.config.json

support mutli-sku images

update config

Update storybook README and stories

use cleaner approach

update image container styling

add aria-label back

add new line

aChanEP · 2020-05-14T21:30:32Z

All problems have been addressed here! This should be ready to be merged! Working on re-skinning docs now :)

src/ep.config.json

update README and make slight changes to error handling

change naming

stop never ending refresh loop

make some quick fixes

shaunmaharaj · 2020-05-16T19:04:20Z

src/components/src/ProductListItem/productlistitem.main.tsx

@@ -147,8 +147,14 @@ class ProductListItemMain extends Component<ProductListItemMainProps, ProductLis
      return (
        <div className="category-item-inner">
          <div className={`category-item-thumbnail-container ${imageStatus === 'loaded' ? 'loaded' : ''}`}>
-            <Link to={`${itemDetailLink}/${encodeURIComponent(productData._code[0].code)}`} title={productData._definition[0]['display-name']}>


axe reports an error due to the missing title. I'll fix this in my PR with the version update before release cut-off:
#712
