Thermometer working added and crash fixed #1754

ho-dor · 2019-05-28T21:16:14Z

Fixes #1750 #1752

Changes: Added backend code for thermometer .

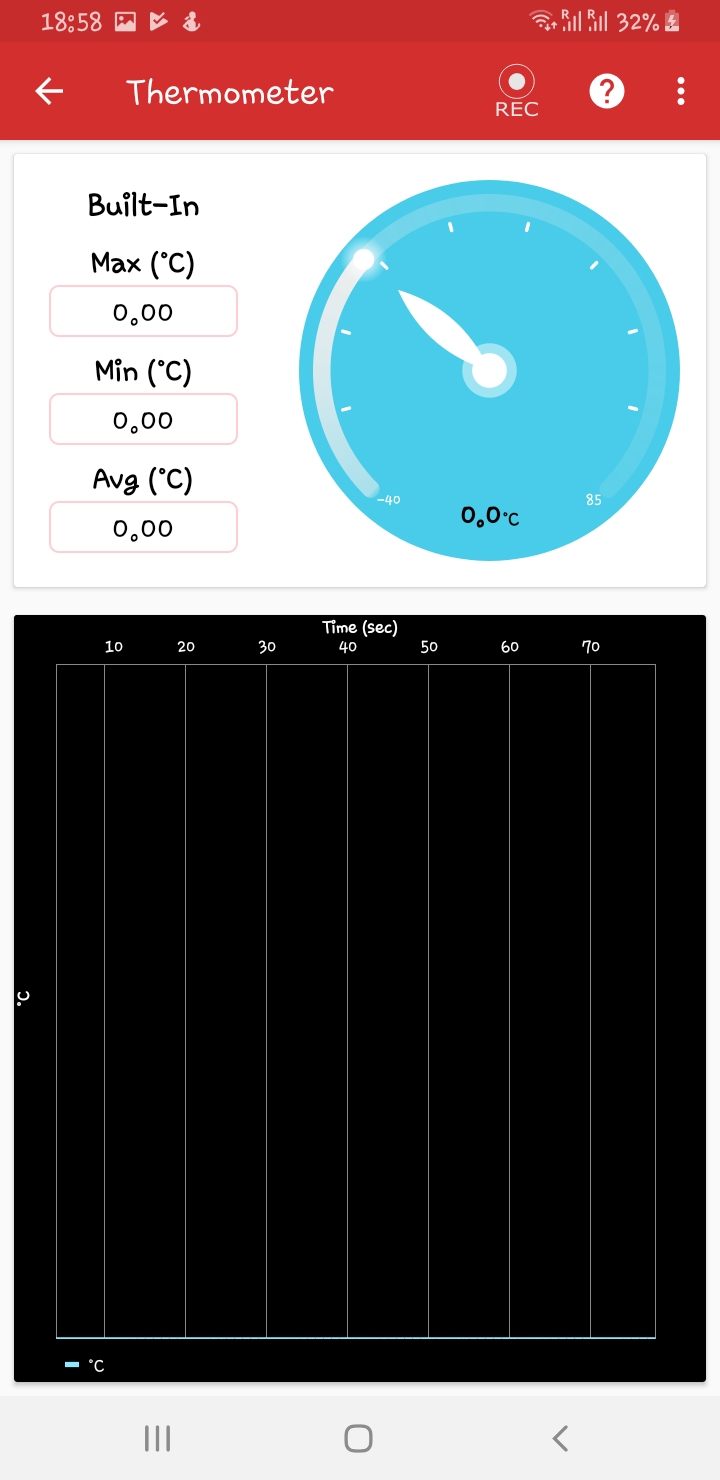

Screenshot/s for the changes:

Checklist: [Please tick following check boxes with [x] if the respective task is completed]

I have used resources from strings.xml, dimens.xml and colors.xml without hard-coding them
No modifications done at the end of resource files strings.xml, dimens.xml or colors.xml
I have reformatted code in every file included in this PR [CTRL+ALT+L]
My code does not contain any extra lines or extra spaces
I have requested reviews from other members

APK for testing:
app-debug.zip

app/src/main/java/io/pslab/fragment/ThermometerDataFragment.java

CloudyPadmal

Make sure all the wordings have been replaced correctly when copying another class as whole. It might lead to errors. Only make the PR when it is clean and ready. Fixing these kind of stuff is not part of review.

CloudyPadmal · 2019-05-29T02:29:59Z

app/src/main/res/layout/activity_thermometer.xml

+                    android:padding="15dp"
+                    app:sv_speedTextColor="@color/black"
+                    app:sv_speedTextPosition="BOTTOM_CENTER"
+                    app:sv_speedTextSize="@dimen/lux_display_font_size"


Can you make separate variables for thermometer replacing the luxs?

No . I kept it the same knowigly because the dimen value are going to be same eventually in UI but I will change it if that is better

Yes, all needs to be changed. The real reason why we are using resources instead of hard-coded values is that, it will be easier and practical to make modifications from one place. Putting luxmeter dimensions is in fact similar to hard-coding.

CloudyPadmal · 2019-05-29T02:30:21Z

app/src/main/res/values/strings.xml

    <string name="thermometer_bottom_sheet_text">Thermometer instrument is used to measure ambient temprature. It can be measured using inbuilt ambient temprature sensor or through SHT21.</string>
    <string name="thermometer_bottom_sheet_desc">Thermometer instrument is used to measure ambient temprature. It can be measured using inbuilt ambient temprature sensor or through SHT21.</string>
    <string name="no_thermometer_sensor">Device does not have Thermometer Sensor</string>
+    <string name="thermo_unit">F</string>


We'll use Celcius

And let user select which unit want from configurations

Yes , I am going to add that functionality . I just wanted to confirm it works or not till here.

I was referring to units here. Throughout the app we are using Metric units, not imperial

CloudyPadmal · 2019-05-29T02:31:20Z

app/src/main/java/io/pslab/fragment/ThermometerDataFragment.java

+
+                count++;
+                sum += entry.getY();
+                statMean.setText(String.format(Locale.getDefault(), PSLabSensor.LUXMETER_DATA_FORMAT, (sum / count)));


All these Lux stuff need to be thermo related

neel1998

Do we need to have max value to be 10000 F? It seems too high

CloudyPadmal · 2019-05-29T08:14:11Z

@neel1998 definitely no. @ho-dor check the datasheet of the sensor and set the max value to the maximum temperature value in that.

CloudyPadmal · 2019-05-29T08:15:10Z

Besides, i think a gauge is not a good way to represent data in a thermometer. We can implement some color bar instead. Please look into this @ho-dor . Thanks.

ho-dor · 2019-05-29T09:20:53Z

Besides, i think a gauge is not a good way to represent data in a thermometer. We can implement some color bar instead. Please look into this @ho-dor . Thanks.

How about we change the background of gauge as the temp changes, like make it green for low temp and red for higher temp ?

CloudyPadmal · 2019-05-29T09:28:09Z

Besides, i think a gauge is not a good way to represent data in a thermometer. We can implement some color bar instead. Please look into this @ho-dor . Thanks.

How about we change the background of gauge as the temp changes, like make it green for low temp and red for higher temp ?

Ok for now. Blue for low temps and red for high temps

ho-dor · 2019-05-29T13:34:54Z

@neel1998 @CloudyPadmal please check

CloudyPadmal · 2019-05-30T06:03:43Z

app/src/main/java/io/pslab/fragment/ThermometerDataFragment.java

 import android.os.Handler;
 import android.support.annotation.NonNull;
-import android.support.annotation.Nullable;
+import android.support.v14.preference.PreferenceFragment;


Codacy complains this as unused

CloudyPadmal · 2019-05-30T06:10:54Z

Rest looks ok. We can progress from here

neel1998 · 2019-05-30T06:11:53Z

Looks ok to me as well

ho-dor · 2019-05-30T07:04:33Z

codacy resolved

ho-dor · 2019-05-30T07:17:17Z

Once this gets merged , I will make a PR for #1756. @CloudyPadmal @neel1998

ho-dor · 2019-05-30T08:37:51Z

I have changed the sensor to SHT21 as that is more suitable for this purpose.

neel1998 · 2019-05-30T09:21:36Z

@ho-dor there is still one unused import in codacy. Remove it in this PR or remember to remove in next one. Also can you send the latest apk once to test

ho-dor · 2019-05-30T10:17:37Z

@neel1998 check

neel1998 · 2019-05-30T10:19:17Z

Can you comment the apk file here?

ho-dor · 2019-05-30T10:21:18Z

Can you comment the apk file here?

The apk file isn't supported to upload here . I have added the latest zip of apk in PR

neel1998 · 2019-05-30T10:29:53Z

The graph is acting weirdly. Please look at the gif. It goes blank after a while. Please look at the barometer graph. It seems to be working okay

ho-dor · 2019-05-30T11:30:36Z

I have increased the range on x-axis and the graph is more like lux meter. I am unable to understand the graph of baro meter as the max value that pressure can reach is 2 according to the range but the graph only shows till 0.45 atm on y-axis.

neel1998 · 2019-05-30T12:18:39Z

This has nothing to do with range, the x - axis should increment every second, which is not happening in the thermometer, also the graph going blank after a while is also not an issue of range

ho-dor · 2019-05-30T12:27:24Z

This has nothing to do with range, the x - axis should increment every second, which is not happening in the thermometer, also the graph going blank after a while is also not an issue of range

I have set the graph updation period to 100 ms in place of 1000 ms that is why it is getting updated quick , but the graph going blank is because of the x-axis range that I have set to 800 now , if you will see , now the graph continues till 800 s earlier it was till 80 s.

neel1998 · 2019-05-30T12:30:01Z

So have you changed to 1000 ms?

ho-dor · 2019-05-30T12:34:23Z

Yes , check the updated apk

neel1998 · 2019-05-30T12:46:21Z

looks good now
