ProjectCrackerToolCopy Contains an invalid character

[cloudRoutine]

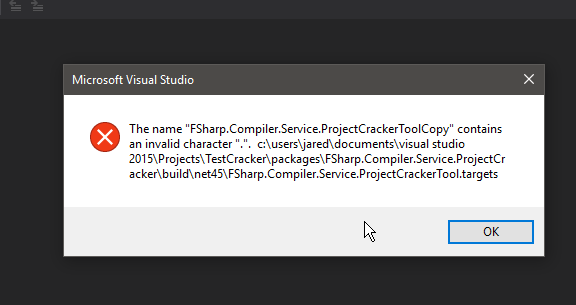

When creating a new project and adding FSharp.Compiler.Service.ProjectCracker as the only dependency via paket when I reload the project after paket has downladed the package and the project file has been modified to include the reference it fails to load with the error -

Changing the contents of the targets file to

<?xml version="1.0" encoding="utf-8"?>
<Project ToolsVersion="4.0"     xmlns="http://schemas.microsoft.com/developer/msbuild/2003">
<Target Name="ProjectCrackerToolCopy" AfterTargets="Build">
    <Copy SourceFiles="$(MSBuildThisFileDirectory)\..\..\utilities\net45\FSharp.Compiler.Service.ProjectCrackerTool.exe" DestinationFolder="$(OutputPath)" />
    <Copy SourceFiles="$(MSBuildThisFileDirectory)\..\..\utilities\net45\FSharp.Compiler.Service.ProjectCrackerTool.exe.config" DestinationFolder="$(OutputPath)" />
</Target>
</Project>

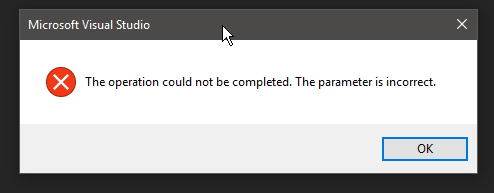

removes that error and the project will load correctly, however it introduces a new error

I also tried using version 2.0.0.2 and 2.0.0-beta and got the same error dialog above

For good measure I tried installing 2.0.0.4 via nuget in VS and also got that error. However installing via nuget did not create the invalid character error

fsproj when installed via nuget

<?xml version="1.0" encoding="utf-8"?>
<Project ToolsVersion="14.0" DefaultTargets="Build" xmlns="http://schemas.microsoft.com/developer/msbuild/2003">
  <Import Project="$(MSBuildExtensionsPath)\$(MSBuildToolsVersion)\Microsoft.Common.props" Condition="Exists('$(MSBuildExtensionsPath)\$(MSBuildToolsVersion)\Microsoft.Common.props')" />
  <PropertyGroup>
    <Configuration Condition=" '$(Configuration)' == '' ">Debug</Configuration>
    <Platform Condition=" '$(Platform)' == '' ">AnyCPU</Platform>
    <SchemaVersion>2.0</SchemaVersion>
    <ProjectGuid>636b5619-3676-4c69-bcbf-4102c3232a85</ProjectGuid>
    <OutputType>Library</OutputType>
    <RootNamespace>TestCracker</RootNamespace>
    <AssemblyName>TestCracker</AssemblyName>
    <TargetFrameworkVersion>v4.5</TargetFrameworkVersion>
    <TargetFSharpCoreVersion>4.4.0.0</TargetFSharpCoreVersion>
    <AutoGenerateBindingRedirects>true</AutoGenerateBindingRedirects>
    <Name>TestCracker</Name>
  </PropertyGroup>
  <PropertyGroup Condition=" '$(Configuration)|$(Platform)' == 'Debug|AnyCPU' ">
    <DebugSymbols>true</DebugSymbols>
    <DebugType>full</DebugType>
    <Optimize>false</Optimize>
    <Tailcalls>false</Tailcalls>
    <OutputPath>bin\Debug\</OutputPath>
    <DefineConstants>DEBUG;TRACE</DefineConstants>
    <WarningLevel>3</WarningLevel>
    <DocumentationFile>bin\Debug\TestCracker.XML</DocumentationFile>
  </PropertyGroup>
  <PropertyGroup Condition=" '$(Configuration)|$(Platform)' == 'Release|AnyCPU' ">
    <DebugType>pdbonly</DebugType>
    <Optimize>true</Optimize>
    <Tailcalls>true</Tailcalls>
    <OutputPath>bin\Release\</OutputPath>
    <DefineConstants>TRACE</DefineConstants>
    <WarningLevel>3</WarningLevel>
    <DocumentationFile>bin\Release\TestCracker.XML</DocumentationFile>
  </PropertyGroup>
  <PropertyGroup>
    <MinimumVisualStudioVersion Condition="'$(MinimumVisualStudioVersion)' == ''">11</MinimumVisualStudioVersion>
  </PropertyGroup>
  <Choose>
    <When Condition="'$(VisualStudioVersion)' == '11.0'">
      <PropertyGroup Condition="Exists('$(MSBuildExtensionsPath32)\..\Microsoft SDKs\F#\3.0\Framework\v4.0\Microsoft.FSharp.Targets')">
        <FSharpTargetsPath>$(MSBuildExtensionsPath32)\..\Microsoft SDKs\F#\3.0\Framework\v4.0\Microsoft.FSharp.Targets</FSharpTargetsPath>
      </PropertyGroup>
    </When>
    <Otherwise>
      <PropertyGroup Condition="Exists('$(MSBuildExtensionsPath32)\Microsoft\VisualStudio\v$(VisualStudioVersion)\FSharp\Microsoft.FSharp.Targets')">
        <FSharpTargetsPath>$(MSBuildExtensionsPath32)\Microsoft\VisualStudio\v$(VisualStudioVersion)\FSharp\Microsoft.FSharp.Targets</FSharpTargetsPath>
      </PropertyGroup>
    </Otherwise>
  </Choose>
  <Import Project="$(FSharpTargetsPath)" />
  <ItemGroup>
    <Compile Include="AssemblyInfo.fs" />
    <Compile Include="Library1.fs" />
    <None Include="Script.fsx" />
    <Content Include="packages.config" />
  </ItemGroup>
  <ItemGroup>
    <Reference Include="FSharp.Compiler.Service.ProjectCracker">
      <HintPath>c:\users\jared\documents\visual studio 2015\Projects\TestCracker\packages\FSharp.Compiler.Service.ProjectCracker\lib\net45\FSharp.Compiler.Service.ProjectCracker.dll</HintPath>
      <Private>True</Private>
    </Reference>
    <Reference Include="mscorlib" />
    <Reference Include="FSharp.Core, Version=$(TargetFSharpCoreVersion), Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a">
      <Private>True</Private>
    </Reference>
    <Reference Include="System" />
    <Reference Include="System.Core" />
    <Reference Include="System.Numerics" />
  </ItemGroup>
  <!-- To modify your build process, add your task inside one of the targets below and uncomment it.
       Other similar extension points exist, see Microsoft.Common.targets.
  <Target Name="BeforeBuild">
  </Target>
  <Target Name="AfterBuild">
  </Target>
  -->
</Project>

fsproj when installed via paket

<?xml version="1.0" encoding="utf-8"?>
<Project ToolsVersion="14.0" DefaultTargets="Build" xmlns="http://schemas.microsoft.com/developer/msbuild/2003">
  <Import Project="$(MSBuildExtensionsPath)\$(MSBuildToolsVersion)\Microsoft.Common.props" Condition="Exists('$(MSBuildExtensionsPath)\$(MSBuildToolsVersion)\Microsoft.Common.props')" />
  <PropertyGroup>
    <Configuration Condition=" '$(Configuration)' == '' ">Debug</Configuration>
    <Platform Condition=" '$(Platform)' == '' ">AnyCPU</Platform>
    <SchemaVersion>2.0</SchemaVersion>
    <ProjectGuid>d8d85fc6-967f-458a-9024-ffc4b4af49d9</ProjectGuid>
    <OutputType>Library</OutputType>
    <RootNamespace>TestCracker</RootNamespace>
    <AssemblyName>TestCracker</AssemblyName>
    <TargetFrameworkVersion>v4.5</TargetFrameworkVersion>
    <TargetFSharpCoreVersion>4.4.0.0</TargetFSharpCoreVersion>
    <AutoGenerateBindingRedirects>true</AutoGenerateBindingRedirects>
    <Name>TestCracker</Name>
  </PropertyGroup>
  <PropertyGroup Condition=" '$(Configuration)|$(Platform)' == 'Debug|AnyCPU' ">
    <DebugSymbols>true</DebugSymbols>
    <DebugType>full</DebugType>
    <Optimize>false</Optimize>
    <Tailcalls>false</Tailcalls>
    <OutputPath>bin\Debug\</OutputPath>
    <DefineConstants>DEBUG;TRACE</DefineConstants>
    <WarningLevel>3</WarningLevel>
    <DocumentationFile>bin\Debug\TestCracker.XML</DocumentationFile>
  </PropertyGroup>
  <PropertyGroup Condition=" '$(Configuration)|$(Platform)' == 'Release|AnyCPU' ">
    <DebugType>pdbonly</DebugType>
    <Optimize>true</Optimize>
    <Tailcalls>true</Tailcalls>
    <OutputPath>bin\Release\</OutputPath>
    <DefineConstants>TRACE</DefineConstants>
    <WarningLevel>3</WarningLevel>
    <DocumentationFile>bin\Release\TestCracker.XML</DocumentationFile>
  </PropertyGroup>
  <ItemGroup>
    <Reference Include="mscorlib" />
    <Reference Include="FSharp.Core, Version=$(TargetFSharpCoreVersion), Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a">
      <Private>True</Private>
    </Reference>
    <Reference Include="System" />
    <Reference Include="System.Core" />
    <Reference Include="System.Numerics" />
  </ItemGroup>
  <ItemGroup>
    <Compile Include="AssemblyInfo.fs" />
    <Compile Include="Library1.fs" />
    <None Include="Script.fsx" />
  </ItemGroup>
  <PropertyGroup>
    <MinimumVisualStudioVersion Condition="'$(MinimumVisualStudioVersion)' == ''">11</MinimumVisualStudioVersion>
  </PropertyGroup>
  <Choose>
    <When Condition="'$(VisualStudioVersion)' == '11.0'">
      <PropertyGroup Condition="Exists('$(MSBuildExtensionsPath32)\..\Microsoft SDKs\F#\3.0\Framework\v4.0\Microsoft.FSharp.Targets')">
        <FSharpTargetsPath>$(MSBuildExtensionsPath32)\..\Microsoft SDKs\F#\3.0\Framework\v4.0\Microsoft.FSharp.Targets</FSharpTargetsPath>
      </PropertyGroup>
    </When>
    <Otherwise>
      <PropertyGroup Condition="Exists('$(MSBuildExtensionsPath32)\Microsoft\VisualStudio\v$(VisualStudioVersion)\FSharp\Microsoft.FSharp.Targets')">
        <FSharpTargetsPath>$(MSBuildExtensionsPath32)\Microsoft\VisualStudio\v$(VisualStudioVersion)\FSharp\Microsoft.FSharp.Targets</FSharpTargetsPath>
      </PropertyGroup>
    </Otherwise>
  </Choose>
  <Import Project="$(FSharpTargetsPath)" />
  <!-- To modify your build process, add your task inside one of the targets below and uncomment it.
       Other similar extension points exist, see Microsoft.Common.targets.
  <Target Name="BeforeBuild">
  </Target>
  <Target Name="AfterBuild">
  </Target>
  -->
  <Choose>
    <When Condition="$(TargetFrameworkIdentifier) == '.NETFramework' And ($(TargetFrameworkVersion) == 'v4.5' Or $(TargetFrameworkVersion) == 'v4.5.1' Or $(TargetFrameworkVersion) == 'v4.5.2' Or $(TargetFrameworkVersion) == 'v4.5.3' Or $(TargetFrameworkVersion) == 'v4.6' Or $(TargetFrameworkVersion) == 'v4.6.1')">
      <PropertyGroup>
        <__paket__FSharp_Compiler_Service_ProjectCrackerTool_targets>net45\FSharp.Compiler.Service.ProjectCrackerTool</__paket__FSharp_Compiler_Service_ProjectCrackerTool_targets>
      </PropertyGroup>
    </When>
  </Choose>
  <Choose>
    <When Condition="$(TargetFrameworkIdentifier) == '.NETFramework' And ($(TargetFrameworkVersion) == 'v4.5' Or $(TargetFrameworkVersion) == 'v4.5.1' Or $(TargetFrameworkVersion) == 'v4.5.2' Or $(TargetFrameworkVersion) == 'v4.5.3' Or $(TargetFrameworkVersion) == 'v4.6' Or $(TargetFrameworkVersion) == 'v4.6.1')">
      <ItemGroup>
        <Reference Include="FSharp.Compiler.Service.ProjectCracker">
          <HintPath>..\packages\FSharp.Compiler.Service.ProjectCracker\lib\net45\FSharp.Compiler.Service.ProjectCracker.dll</HintPath>
          <Private>True</Private>
          <Paket>True</Paket>
        </Reference>
      </ItemGroup>
    </When>
  </Choose>
  <Import Project="..\packages\FSharp.Compiler.Service.ProjectCracker\build\$(__paket__FSharp_Compiler_Service_ProjectCrackerTool_targets).targets" Condition="Exists('..\packages\FSharp.Compiler.Service.ProjectCracker\build\$(__paket__FSharp_Compiler_Service_ProjectCrackerTool_targets).targets')" Label="Paket" />
</Project>

@rneatherway

[rneatherway]

OK, looks like Paket and NuGet behave differently. Reading the NuGet docs again I see:

Under this folder, you can place two files with fixed names, {packageid}.targets or {packageid}.props.

So I guess this file should be called FSharp.Compiler.Service.ProjectCracker.targets (no Tool). And your change to the .targets file makes sense too for VS. I'll put up a PR for those two things.

[rneatherway]

#530

[rneatherway]

This should be fixed in the just-released 2.0.0.6. Let me know how it goes.

[cloudRoutine]

Working fine now, thanks a bunch.
