axui-datagrid

demo : http://axui-datagrid.jsdev.kr

Install

npm install axui-datagrid

Run

git clone https://github.com/jsdevkr/axui-datagrid.git
cd axui-datagrid
npm i
npm start

Features

Large Data

Frozen row / col

Multi header

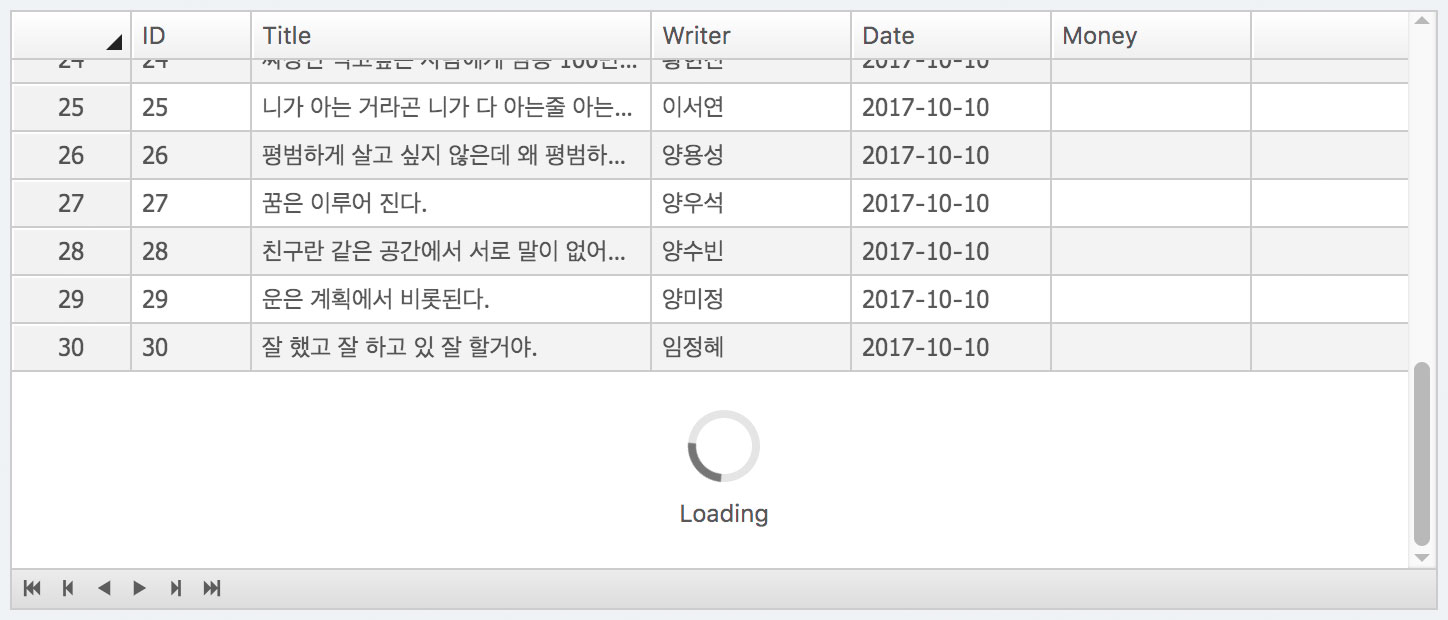

Loading

Row selector

Inline edit

Foot Summary

Props

data?: IData;

dataLength?: number;

columns: DataGridColumn[];

export interface IDataGridColumn extends ICol {
  colIndex?: number;
  rowIndex?: number;
  formatter?: formatterFunction | string;
  collector?: collectorFunction | string;
  editor?: editorFunction | string | { type?: string };
  hidden?: boolean;
  columns?: IDataGridColumn[];
  depth?: number;
  columnAttr?: string;
}

width: number = 400;

height: number = 400;

style?: any;

options?: DataGridOptions = defaultOptions;

status?: React.ReactNode;

defaultOptions

static defaultColumnKeys: types.DataGridColumnKeys = {
    selected: '__selected__',
    modified: '__modified__',
    deleted: '__deleted__',
    disableSelection: '__disable_selection__',
};
static defaultHeader: types.DataGridOptionHeader = {
    display: true,
    align: 'left',
    columnHeight: 24,
    columnPadding: 3,
    columnBorderWidth: 1,
    selector: true,
    sortable: true,
    enableFilter: true,
    clickAction: 'sort',
};
static defaultBody: types.DataGridOptionBody = {
    align: 'left',
    columnHeight: 24,
    columnPadding: 3,
    columnBorderWidth: 1,
    grouping: false,
    mergeCells: false,
};
static defaultPage: types.DataGridOptionPage = {
    height: 20,
};
static defaultScroller: types.DataGridOptionScroller = {
    size: 14,
    arrowSize: 14,
    barMinSize: 12,
    padding: 3,
    disabledVerticalScroll: false,
};
static defaultOptions: types.DataGridOptions = {
    frozenColumnIndex: 0,
    frozenRowIndex: 0,
    showLineNumber: true,
    showRowSelector: false,
    multipleSelect: true,
    columnMinWidth: 100,
    lineNumberColumnWidth: 60,
    rowSelectorColumnWidth: 28,
    remoteSort: false,
    asidePanelWidth: 0,
    header: DataGrid.defaultHeader,
    body: DataGrid.defaultBody,
    page: DataGrid.defaultPage,
    scroller: DataGrid.defaultScroller,
    columnKeys: DataGrid.defaultColumnKeys,
    bodyLoaderHeight: 100,
};

onBeforeEvent?: ({e: React.MouseEvent | React.KeyboardEvent; eventName: string;}) => void;

onAfterEvent?: ({e: React.MouseEvent | React.KeyboardEvent; eventName: string;}) => void;

onScrollEnd?: ({endOfScrollTop?: boolean; endOfScrollLeft?: boolean;}) => void;

onRightClick?: ({e: React.MouseEvent; item: any; value: any; focusedRow?: number; focusedCol?: number;}) => void;

loading?: boolean = false;

loadingData?: boolean = false;

rowSelector?: IDataGridRowSelector;

IDataGridRowSelector

 {
  show: boolean;
  rowKey: string;
  selectedRowKeys?: string[];
  onChange?: (param: IonChangeSelectedParam) => void;
}

Sample

You can see other source code here

Here is one example code for using a datagrid

import React, { FC, useState } from 'react';
import { DataGrid, IDataGrid } from 'axui-datagrid';

interface IProps {}
const DatagridExample: FC<IProps> = () => {
  const [width, setWidth] = useState(500);
  const [height, setHeight] = useState(250);

  const columns: IDataGrid.IColumn[] = [
    { key: '0', width: 60, label: 'ID', align: 'center' },
    {
      key: '1',
      width: 200,
      label: 'Title',
      formatter: function(args: any) {
        // console.log(args);
        return ' * ' + args.value;
      },
    },
    { key: '2', label: 'Writer', align: 'center', formatter: 'html' },
    { key: '0', label: 'Date', align: 'center', formatter: 'date' },
    { key: '1', label: 'Money', align: 'right', formatter: 'money' },
  ];

  const data = [
    { value: ['A01', 'B01', 'C'] },
    { value: ['A02', 'B02', 'C<b>a</b>'] },
    { value: ['A03', 'B03', 'C<b>a</b>'] },
    { value: ['A04', 'B04', 'C<b>a</b>'] },
    { value: ['A05', 'B05', 'C<b>a</b>'] },
    { value: ['A06', 'B06', 'C<b>a</b>'] },
    { value: ['A07', 'B07', 'C<b>a</b>'] },
    { value: ['A08', 'B08', 'C<b>a</b>'] },
    { value: ['A09', 'B09', 'C<b>a</b>'] },
    { value: ['A10', 'B10', 'C<b>a</b>'] },
    { value: ['A11', 'B11', 'C<b>a</b>'] },
  ];

  return (
    <div style={{ border: '1px solid #d9d9d9', width, height }}>
      <DataGrid
        width={width}
        height={height}
        style={{ fontSize: '12px' }}
        columns={columns}
        data={data}
        dataLength={data.length}
        options={{}}
      />
    </div>
  );
};

export default DatagridExample;

Version history

• v0.3.0 - Add a new prop loading, loadingData, and onScrollEnd to the DataGrid.
• v0.3.2 - Add a new props onChangeSelected, refactoring StoreProvider
• v0.3.3 - Changed keyboard event firing to be determined by 'onCompositionUpdate' state. In InlineEdit mode.
• v0.3.5 - Update document and minor bug fix on inline-edit.
• v0.3.6 - bugfix : Wrong scrollPosition error when changed focus position by keyDown
• v0.3.7 - Update document and change columns fix
• v0.3.8 - support footSum props & minor bugfix
• v0.3.9 - filtered state display on header & fixed bug of 'footSum'
• v0.3.10 - Fixed bug : When clicking line Number cell did not working.
• v0.3.11 - Minor bug fix
• v0.3.14 - Code changes that were using 'findDOMNode'. so has remove dependencies 'react-dom'
• v0.3.18 - update readme
• v0.3.20 - changed onChangeSelected to rowSelector.onChange
• v0.4.0 - support contextmenu event
• v0.5.0 - support selection.onChange, Add a new props onRightClick, refactoring StoreProvider
• v0.5.1 - Improve columnFilter & modify examples
• v0.5.2 - Bugfix : The scrollBar is not displayed where resizing a column.
• v0.6.0 - Add a new prop width and Add IDataGrid namespace.
• v0.6.1 - Fixed an issue where the column position is not kept according to the scroll position.
• v0.7.0 - Modify scrollbar style
• v0.7.1 - Minor patch - scrollbar style
• v0.8.0 - Refactoring storeProvider & Modify scrollBar style
• v0.8.1 ~ 0.8.3 - minor patch & fixed bug
• v0.9.0 - Add a new props status & formatter support HTML
• v0.9.1 - display default status
• v0.10.0 - Added the options.autofitColumns property, fix problem wrong scroll position
• v0.10.1 - autofitColumns Timing Adjustments
• v0.11.0 - Added the options.scroller.width, height, theme
• v0.12.0 - Add a new props onScroll, remove props onAfterEvent, modify keydown scroll action
• v0.12.1 - update axui-datagrid-header.scss, header text color support
• v0.13.0 - support custom editor in column, add new props (onChangeSelected, onScroll, onChangeScrollSize)
• v0.13.1 - Modified the style of inline editing text.
• v0.13.2 - minor fix.
• v0.13.3 - Modify Inline editor
• v0.13.4 - update row by inlineEditor
• v0.13.5 - add option.rowSelectorSize
• v0.13.6 - Handle focus exception when text type editor is activeType 'always'.
• v0.13.7 - minor fix.
• v0.13.8 - rowSelect bug fix.
• v0.13.9 - add a new prop onClick
• v0.13.10 - Fixed bug onClick
• v0.13.11 - update default CSS & update example
• v0.13.12 - Fixed the copying of objects to clipboard copy data.
• v0.13.13 - Fixed scrollBar & scrollPosition.
• v0.14.0 - add option.lineNumberStartAt
• v0.14.1 - add selectedIndexes prop
• v0.14.2 - Fixed selectedIndexes prop
• v0.14.3 - Fixed, Problems not copied to the clipboard at Windows
• v0.14.4 - add option.disableClipboard
• v0.14.6 - remove option.autofitColumns, add props autofitColumns
• v0.14.7 - Scrolling error fix when the number of data exceeds 1.5 million.
• v0.14.8 - Fix minor issue
• v0.15.0 - Changed type of 'data' prop (IData) / Add 'dataLength' property / Option Properties Cleanup.
• v0.15.1 - Export IDataGrid interface
• v0.15.2 - Update readme
