Communication's component validator does not propagate exceptions, obscuring the cause of the error

[nikita2206]

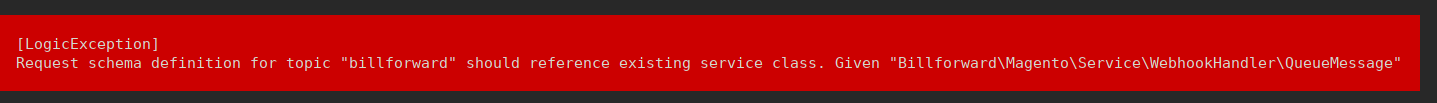

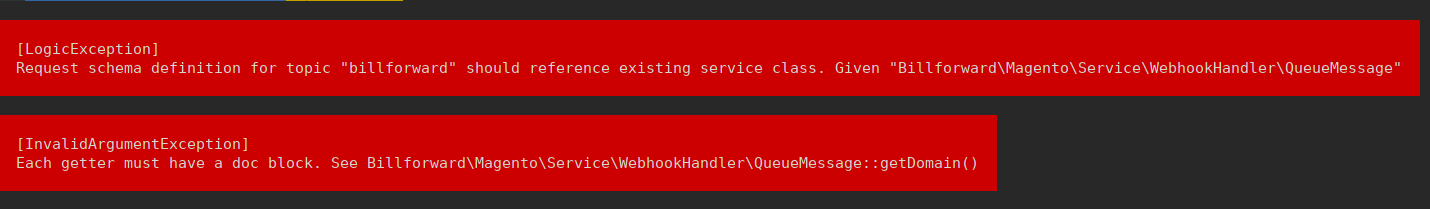

It was quite hard to understand the issue with my request schema until I went into Magento\Framework\Communication\Config\Validator and changed exception instantiation from new LogicException($message) to new LogicException($message, 0, $e). My issue was to do with this in the end: Each getter must have a doc block. It would be better if it was possible to see that error message out of the box, but instead I was only seeing Request schema definition for topic "..." should reference existing service class. Given ... (while the class obviously existed).

Preconditions

Magento 2.2.5

Steps to reproduce

1. A schema class:

class Dummy {
    private $foo;

    public function getFoo() { return $this->foo; }
    public function setFoo($foo) { $this->foo = $foo; }
}

2. Communication configuration (communication.xml):

<?xml version="1.0"?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:Communication/etc/communication.xsd">
    <topic name="foo_topic" request="Dummy" />
</config>

3. Run validation for communication configuration. It can be done either automatically if you're using Magento EE, or can be done manually by calling into Magento\Framework\Communication\Config->getTopic("foo_topic")

Expected result

Actual result

[ArtsiomBruneuski]

#sqashtoberfest

[ArtsiomBruneuski]

#squashtoberfest

[magento-engcom-team]

@ArtsiomBruneuski thank you for joining. Please accept team invitation here and self-assign the issue.

[ArtsiomBruneuski]

@magento-engcom-team give me 2.3-develop instance

[magento-engcom-team]

Hi @ArtsiomBruneuski. Thank you for your request. I'm working on Magento 2.3-develop instance for you

[magento-engcom-team]

Hi @ArtsiomBruneuski, here is your Magento instance.
Admin access: https://i-14555-2-3-develop.engcom.dev.magento.com/admin
Login: admin Password: 123123q
Instance will be terminated in up to 3 hours.

[sidolov]

Hi @nikita2206. Thank you for your report.
The issue has been fixed in #18416 by @ArtsiomBruneuski in 2.3-develop branch
Related commit(s):

• 9a1b8fd6401f872f5f5f12db15839135e4f38d27
• 4f017f89e2588aaa0df2714935d24abd9100e981
• 6dd7115e953efb35c03c648889d12068b3fa7fce
• 335c2011bd536b908ab7b5e888f16614b0e2c12e
• 7903cd5d130846efbead59f27955a3a5a439b620
• dfda40787fda0b0abe58520a74b72820f2c7fed7
• b2621a5a3310ca0b8177f350370eb6b95d5d2f22
• 7392ba6993b625968539f204109d2e3327a72eb3
• b37d2d6fb3fed1d4c39ca24de413d25961fe8008
• 9f1d4bfa763f23a5a25f14bae95455dca3e4628f

The fix will be available with the upcoming 2.3.1 release.

[sidolov]

Hi @nikita2206. Thank you for your report.
The issue has been fixed in #18554 by @gelanivishal in 2.2-develop branch
Related commit(s):

• 3109909d76b0402a941518bc9306697e4431ef54
• 9afdfee251b7ef9098b3ae22e59cf0673c557bb3
• 791609c7ec59700694609937deeecd1916fda2b6
• beeecafdb28a20b39e06c17554e49bbffa1f7632
• 7e38326028a4d2419fa553723c4eef4bd4c90495
• a20968db7a29a3b6f26a46979179851121eea336
• 2f2cafee687d81d95854b1629ef8eec7c5a4e548
• 72b31c952619104e1b176fe9c03074437c8a58b9
• a7cdae0e4f80aa8596d4b3a3b958ae2b9938a346
• 74c6bfd295569253d2a371bf2f0d11fda931c68c

The fix will be available with the upcoming 2.2.8 release.
