2.3.4 GraphQl Aggregation Attribute labels and attribute option labels are not or incorrectly translated.

[Hexmage]

Preconditions (*)

1. Magento 2.3.4
2. 2 Storeviews
3. Demo data

Steps to reproduce (*)

1. Pick an attribute and configure it so its available as an aggregation in graphql (I chose "size")

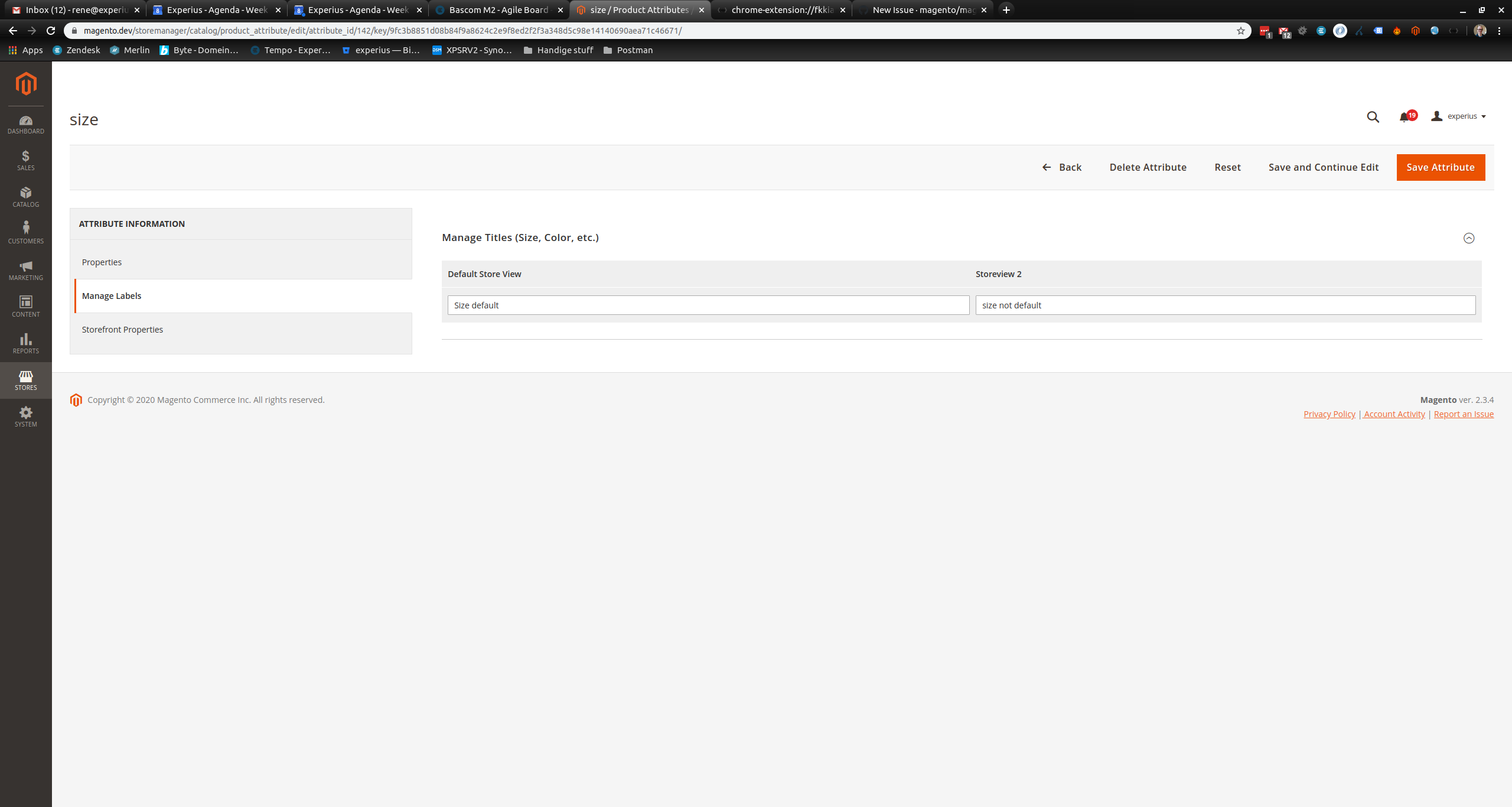

2. Set the attribute label for both storeviews

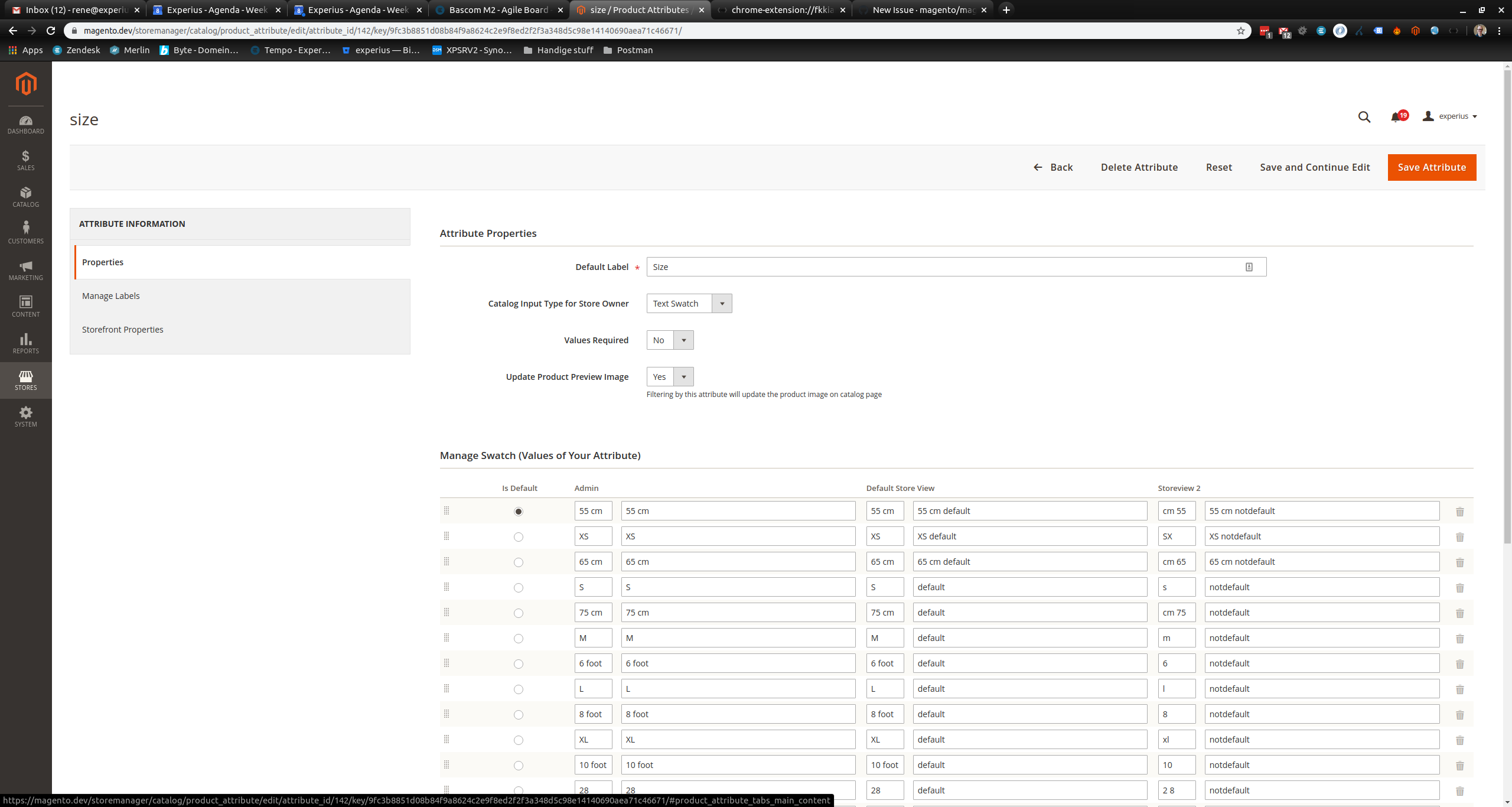

3. Set the attribute option labels for both storeviews

4. Run the following GraphQl query for both storeviews:

query products {
    products (filter: {
      category_id: {eq: "2"}
    }
    ) {
        aggregations {
          attribute_code
          label
          options{
            count
            label
            value
          }
        }
    }
}

Expected result (*)

For default storeview

...
             {
                   "attribute_code": "size",
                   "label": "default",
                   "options": [
                       {
                           "count": 1,
                           "label": "55 cm default",
                           "value": "5518"
                       },
                       {
                           "count": 1,
                           "label": "65 cm default",
                           "value": "5519"
                       },
                       {
                           "count": 1,
                           "label": "default",
                           "value": "5520"
                       },
                       {
                           "count": 2,
                           "label": "default",
                           "value": "5521"
                       },
                       {
                           "count": 2,
                           "label": "default",
                           "value": "5522"
                       },
                       {
                           "count": 2,
                           "label": "default",
                           "value": "5523"
                       },
                       {
                           "count": 97,
                           "label": "XS default",
                           "value": "5594"
                       },
                       {
                           "count": 98,
                           "label": "default",
                           "value": "5595"
                       },
                       {
                           "count": 98,
                           "label": "default",
                           "value": "5596"
                       },
                       {
                           "count": 98,
                           "label": "default",
                           "value": "5597"
                       },
                      {...}
                   ]
               },
...

Actual result (*)

For default storeview

...
               {
                    "attribute_code": "size",
                    "label": "Size",
                    "options": [
                        {
                            "count": 1,
                            "label": "55 cm notdefault",
                            "value": "5518"
                        },
                        {
                            "count": 1,
                            "label": "65 cm notdefault",
                            "value": "5519"
                        },
                        {
                            "count": 1,
                            "label": "notdefault",
                            "value": "5520"
                        },
                        {
                            "count": 2,
                            "label": "notdefault",
                            "value": "5521"
                        },
                        {
                            "count": 2,
                            "label": "notdefault",
                            "value": "5522"
                        },
                        {
                            "count": 2,
                            "label": "notdefault",
                            "value": "5523"
                        },
                        {
                            "count": 97,
                            "label": "XS notdefault",
                            "value": "5594"
                        },
                        {
                            "count": 98,
                            "label": "notdefault",
                            "value": "5595"
                        },
                        {
                            "count": 98,
                            "label": "notdefault",
                            "value": "5596"
                        },
                        {
                            "count": 98,
                            "label": "notdefault",
                            "value": "5597"
                        },
                       {...}
                    ]
                },
...

What is happening is that the attribute label is never translated. And the attribute option labels pick the last entry in the database for each label. In my case "notdefault" because I entered those last.
I checked the code and at no point is the $storeId checked in the queries that gather the results.

[m2-assistant]

Hi @Hexmage. Thank you for your report.
To help us process this issue please make sure that you provided the following information:

• Summary of the issue
• Information on your environment
• Steps to reproduce
• Expected and actual results

Please make sure that the issue is reproducible on the vanilla Magento instance following Steps to reproduce. To deploy vanilla Magento instance on our environment, please, add a comment to the issue:

@magento give me 2.4-develop instance - upcoming 2.4.x release

For more details, please, review the Magento Contributor Assistant documentation.

@Hexmage do you confirm that you were able to reproduce the issue on vanilla Magento instance following steps to reproduce?

• yes
• no

---

• Join Magento Community Engineering Slack and ask your questions in #github channel.

[Hexmage]

The code for this is unchanged between 2.3.4 and 2.4

[Hexmage]

app/code/Magento/CatalogGraphQl/DataProvider/Product/LayeredNavigation/AttributeOptionProvider.php
Is the class in which this happens.

[bharat1811]

It is the main issue is not managed $storeId in attribute builder. I dig the issue and I get to manage the issue with a temporary solution by overriding following file in my custom module using preference type,

vendor/magento/module-catalog-graph-ql/DataProvider/Product/LayeredNavigation/Builder/Attribute.php

First for Attribute.php I changed below functions to mange $storeId,

public function build(AggregationInterface $aggregation, ?int $storeId): array
{

    **$attributeOptions = $this->getAttributeOptions($aggregation, $storeId);**

    // build layer per attribute
    $result = [];
    foreach ($this->getAttributeBuckets($aggregation) as $bucket) {
        $bucketName = $bucket->getName();
        $attributeCode = \preg_replace('~_bucket$~', '', $bucketName);
        $attribute = $attributeOptions[$attributeCode] ?? [];

        $result[$bucketName] = $this->layerFormatter->buildLayer(
            $attribute['attribute_label'] ?? $bucketName,
            \count($bucket->getValues()),
            $attribute['attribute_code'] ?? $bucketName
        );

        foreach ($bucket->getValues() as $value) {
            $metrics = $value->getMetrics();
            $result[$bucketName]['options'][] = $this->layerFormatter->buildItem(
                $attribute['options'][$metrics['value']] ?? $metrics['value'],
                $metrics['value'],
                $metrics['count']
            );
        }
    }

    return $result;
}

private function getAttributeOptions(AggregationInterface $aggregation, $storeId): array
{
$attributeOptionIds = [];
$attributes = [];
foreach ($this->getAttributeBuckets($aggregation) as $bucket) {
$attributes[] = \preg_replace('_bucket$', '', $bucket->getName());
$attributeOptionIds[] = \array_map(
function (AggregationValueInterface $value) {
return $value->getValue();
},
$bucket->getValues()
);
}

    if (!$attributeOptionIds) {
        return [];
    }
    **return $this->attributeOptionProvider->getOptions(\array_merge(...$attributeOptionIds), $attributes, $storeId);**
}

* For attributeOptionProvider (vendor/magento/module-catalog-graph-ql/DataProvider/Product/LayeredNavigation/AttributeOptionProvider.php) I manged by creating in my custom module and initiated in Attribute.php to use.

I did changes in follwoing function in custom AttributeOptionProvider.php as below,

_#load \Magento\Catalog\Model\ResourceModel\ProductFactory $productFactory in you _construct()

public function getOptions(array $optionIds, array $attributeCodes = [], $storeId): array
{
if (!$optionIds) {
return [];
}

    $connection = $this->resourceConnection->getConnection();
    $select = $connection->select()
        ->from(
            ['a' => $this->resourceConnection->getTableName('eav_attribute')],
            [
                'attribute_id' => 'a.attribute_id',
                'attribute_code' => 'a.attribute_code',
                'attribute_label' => 'a.frontend_label',
            ]
        )
        ->joinLeft(
            ['options' => $this->resourceConnection->getTableName('eav_attribute_option')],
            'a.attribute_id = options.attribute_id',
            []
        )
        ->joinLeft(
            ['option_value' => $this->resourceConnection->getTableName('eav_attribute_option_value')],
            'options.option_id = option_value.option_id',
            [
                'option_label' => 'option_value.value',
                'option_id' => 'option_value.option_id',
            ]
        );

    $select->where('option_value.option_id IN (?)', $optionIds);

    if (!empty($attributeCodes)) {
        $select->orWhere(
            'a.attribute_code in (?) AND a.frontend_input = \'boolean\'',
            $attributeCodes
        );
    }

     **return $this->formatResult($select, $storeId);**
}


private function formatResult(\Magento\Framework\DB\Select $select, **$storeId**): array
{
    $statement = $this->resourceConnection->getConnection()->query($select);

    $result = [];
    **$poductReource=$this->productFactory->create();**

    while ($option = $statement->fetch()) {

        **if($poductReource->getAttribute($option['attribute_code'])->getStoreLabel($storeId)){
            $attributeLabel = $poductReource->getAttribute($option['attribute_code'])->getStoreLabel($storeId);
        }else{
            $attributeLabel = $option['attribute_label'];
        }

        $attribute = $poductReource->getAttribute($option['attribute_code']);
        if ($attribute->usesSource()) {
          $option_Text = $attribute->getSource()->getOptionText($option['option_id']);
        }**

        if (!isset($result[$option['attribute_code']])) {
            $result[$option['attribute_code']] = [
                'attribute_id' => $option['attribute_id'],
                'attribute_code' => $option['attribute_code'],
                **'attribute_label' =>  $attributeLabel,**
                'options' => [],
            ];
        }

        **$result[$option['attribute_code']]['options'][$option['option_id']] = $option_Text;**
    }

    return $result;
}

Here, in format result() function I have managed such a way that if it's not set attribute and option label store wised then it will be fall back and returns default label.

[Hexmage]

@bharat1811 I did something similar to fix it for me locally. Changes to vendor/magento/module-catalog-graph-ql/DataProvider/Product/LayeredNavigation/Builder/Attribute.php were identical.

For attributeOptionProvider I did the following.

    public function getOptions(array $optionIds, array $attributeCodes = [], $storeId): array
    {
        if (!$optionIds) {
            return [];
        }

        $connection = $this->resourceConnection->getConnection();
        $select = $connection->select()
            ->from(
                ['a' => $this->resourceConnection->getTableName('eav_attribute')],
                [
                    'attribute_id' => 'a.attribute_id',
                    'attribute_code' => 'a.attribute_code',
                    'attribute_label' => 'a.frontend_label',
                ]
            )
            ->joinLeft(
                ['options' => $this->resourceConnection->getTableName('eav_attribute_option')],
                'a.attribute_id = options.attribute_id',
                []
            )
           ** ->joinLeft(
                ['label' => $this->resourceConnection->getTableName('eav_attribute_label')],
                'a.attribute_id = label.attribute_id',
                [
                    'attribute_translated_label' => 'label.value'
                ]
            ) **
            ->joinLeft(
                ['option_value' => $this->resourceConnection->getTableName('eav_attribute_option_value')],
                'options.option_id = option_value.option_id',
                [
                    'option_label' => 'option_value.value',
                    'option_id' => 'option_value.option_id',
                ]
            );

        $select->where('option_value.option_id IN (?)', $optionIds)**->where('option_value.store_id = (?)', $storeId)->where('label.store_id = (?)', $storeId)**;

        if (!empty($attributeCodes)) {
            $select->orWhere(
                'a.attribute_code in (?) AND a.frontend_input = \'boolean\'',
                $attributeCodes
            );
        }

        return $this->formatResult($select);
    }

    private function formatResult(\Magento\Framework\DB\Select $select): array
    {
        $statement = $this->resourceConnection->getConnection()->query($select);

        $result = [];
        while ($option = $statement->fetch()) {
            if (!isset($result[$option['attribute_code']])) {
                $result[$option['attribute_code']] = [
                    'attribute_id' => $option['attribute_id'],
                    'attribute_code' => $option['attribute_code'],
                    'attribute_label' => **$option['attribute_translated_label'] ??** $option['attribute_label'],
                    'options' => [],
                ];
            }
            $result[$option['attribute_code']]['options'][$option['option_id']] = $option['option_label'];
        }

        return $result;
    }

But I think your solution is better, because mine assumes that every store has translated values (which is true in my case).
