[BD-04] Create CustomTagTemplateBlock, convert TranslateCustomTagDescriptor to XBlock and remove RawDescriptor by symbolist · Pull Request #26973 · openedx/openedx-platform

symbolist · 2021-03-11T15:47:00Z

Description

Creates CustomTagTemplateBlock for use with CustomTagBlock instead of RawDescriptor.
Converts TranslateCustomTagDescriptor to TranslateCustomTagBlock.
In https://github.com/edx/edx-platform/pull/25955 HiddenDescriptor (which was a subclass of RawDescriptor with a custom student_view()) was converted to an XBlock. It is used as the default_class by the CachingDescriptorSystem classes. However RawDescriptor is still being used by XMLModuleStore. This has been replaced by HiddenDescriptor as well.
Removes RawDescriptor since it is no longer used.

Part of XModule to XBlock Conversion work.

Which edX user roles will this change impact? "Developer"

Testing Instructions

Checkout the master branch.
Create a course and import this archive:
In the course check that there are two units: the Custom Tag Unit with html, custom_tag, image and book XBlocks and the Poll Unit with a poll_question XBlock.
Go to http://localhost:18010/admin/xblock_django/xblockconfiguration/add/ and add an entry for poll_question with it set to NOT enabled.
Visit the Poll Unit and verify that the following message is shown instead of the XBlock: "ERROR: "poll_question" is an unknown component type. This component will be hidden in LMS."
Delete both the units from the Course Outline.
Checkout this branch, do pip -e common/lib/xmodule in make studio-shell and then do make lms-restart and make-studio-restart.
Import the archive again.
Check that both the Units have the same content in Studio. The poll_question XBlock should have been imported in but the error message should show in its place: "ERROR: "poll_question" is an unknown component type. This component will be hidden in LMS."
Check that both the Units are visible in LMS. Though in the Poll Unit the poll_question XBlock will be hidden.
Export the course. Check that the vertical and custom_tags dir content is the same as before. However the poll_question dir should NOT be present (because that XBlock could not be exported).

Screenshots

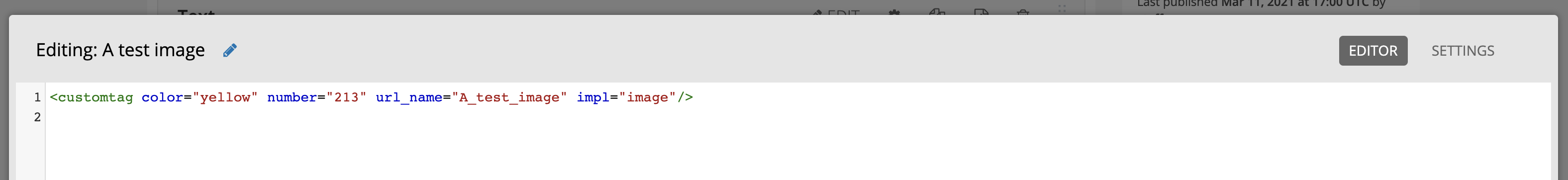

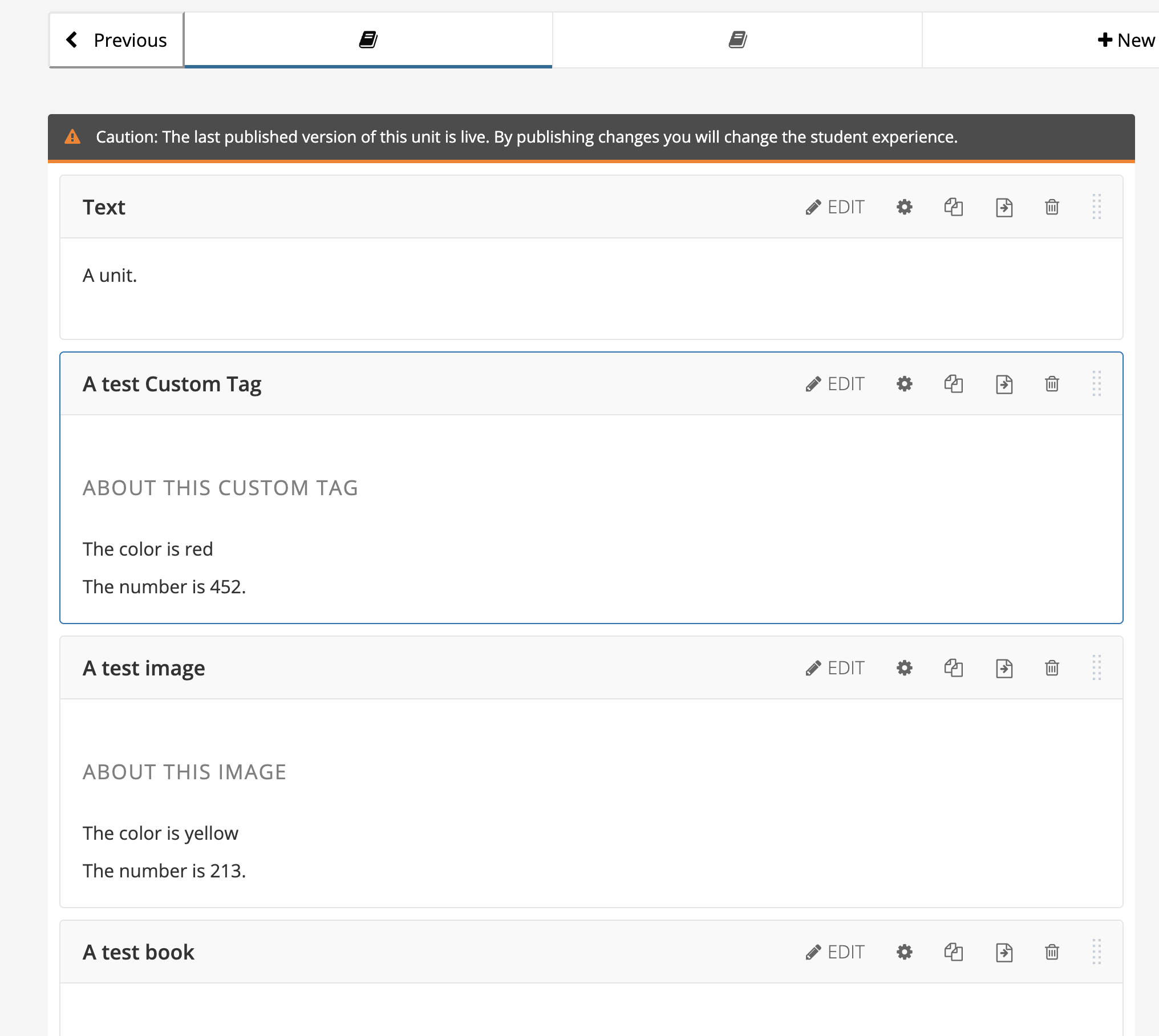

Custom Tag Unit in Studio

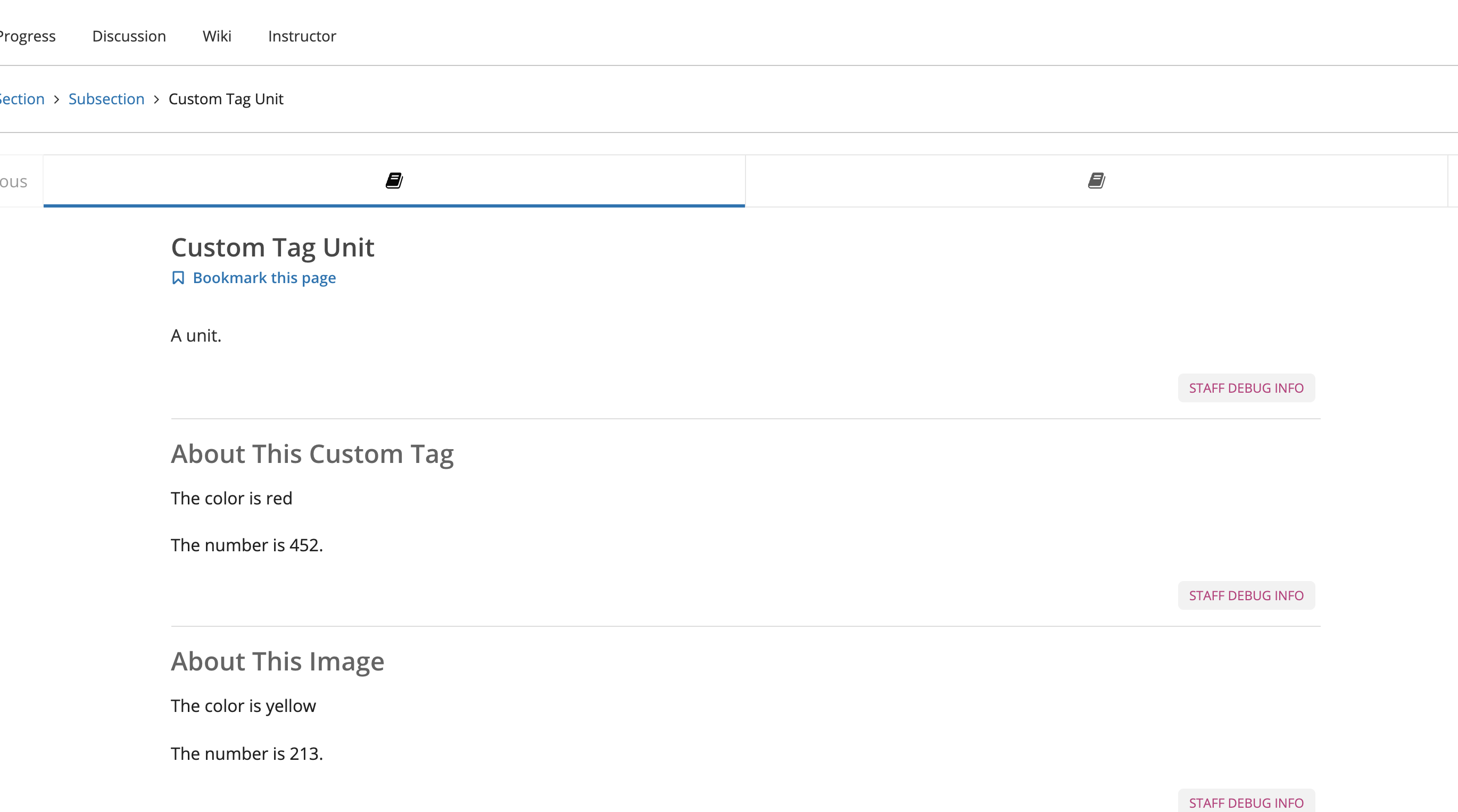

Custom Tag Unit in LMS

Poll Unit in Studio after Poll XBlock has been disabled

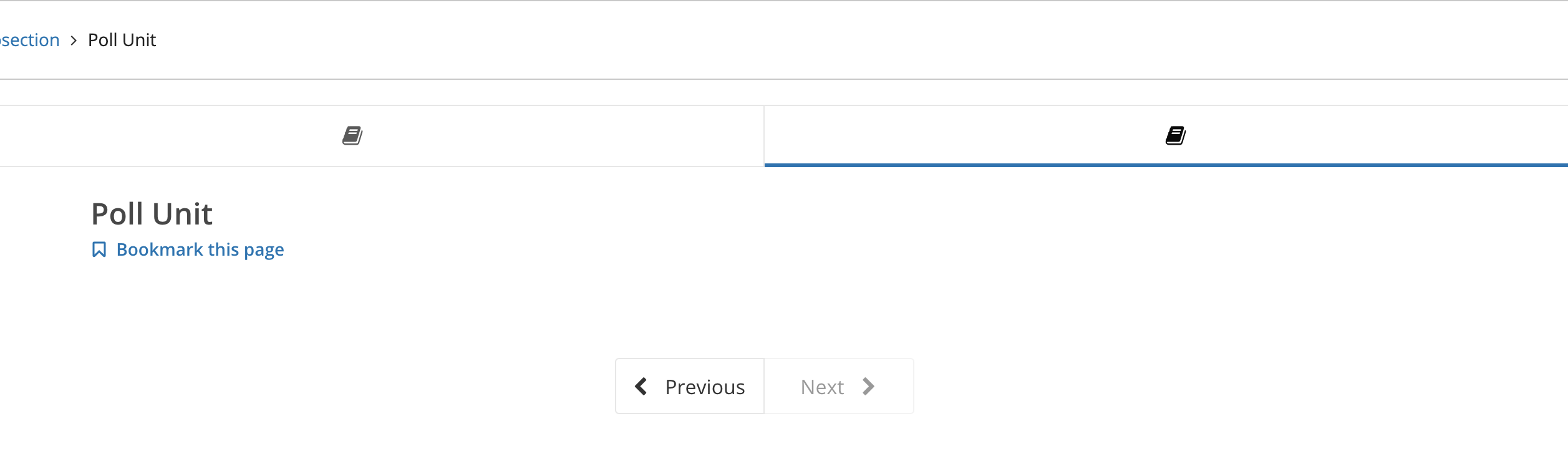

Poll Unit in LMS after Poll XBlock has been disabled

MRO Analysis

Descriptor MRO	Module MRO	Block MRO	Notes
<class 'xmodule.backcompat_module.TranslateCustomTagDescriptor'>		<class 'xmodule.template_module.TranslateCustomTagBlock'>
<class 'xmodule.x_module.XModuleDescriptor'>
<class 'xmodule.x_module.XModuleDescriptorToXBlockMixin'>		<class 'xmodule.x_module.XModuleDescriptorToXBlockMixin'>
<class 'xmodule.x_module.XModule'>
<class 'xmodule.x_module.XModuleToXBlockMixin'>	<class 'xmodule.x_module.XModuleToXBlockMixin'>
<class 'xmodule.x_module.HTMLSnippet'>	<class 'xmodule.x_module.HTMLSnippet'>		This is not needed because there are no views.
<class 'xmodule.x_module.ResourceTemplates'>			This is not needed because there are no templates.
<class 'xmodule.x_module.XModuleMixin'>	<class 'xmodule.x_module.XModuleMixin'>	<class 'xmodule.x_module.XModuleMixin'>
<class 'xmodule.x_module.XModuleFields'>	<class 'xmodule.x_module.XModuleFields'>	<class 'xmodule.x_module.XModuleFields'>
<class 'xblock.core.XBlock'>	<class 'xblock.core.XBlock'>	<class 'xblock.core.XBlock'>

openedx-webhooks · 2021-03-11T15:47:05Z

Thanks for the pull request, @symbolist! I've created BLENDED-791 to keep track of it in Jira. More details are on the BD-04 project page.

When this pull request is ready, tag your edX technical lead.

…RawDescriptor.

In https://github.com/edx/edx-platform/pull/25955 `HiddenDescriptor` (which was a subclass of `RawDescriptor` with a custom `student_view()`) was converted to an XBlock. It is used as the `default_class` by the `CachingDescriptorSystem` classes. However `RawDescriptor` is still being used by `XMLModuleStore`. This has been replaced by `HiddenDescriptor` as well.

symbolist · 2021-03-11T17:21:47Z

common/lib/xmodule/xmodule/backcompat_module.py

            return system.process_xml(etree.tostring(xml_object))
-
-
-class TranslateCustomTagDescriptor(XModuleDescriptor):  # lint-amnesty, pylint: disable=abstract-method, missing-class-docstring


Moved it to template_module.py.

symbolist · 2021-03-11T17:23:47Z

common/lib/xmodule/xmodule/template_module.py


-class CustomTagBlock(
+
+class CustomTagTemplateBlock(  # pylint: disable=abstract-method


CustomTagDescriptor inherited from RawDescriptor and custom_tag_template pointed to RawDescriptor as well. So I have made this the base class and CustomTagBlock inherited from it.

symbolist · 2021-03-11T17:25:28Z

openedx/core/lib/xblock_builtin/xblock_discussion/xblock_discussion/__init__.py


    # support for legacy OLX format - consumed by XmlParserMixin.load_metadata
-    metadata_translations = dict(RawDescriptor.metadata_translations)
+    metadata_translations = dict(XmlParserMixin.metadata_translations)


metadata_translations is specified in only two places: XModuleDescriptorToXBlockMixin and XmlParserMixin. Both have the same values.

symbolist · 2021-03-11T17:31:56Z

@ormsbee @kdmccormick Hopefully this is going to be the last one! It is ready for review. 🙂

kdmccormick · 2021-03-11T17:44:44Z

Wohoo! We'll take a look soon 😄

ormsbee · 2021-03-11T17:50:52Z

So way back when the behavior when you tried to import something that was completely unrecognized (like a <foo> tag with a url_name and some basic fields) and then re-exported that, it should preserve the content exactly as is. The RawDescriptor would dump the raw XML into a field and spit it back out again on export. That still works, right?

edx-status-bot · 2021-03-11T17:55:07Z

Your PR has finished running tests. There were no failures.

symbolist · 2021-03-11T21:46:11Z

@ormsbee

There are two cases of that and I am afraid both are kind of broken:

If an XBlock is installed but disabled and a course import includes it: it seems the ImportSystem is not loading or receiving the disabled_xblocks setting. This causes the disabled XBlock class to be loaded here and so the definition_from_xml() of the XBlock to be called instead of the one in RawMixin which means the data field does not get set. However on export RawMixin.definition_to_xml() is called which returns from here.
If the XBlock is not installed at all: I do see RawMixin. definition_from_xml () getting called. However, it causes the Studio content views to stop working with the following error (this is a known error as far as I understand):

  File "/edx/app/edxapp/venvs/edxapp/lib/python3.8/site-packages/django/core/handlers/exception.py", line 34, in inner
    response = get_response(request)
  File "/edx/app/edxapp/venvs/edxapp/lib/python3.8/site-packages/django/core/handlers/base.py", line 115, in _get_response
    response = self.process_exception_by_middleware(e, request)
  File "/edx/app/edxapp/venvs/edxapp/lib/python3.8/site-packages/django/core/handlers/base.py", line 113, in _get_response
    response = wrapped_callback(request, *callback_args, **callback_kwargs)
  File "/usr/lib/python3.8/contextlib.py", line 75, in inner
    return func(*args, **kwds)
  File "/edx/app/edxapp/venvs/edxapp/lib/python3.8/site-packages/django/views/decorators/http.py", line 40, in inner
    return func(request, *args, **kwargs)
  File "/edx/app/edxapp/venvs/edxapp/lib/python3.8/site-packages/django/contrib/auth/decorators.py", line 21, in _wrapped_view
    return view_func(request, *args, **kwargs)
  File "/edx/app/edxapp/edx-platform/cms/djangoapps/contentstore/views/component.py", line 171, in container_handler
    xblock_info = create_xblock_info(xblock, include_ancestor_info=is_unit_page)
  File "/edx/app/edxapp/edx-platform/cms/djangoapps/contentstore/views/item.py", line 1222, in create_xblock_info
    'edited_on': get_default_time_display(xblock.subtree_edited_on) if xblock.subtree_edited_on else None,
  File "/edx/app/edxapp/edx-platform/common/lib/xmodule/xmodule/modulestore/edit_info.py", line 41, in subtree_edited_on
    return self.runtime.get_subtree_edited_on(self)
  File "/edx/app/edxapp/edx-platform/common/lib/xmodule/xmodule/modulestore/split_mongo/caching_descriptor_system.py", line 327, in get_subtree_edited_on
    self._compute_subtree_edited_internal(
  File "/edx/app/edxapp/edx-platform/common/lib/xmodule/xmodule/modulestore/split_mongo/caching_descriptor_system.py", line 362, in _compute_subtree_edited_internal
    child_data = self.get_module_data(BlockKey(*child), course_key)
  File "/edx/app/edxapp/edx-platform/common/lib/xmodule/xmodule/modulestore/split_mongo/caching_descriptor_system.py", line 160, in get_module_data
    raise ItemNotFoundError(block_key)
xmodule.modulestore.exceptions.ItemNotFoundError: BlockKey(type='poll_question', id='poll1')

This behavior hasn't changed in this PR and was the same before https://github.com/edx/edx-platform/pull/25955 (multiple people tested the behavior as part of the testing instructions).

ormsbee · 2021-03-11T23:05:23Z

Ugh. Okay. Well, as long as this isn't a regression, I'm definitely not going to hold it up over that.

There's so much we need to fix in the whole import/export stack of things... 🔧

ormsbee · 2021-03-11T23:30:27Z

I'll merge this in the morning.

edx-pipeline-bot · 2021-03-12T15:47:19Z

EdX Release Notice: This PR has been deployed to the staging environment in preparation for a release to production.

edx-pipeline-bot · 2021-03-12T16:14:31Z

EdX Release Notice: This PR has been deployed to the production environment.
