Several enhancements and refactors to CourseGraph by kdmccormick · Pull Request #29156 · openedx/openedx-platform

kdmccormick · 2021-10-28T17:17:02Z

Description

In order to learn Tutor, I began working on a CourseGraph plugin for Tutor. The work-in-progress plugin is here. In doing so, a couple CourseGraph pitfalls became apparent:

The management command for refreshing CourseGraph from CMS (./manage.py cms dump_to_neo4j) was very clunky: it had several arguments that needed to be specified every time the command was called (instead of falling back to reasonable defaults). Furthermore, it did not provide documentation for those arguments to command-line users; one would have to go diving in the code to find details on each argument.
The management command was advertised as available from both LMS and CMS context, but only worked reliably across environments in a CMS context.
Needing to run a management command to push courses to CourseGraph at all seemed like an anti-pattern. It would be much easier for operators if CourseGraph could be refreshed from Django admin, or better yet, completely automatically whenever a course is published.

This PR fixes all three of those issues across six commits, which I recommend reviewing individually. Each commit includes more technical details in its body.

This PR depends on openedx-unsupported/devstack#899.

Supporting information

New dump_to_neo4j command-line helptext:

app@2a67edc990cc:~/edx-platform$ ./manage.py cms dump_to_neo4j --help

(.... CMS startup noise ...)

usage: manage.py dump_to_neo4j [-h] [--host HOST] [--port PORT] [--secure] [--user USER] [--password PASSWORD] [--courses [KEY [KEY ...]]] [--skip [KEY [KEY ...]]] [--override] [--version] [-v {0,1,2,3}]
                               [--settings SETTINGS] [--pythonpath PYTHONPATH] [--traceback] [--no-color] [--force-color] [--skip-checks]

Dump recently-published course(s) over to a CourseGraph (Neo4j) instance.

optional arguments:
  -h, --help            show this help message and exit
  --host HOST           the hostname of the Neo4j server
  --port PORT           the port on the Neo4j server that accepts Bolt requests
  --secure              connect to server over Bolt/TLS instead of plain unencrypted Bolt
  --user USER           the username of the Neo4j user
  --password PASSWORD   the password of the Neo4j user
  --courses [KEY [KEY ...]]
                        keys of courses to serialize; if omitted all courses in system are serialized
  --skip [KEY [KEY ...]]
                        keys of courses to NOT to serialize
  --override            dump all courses regardless of when they were last published
  --version             show program's version number and exit
  -v {0,1,2,3}, --verbosity {0,1,2,3}
                        Verbosity level; 0=minimal output, 1=normal output, 2=verbose output, 3=very verbose output
  --settings SETTINGS   The Python path to a settings module, e.g. "myproject.settings.main". If this isn't provided, the DJANGO_SETTINGS_MODULE environment variable will be used.
  --pythonpath PYTHONPATH
                        A directory to add to the Python path, e.g. "/home/djangoprojects/myproject".
  --traceback           Raise on CommandError exceptions
  --no-color            Don't colorize the command output.
  --force-color         Force colorization of the command output.
  --skip-checks         Skip system checks.
app@2a67edc990cc:~/edx-platform$

The new admin interface, showing a CourseOverviews-backed table, from which sets of courses can be dumped to CourseGraph:

Messaging when successful:

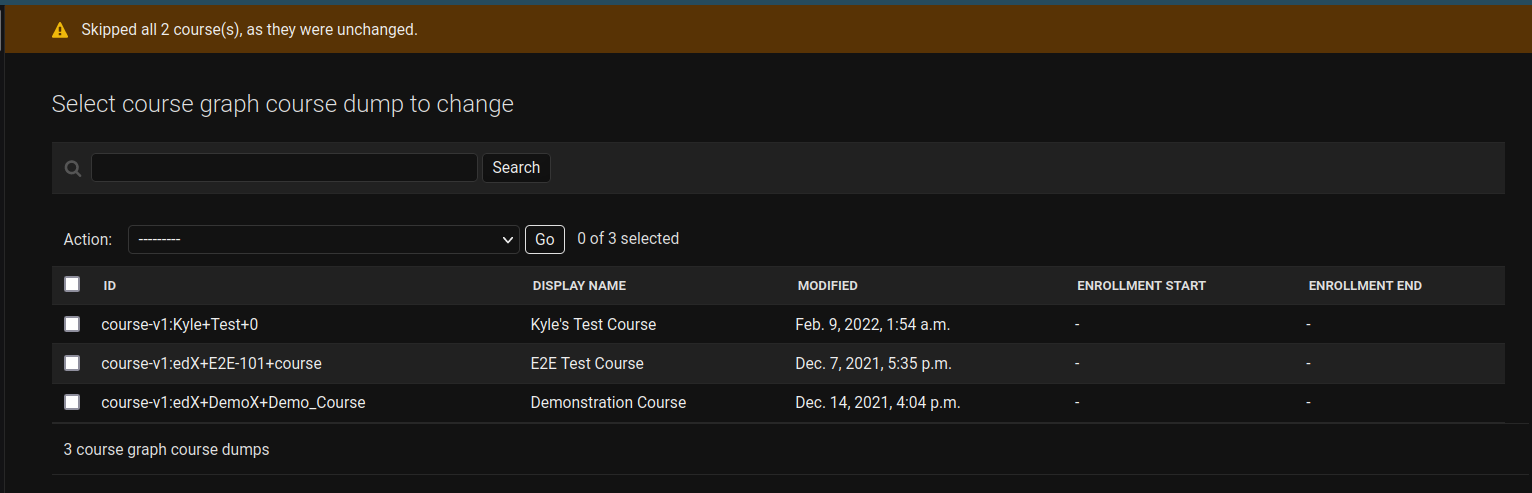

Messaging when there's nothing to do:

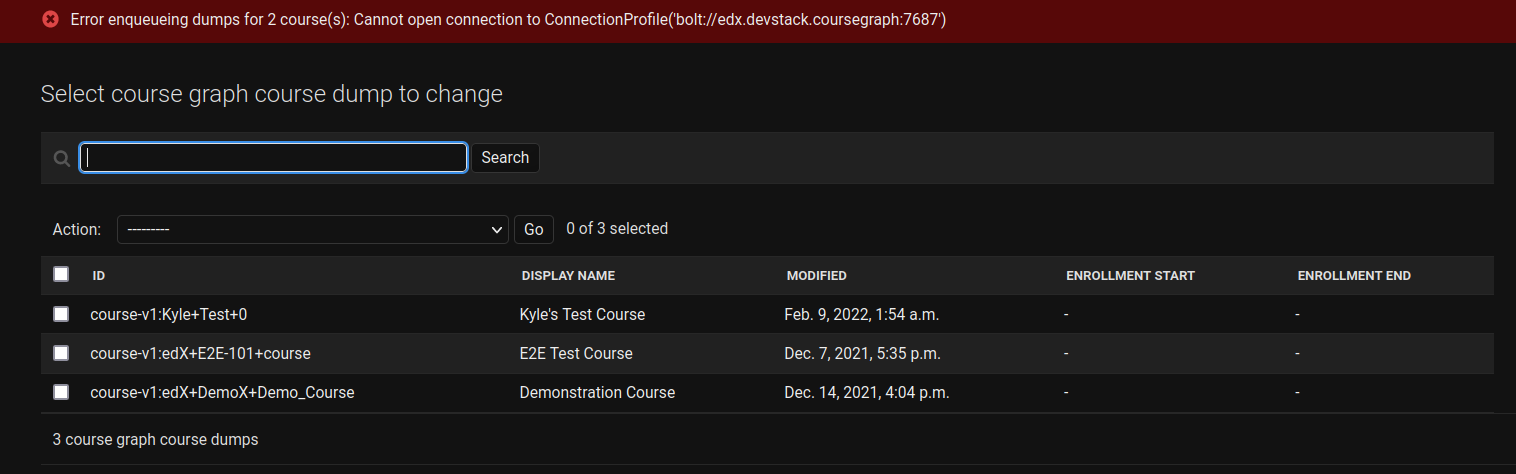

Messaging when there was an error (eg, bad Neo4j connection parameters):

Testing instructions

Here are some test suggestions, although I encourage you to mess around with the new features.

Setup

Check out this PR's edx-platform branch.
Check out this devstack branch: openedx-unsupported/devstack#899

From devstack, run make dev.provision.coursegraph.
Visit http://localhost:7474, and log into Neo4j with username neo4j and password edx.

In Studio, find a course you can make some arbitrary edits to.

Test management command

Run ./manage.py cms dump_to_neo4j.
From Neo4j, run a query. For example, this one just counts all blocks in all courses: MATCH (b) RETURN count(b).
Add a block to your course and publish.
Run your query again. The change shouldn't be manifested in CourseGraph yet.
Run ./manage.py cms dump_to_neo4j again.
Run your query again. The change should be manifested in CourseGraph.

Test admin action

Go to Studio admin and find "Course graph course dumps".
Select your course and dump it (respecting cache). You should be notified that your course was skipped.
Add a block to your course and publish.
Dump your course again. You should be notified that a dump was enqueued for your course.
Dump your course again (overriding cache). You should be notified that a dump was enqueued for your course.
Bring down coursegraph: make dev.down.coursegraph.
Dump your course again. You should be notified that a connection error occurred.
Bring coursegraph back up: make dev.up.coursegraph.

Test auto push

Edit the file cms/envs/private.py, creating it if it doesn't exist.
Add COURSEGRAPH_DUMP_COURSE_ON_PUBLISH = True. Reboot CMS: make studio-restart-devserver.
Add a block to your course and publish.
Run your CourseGraph query again. The change should be manifested in CourseGraph without having to use the management command or the admin interface!

Other information

Blocker: devstack PR

This small devstack PR needs to be reviewed & merged first: openedx-unsupported/devstack#899

edX operational simplifications

This change would allow 2U-OCM/edX to make some operational simplifications if they wanted to (although their current setup should keep working fine as-is):

By configuring COURSEGRAPH_CONNECTION in prod-edx-edxapp-cms, the new admin interface could be used to backfill courses into CourseGraph whenever necessary.
By further enabling COURSEGRAPH_DUMP_ON_COURSE_PUBLISH in prod-edx-edxapp-cms, courses would be automatically & continuously pushed to CourseGraph upon publish.

Together, these changes would allow edX to decommission their CourseGraph Jenkins jobs.

The README

The CourseGraph readme will still be accurate after this change, but it'll be missing the new capabilities that this PR adds. I plan on overhauling it all in one go once the CourseGraph Tutor plugin is ready to go.

edx-status-bot · 2021-10-28T17:34:28Z

Your PR has finished running tests. The following contexts failed:

jenkins/django-3.2/quality
jenkins/python
jenkins/django-3.2/python

kdmccormick · 2022-02-09T01:22:45Z

cms/djangoapps/coursegraph/management/commands/tests/test_dump_to_neo4j.py

-from cms.djangoapps.content.block_structure.signals import update_block_structure_on_course_publish
+from openedx.core.djangoapps.content.block_structure.signals import update_block_structure_on_course_publish


Note: Fixes a mistake from the previous commit.

kdmccormick · 2022-02-09T01:26:20Z

cms/djangoapps/coursegraph/management/commands/tests/test_dump_to_neo4j.py

+        self.setup_mock_graph(
+            mock_matcher_class, mock_graph_class
+        )


Note: This enhances a test introduced in previous commit. With the changes to get_course_last_published in this commit, more real code paths are hit, so we need to set up a mock graph.

doctoryes · 2022-03-28T18:10:05Z

@kdmccormick Change of plans: I'm going to merge this PR tomorrow (Tue 3/28). I just made a logging update to coursegraph and I want to see the results of that change in tonight's run before merging your PR. I will update you as I proceed.

kdmccormick · 2022-03-28T22:33:32Z

I just added a single additional commit, approved separately in this PR, that updates some CourseGraph documentation (no code changes).

This code was originally located at: ./openedx/core/djangoapps/coursegraph However, code makes more sense within the ./cms tree, because: * it is responsible for publishing course content to an external system, with is within the responsibilities of CMS, and * is uses modulestore, which is discouraged for use in LMS (see 0011-limit-modulestore-use-in-lms.rst). So, we move the code to: ./cms/djangoapps/coursegraph and uninstall coursegraph from LMS. We do not expect this refactor to have any breaking downstream effects.

Move most docs out of docstring and into programatically- displayable argument help text. Also, the 'Example Usage' was out of date. This commit updates it to: * use `./manage.py cms ...' instead of `./manage.py lms ...', and * use `--port` instead of `--https_port`.

Introduce a new CMS settings COURSEGRAPH_CONNECTION, which allows operators to specify default connection paramters for a Neo4j instance. This has three purposes: * The `./manage.py cms dump_to_neo4j` management command will be much easier for developers and operators to type out because connection arguments can now be omitted. Note that connection arguments, if supplied, will override the arguments specified in CMS settings. * The automatic push-to-coursegraph-on-publish-signal introduced in subsequent commits can use these connection settings. * The CourseGraph Django admin actions introduced in subsequent commits can use these connection settings.

Previously, CourseGraph needed to be kept up-to-date by running `./manage.py dump_to_neo4j ...` manually or on a cron timer. This introduces a CMS new setting: COURSEGRAPH_DUMP_COURSE_ON_PUBLISH. When enabled, the CMS course_published signal handler will asynchronously dump each individual course to CourseGraph when it is published. This follows a pattern established by other subsystems like learning_sequences and special exam registration, both of which fire off asynchronous post-processing tasks from the course- publish handler.

The `get_course_last_published` function is used by CourseGraph to determine whether or not a course should be dumped to Neo4j. If the course hasn't been published since it was last dumped to Neo4j, then it can be skipped (unless the override_cache option is enabled). The function was previously built using the BlockStructure data model. While this worked fine in Production instances that enable `block_structure.storage_backing_for_cache`, this implementation did NOT work in development environments, which do not use the BlockStrcture model. Instead, we switch to using CourseOverview.modified to approximate when a course was last published. This is method has fewer moving parts and is universally available across instances.

This introduces two admin actions: * Dump to CourseGraph (respect cache), and * Dump to CourseGraph (override cache) which allow admins to select a collection of courses from Django admin and dump them to the Neo4j instance specified by settings.COURSEGRAPH_CONNECTION, with or without respecting the cache (that is: whether the course has already been dumped since its last publishing).

Update the README of the CMS's CourseGraph support app: * Point to the newly-developed CourseGraph plugin for Tutor, and remove some prose that's now redundant with the Tutor plugin's README. * Add a link to the now-public CourseGraph Queries wiki page. * Capitalize the G in CourseGraph. * Fix a couple misc. formatting things.

edx-pipeline-bot · 2022-03-29T16:24:18Z

EdX Release Notice: This PR has been deployed to the staging environment in preparation for a release to production.

edx-pipeline-bot · 2022-03-29T16:47:25Z

EdX Release Notice: This PR may have caused e2e tests to fail on Stage. If you're a member of the edX org, please visit #e2e-troubleshooting on Slack to help diagnose the cause of these failures. Otherwise, it is the reviewer's responsibility. E2E tests have failed. https://gocd.tools.edx.org/go/tab/pipeline/history/deploy_to_stage

edx-pipeline-bot · 2022-03-29T17:36:39Z

EdX Release Notice: This PR has been deployed to the production environment.

kdmccormick · 2022-03-30T14:26:07Z

Hey @doctoryes , did you hit any trouble running a CourseGraph refresh?

doctoryes · 2022-03-30T14:31:04Z

@kdmccormick I'm unable to trigger a refresh myself due to Jenkins permissions. I considered writing an SRE ticket - but I'm on-call next week when the next run will occur. So my current plan is to fix forward any problems at that point.

One question: I assume that an app-permissions PR will need to give the coursegraph:coursegraphcoursedump:change_coursegraphcoursedump permission to folks who want to access the admin interface?

kdmccormick · 2022-03-30T14:33:06Z

@doctoryes Sounds good! And yup, that's correct.

* build: update pylint-checks ci workflow * fix: fix quality failures with new pylint version * chore: remove pylint constraint * chore: Updating Python Requirements (#30196) Co-authored-by: edX requirements bot <49161187+edx-requirements-bot@users.noreply.github.com>

Coursegraph was moved from openedx to cms in commit 92552e5/PR #29156; module init file was reintroduced in commit 80f9f1d/PR #30197, I think by accident.

…t) (#30273) Coursegraph was moved from openedx to cms in commit 92552e5/PR #29156; module init file was reintroduced in commit 80f9f1d/PR #30197, I think by accident.

…t) (#30273) Coursegraph was moved from openedx to cms in commit 92552e5/PR #29156; module init file was reintroduced in commit 80f9f1d/PR #30197, I think by accident. Cherry-picked from 8bcec1a

…t) (#30273) (#30296) Coursegraph was moved from openedx to cms in commit 92552e5/PR #29156; module init file was reintroduced in commit 80f9f1d/PR #30197, I think by accident. Cherry-picked from 8bcec1a

…t) (#30273) Coursegraph was moved from openedx to cms in commit 92552e5/PR #29156; module init file was reintroduced in commit 80f9f1d/PR #30197, I think by accident.
