Wireframes

A lightweight 3D rendering engine in Clojure & ClojureScript.

Adapted and extended from a javascript demo (originally by Kragen Javier Sitaker, see references below) into a Clojure/ClojureScript library (that renders to SVG, an HTML5 Canvas or a Graphics2D object - depending on the runtime environment, obviously).

This started out as a experiment to plot Lorenz attractors in 3D space, but it turns out to be a really simple way to programmatically generate three dimensional geometric shapes - basically a programmable CAD system - I'm pretty sure that AutoCAD could already do this (and much quicker too), but where I would really like to go with this is:

• build up a robust and idiomatic Clojure API for generating shapes
• implement a wide variety of output renderers - potentially even a GLSL cross-compiler and certainly a gcode output formatter suitable for 3D printers
• maintain 100% compatibility with ClojureScript

As this is a software renderer, please don't expect OpenGL levels of performance (or until WebGL and OpenGL renderers have been written).

A variety of (in-progress) generated shapes and demos:

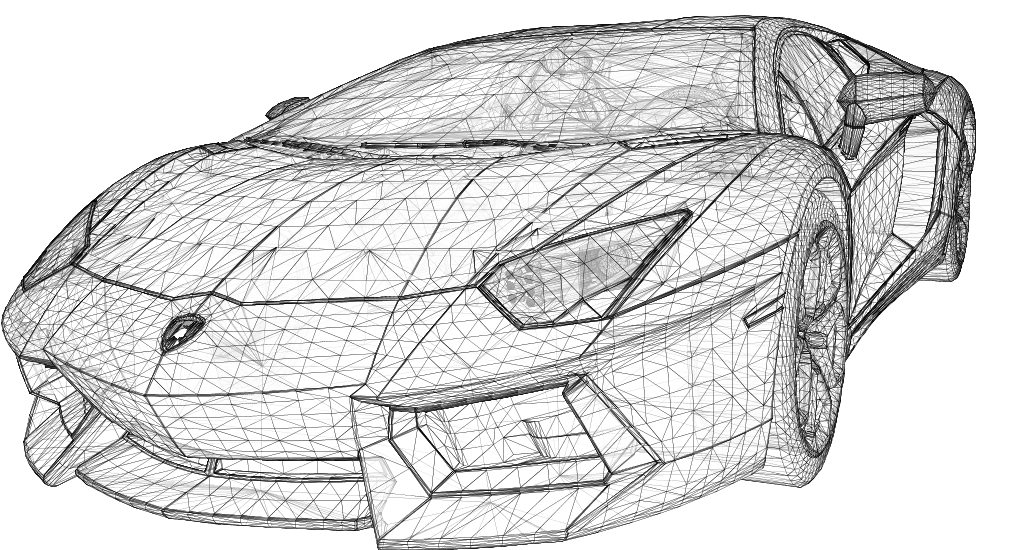

• A gallery of some shapes and imports from common 3D formats,
• An animated torus tumbling in 3D space, and other shapes,
• A taxonomy of 3D polyhedra.

Pre-requisites

You will need Leiningen 2.3.4 or above installed.

Building

To build and install the library locally, run:

$ lein test
$ lein install

To re-generate the examples in the doc/gallery directory, run:

$ lein test :examples

Including in your project

There is an 'alpha-quality' version hosted at Clojars. For leiningen include a dependency:

[rm-hull/wireframes "0.0.1-SNAPSHOT"]

For maven-based projects, add the following to your pom.xml:

<dependency>
  <groupId>rm-hull</groupId>
  <artifactId>wireframes</artifactId>
  <version>0.0.1-SNAPSHOT</version>
</dependency>

Basic Usage

See the API Documentation.

Creating shapes

There are some drawing primitives in the wireframes.shapes namespace to create objects such as lines, bezier curves, polygons, circles, cuboids, cylinders and torus shapes.

The basic mechanism for building shapes is extrusion. For example, to create a cube, start with a square polygon in the X-Y plane, and extrude that shape into a line along the Z-axis, as per the following code:

(use 'wireframes.shapes.primitives)

(->
  (make-polygon
    (make-point 0 0 0)
    (make-point 0 1 0)
    (make-point 1 1 0)
    (make-point 1 0 0))
  (extrude (translate 0 0 1) 1))

Drawing shapes

There are various software renderers in the wireframes.renderer namespace for output to java images, SVG or HTML5 canvas (the availability of which combinations depends on whether you are executing the code in Clojure or ClojureScript).

Clojure

For example, in Clojure, to generate a torus angled in the Y- and Z-axles, written out to a PNG file:

(use 'wireframes.shapes.curved-solids)
(use 'wireframes.transform)
(use 'wireframes.renderer.bitmap)
(use 'wireframes.renderer.color)

(write-png
  (->img
    #(draw-solid
      {:focal-length 3
       :color-fn (wireframe :white :transparent)
       :style :transparent
       :transform (combine
                    (rotate :z (degrees->radians 65))
                    (rotate :y (degrees->radians -30))
                    (translate 0 0 16))
       :shape (make-torus 1 3 60 60)} %)
    [400 400])
  "torus-65.png")

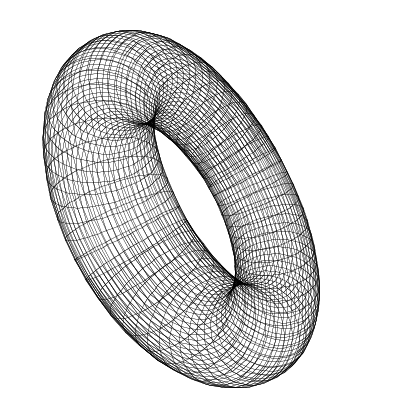

Produces:

Surfaces and other primitives

MATLAB-style function plots can be generated thus:

(use 'wireframes.shapes.primitives)
(use 'wireframes.transform)
(use 'wireframes.renderer.bitmap)
(use 'wireframes.renderer.lighting)
(use 'wireframes.renderer.color)

(defn sqr [x]
  (* x x))

(defn sinc
  "Unnormalized/cardinal sine function"
  [x] (if (zero? x)
        1.0
        (/ (Math/sin x) x)))

(defn sombrero [x y]
  (* 15 (sinc (Math/sqrt (+ (sqr x) (sqr y ))))))

(write-png
  (->img
    #(draw-solid
      {:focal-length 30
       :color-fn (comp
                   black-edge                         ; [1]
                   (positional-lighting-decorator     ; [2]
                     default-position
                     (spectral-z -6.5 15)))           ; [3]
       :style :shaded
       :transform (combine
                    (rotate :z (degrees->radians 15))
                    (rotate :x (degrees->radians 135))
                    (scale 0.05)
                    (translate 0 0 10))
       :shape (make-surface                           ; [4]
                (range -22 22 0.25)
                (range -22 22 0.25)
                sombrero)} %)                        ; [5]
    [600 600])
  "sinc3D.png")

Results in:

Program Notes

TODO

Loading common 3D shape files

The defacto/clichéd Utah teapot (or any patch/vertex 3D file) can be loaded in with the following code sample:

(use 'wireframes.shapes.patch-loader)
(use 'wireframes.renderer.bitmap)
(use 'wireframes.transform)

(write-png
  (->img
    #(draw-solid
      {:focal-length 10
       :fill-color Color/WHITE
       :style :translucent
       :transform (combine
                    (rotate :z (degrees->radians 35))
                    (rotate :x (degrees->radians -70))
                    (translate 0 -1 40))
       :shape (load-shape "resources/newell-teapot/teapot")} %)
    [1000 900])
  "teapot.png")

which generates:

The following file formats support loading:

• Patch files in the wireframes.shapes.patch-loader namespace,
• Wavefront .obj files in the wireframes.shapes.wavefront-loader namespace,
• Stereolithography .stl files in the wireframes.shapes.stl-loader namespace

Saving 3D shapes to STL-format files

Once generated or loaded by whatever means, a shape may be persisted in STL format with the following code sample:

(use 'wireframes.shapes.stl-loader)
(use 'wireframes.shapes.curved-solids)

(save-shape
  (make-torus 1 3 60 60)
  "a description which will get truncated to 80 chars"
  "doc/gallery/torus.stl")

This specific torus, the teapot and a wineglass can then be viewed using the GitHub 3D viewer.

TODO

• Investigate using primitive arrays (see array branch)
• Use/implement a vector library
• Geometric extension with Minkowski addition (see http://projecteuler.net/problem=228)
• Efficiently calculate polygons on extruded shapes
• Rewrite/rename wireframes.transform/concat - unroll loops for performance
• Complete Bezier patch code
• Rectilinear perspective mapping
• Stitch adjacent surface panels together
• Renderer implementations:
  • Graphics2D
  • SVG
  • Canvas
  • WebGL
  • OpenGL
• Simple flat shading / lighting
• Configurable lighting position(s)
• Colours
• Gourand shading
• Texture mapping
• Backface removal
• Z-buffer
• Polygon inflation
• Compute shape bounds
• Center shape at origin function
• gcode generation for 3D printers
• Support loading from & saving to .stl files
• Support loading from Wavefront .obj files
• Deprecate :lines - no longer used except in platonic solids
• Improve documentation
• Examples
• MATLAB style surface functions
• Integrate Inkspot & custom vertex/fragment shader
• Constructive Solid Geometry (CSG) boolean operators

Known Bugs

See open issues.

References

• http://lists.canonical.org/pipermail/kragen-hacks/2007-February/000448.html
• http://www.sjbaker.org/wiki/index.php?title=The_History_of_The_Teapot
• http://www.scratchapixel.com/lessons/3d-basic-lessons/lesson-11-rendering-the-teapot-bezier-surfaces/b-zier-surface/
• https://en.wikipedia.org/wiki/Rotation_matrix#Basic_rotations
• https://www.mathdisk.com/pub/safi/worksheets/Perspective_Projection
• http://www.cs.berkeley.edu/~jrs/mesh/
• http://www.victoriakirst.com/beziertool/
• https://en.wikipedia.org/wiki/Wavefront_.obj_file
• https://en.wikipedia.org/wiki/STL_(file_format)
• https://github.com/colah/ImplicitCAD
• http://evanw.github.io/csg.js/
• http://www.opengl.org/wiki/Calculating_a_Surface_Normal
• http://www.cs.utah.edu/~xchen/columbia/session1/lec24/html/
• http://www.3dcadbrowser.com/3dmodels.aspx?word=star%20wars
• http://derek.troywest.com/articles/by-example-gloss/
• http://doc.cgal.org/latest/Manual/packages.html
• http://stackoverflow.com/questions/3749678/expand-fill-of-convex-polygon
• http://stackoverflow.com/questions/1109536/an-algorithm-for-inflating-deflating-offsetting-buffering-polygons
• https://github.com/tsaastam/cljs-webgl-example
• http://www.cs.arizona.edu/classes/cs437/fall11/ch3d.prn.pdf
• https://github.com/rm-hull/project-euler/blob/master/src/util/geometry.clj#L55

Contributing

You're more than welcome to pitch in, there are loads of interesting computational geometry features I'd like to implement (as well as a few bugs to squash) - take a look at the TODO list and the references above.

If there's any you feel you'd specifically like to have a go at, create an issue and I'll back-fill it with some background information to get you going, and it can then be used as the discussion focus.

Fork the repo, create a feature branch and once the feature is complete, submit a pull request. Also, please try and add some tests where practical (demo's and examples even more so) and keep this README up-to-date, and make sure you've pulled from origin master before doing a PR.
