added images to nearest neighbors list

[beasteers]

• Motivation for features / changes

This is in reference to something in #2492. I'm working with image data (audio spectrograms, tbe) and I'm trying to visualize them with the embedding projector, but due to the transparency in the sprite textures and them just being small, it makes it difficult to actually make sense of and visualize neighboring points. So I wanted to add some view that allows us to see the images larger, more organized, without the shaders.

• Technical description of changes

I added the sprite images over each item in the nearest neighbor list (that pops up when you select a point).
I also added a checkbox to toggle this feature which will only be shown if a sprite image file is available.
It uses css background-image/position to load the image, and uses the singleImageDim to calculate and give the div the proper aspect ratio.

Sometimes it takes a second to show the images. I would have thought it would be cached from when it was loaded for THREE.js, but it's only a second so it's not too bad.

One solution could be lazy loading the divs (see IntersectionObserver), which I considered doing. It's not yet supported for Internet Explorer 8, (which like, why haven't ppl downloaded chrome or firefox or something, anything else.. 😝) so I figured I'd hold off before tying in the polyfill and all that.

I also fixed a bug where the nearest neighbors list wasn't scrolling (that was a problem before I started) - I just added flex params to the containers that needed it.

• Screenshots of UI changes

• Detailed steps to verify changes work correctly (as executed by you)

Create a tensorboard run where you send your embeddings to the projector. My projector_config.pbtxt looks like this:

# projector_config.pbtxt
embeddings {
  tensor_name: "nat_embedding:0"
  metadata_path: "meta.txt"
  sprite {
    image_path: "sprite.png"
    single_image_dim: 256
    single_image_dim: 256
  }
}

Open the embedding projector and click on a point. This should open up the nearest neighbors panel, where you should see your sprites visible 🌈

• Alternate designs / implementations considered

I still find it difficult to browse the images without zooming out far because they are all vertical and you can only look at a couple at a time, so having some way to expanding to multiple columns would be helpful. The two ways that I could see it working would be:
- have the panel be expandable (drag the edge)
- add a modal popup that shows some 6/8/12 column grid which could give us 20-50 on a page depending on how you like your zoom.

There are a few more things that I think we could do:

• metadata-info is a very similar panel, but I haven't duplicated the code to have it handle both. Seeing as they are very similar, I think a good move could be to combine updateNeighborsList and metadataEditorContext using more general class names, because they are almost the same interface.
• add an option to use a metadata column to provide "full scale" image links in the case where the sprites are too small. The big concern with this is that we'd definitely need to add lazy loading for this and potentially also decrease the default number of nearest neighbors.

[googlebot]

Thanks for your pull request. It looks like this may be your first contribution to a Google open source project (if not, look below for help). Before we can look at your pull request, you'll need to sign a Contributor License Agreement (CLA).

📝 Please visit https://cla.developers.google.com/ to sign.

Once you've signed (or fixed any issues), please reply here with @googlebot I signed it!) and we'll verify it.

---

What to do if you already signed the CLA

Individual signers

• It's possible we don't have your GitHub username or you're using a different email address on your commit. Check your existing CLA data and verify that your email is set on your git commits.

Corporate signers

• Your company has a Point of Contact who decides which employees are authorized to participate. Ask your POC to be added to the group of authorized contributors. If you don't know who your Point of Contact is, direct the Google project maintainer to go/cla#troubleshoot (Public version).
• The email used to register you as an authorized contributor must be the email used for the Git commit. Check your existing CLA data and verify that your email is set on your git commits.
• The email used to register you as an authorized contributor must also be attached to your GitHub account.

ℹ️ Googlers: Go here for more info.

[beasteers]

@googlebot I signed it!

[googlebot]

We found a Contributor License Agreement for you (the sender of this pull request), but were unable to find agreements for all the commit author(s) or Co-authors. If you authored these, maybe you used a different email address in the git commits than was used to sign the CLA (login here to double check)? If these were authored by someone else, then they will need to sign a CLA as well, and confirm that they're okay with these being contributed to Google.
In order to pass this check, please resolve this problem and then comment @googlebot I fixed it.. If the bot doesn't comment, it means it doesn't think anything has changed.

ℹ️ Googlers: Go here for more info.

[wchargin]

Thanks for the PR! Could you please add the email used for the Git
commits (a gmail.com address) to your GitHub account?

You can run yarn fix-lint to fix the lint errors and make the build
happy. (Run just yarn first if you haven’t done that yet.)

[googlebot]

CLAs look good, thanks!

ℹ️ Googlers: Go here for more info.

[wchargin]

This feature looks great and works in my testing—thanks for sending!

We typically prefer to manage pieces of state like “is image data
available?” and “show neighbor images?” as part of the Polymer component
rather than manually with event listeners and display: none CSS. For
instance, the HTML for the toggle should look something like this:

<template is="dom-if" if="[[neighborImagesAvailable]]">
  <paper-checkbox checked="{{showNeighborImages}}">
    …
  </paper-checkbox>
</template>

You’ll want to define neighborImagesAvailable as a Polymer property
(possibly a computed property?), and similarly for showNeighborImages.
Then, whenever the checkbox state changes, showNeighborImages will be
updated. You can register a Polymer observer such that changes to the
showNeighborImages and neighborImagesAvailable properties cause the
updateNeighborsList function to be invoked.

The purpose of this refactoring is to ensure that each piece of state
has a single source of truth, so that the JS state and the DOM are
automatically kept in sync.

You can look at other components for examples, or consult the Polymer
docs for a reference. (We use Polymer 2.x.) And, of course, feel free to
ask any questions.

A couple minor implementation notes inline.

not yet supported for Internet Explorer 8

No problem; we target latest Chrome and Firefox.

Sometimes it takes a second to show the images […] One solution could
be lazy loading the divs

Let’s hold off on that for now, unless and until the performance starts
to be a real concern. Lazy loading is likely a good approach, but is
complexity that I’d like to avoid if possible.

provide "full scale" image links in the case where the sprites are too
small

If I understand correctly, there’s only one image file (a sprite sheet),
right? so this would need some image processing (probably on the server)
to extract the correct sprite and serve it as a standalone image file?

I also fixed a bug where the nearest neighbors list wasn't scrolling
(that was a problem before I started) - I just added flex params to
the containers that needed it.

Thanks! If possible, could you open a separate PR for this? This both
makes it easier to understand the Git history and makes rollbacks safer
(in case we need to roll back the feature for any reason, we can keep
the bug fix).

[beasteers]

I just got a chance to run through and make the requested changes. Let me know if there's anything else.

I couldn't get spriteImagesAvailable to be both computed and to have an observer (makes sense that it wouldn't, but,) so I'm just assigning it in metadataChanged for now.

If I understand correctly, there’s only one image file (a sprite sheet),
right? so this would need some image processing (probably on the server)
to extract the correct sprite and serve it as a standalone image file?

Yeah I just figured if someone wanted to serve up arbitrary static images (or spin up a flask server 😉) we could use a metadata column as urls to populate those images. It wouldn't have to be anything that tensorboard backend would have to handle.

My use case would be to expand the temporal context of the frames, but it's not too crucial and is probably pretty niche. The other reason is that the sprite sheet has a maximum size, so I guess we'll see what happens when I play around with larger test sets !!

[wchargin]

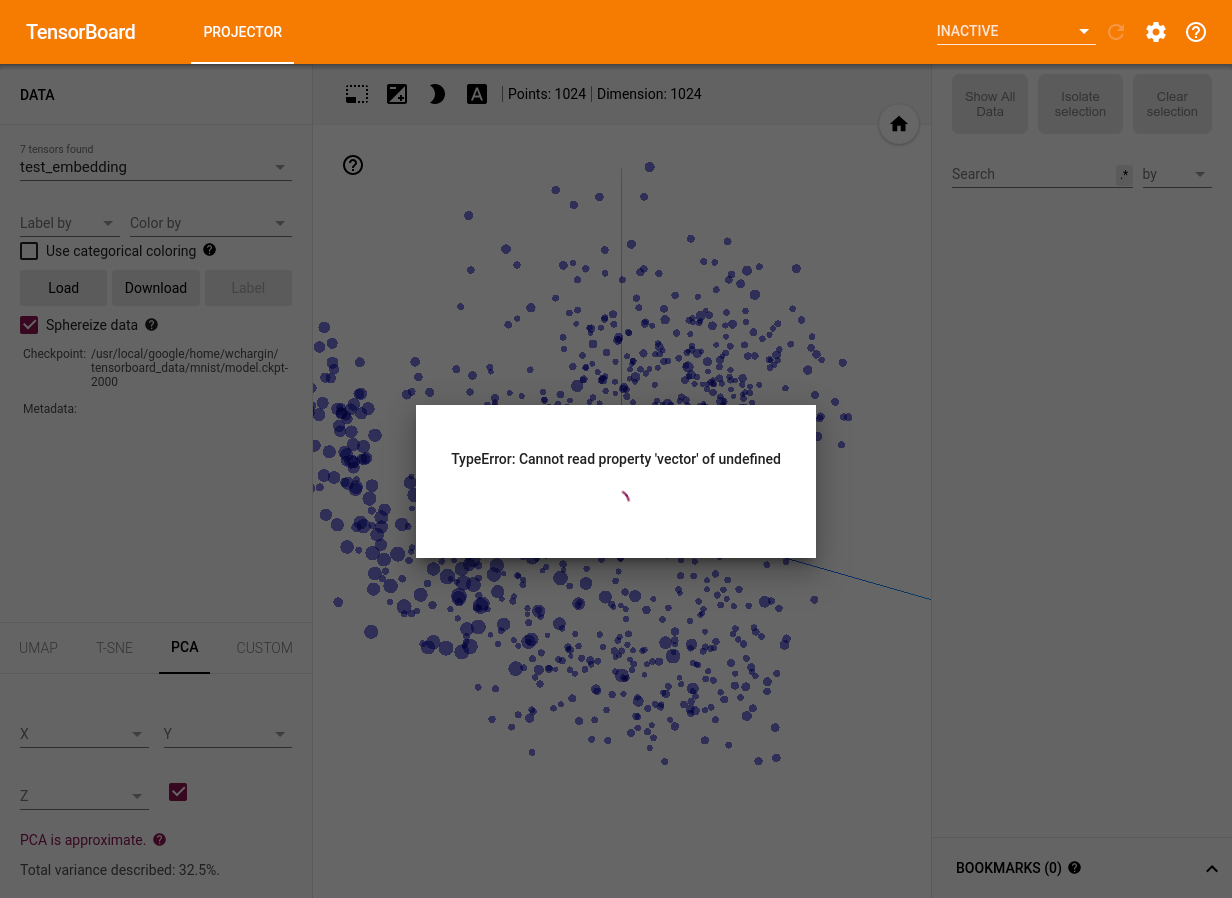

When I run this commit (b56995b) on a dataset that doesn’t have images,
the embeddings start to render, but the modal stays visible with a
message, “TypeError: Cannot read property 'vector' of undefined”.
(Screenshot.) I can’t reproduce that prior to these changes; could
you take a look?

[beasteers]

but the modal stays visible with a message, “TypeError: Cannot read property 'vector' of undefined”.

That was happening because I was calling findNeighbors in the observer function, but I guess that was getting called before neighbors were initialized (or something) so vector was not defined.

I removed the added findNeighbors call. Instead, I'm caching the last neighbors value, and reusing it if updateNeighborsList() is called without an argument. If neither have values, then the function will just pop out early.

[beasteers]

Question: is there a reason why the neighbors list is being rendered with vanilla javascript and not polymer elements? I realize there's a bit of logic needed beforehand so I can see how it might be tricky, but I feel like the element definitions could be offloaded.

This is my first time with polymer/typescript, I'm more React/Redux folk.

[wchargin]

This looks lovely; thanks! Everything looks good on my end; just a few
minor comments and this should be good to merge.

Question: is there a reason why the neighbors list is being rendered
with vanilla javascript and not polymer elements? I realize there's a
bit of logic needed beforehand so I can see how it might be tricky,
but I feel like the element definitions could be offloaded.

They could, yes, and that might well be easier to follow. I didn’t write
the original code, so I can only speculate, but perhaps part of it was
that setting all the inline styles would be much more of a pain (it’s
not like React where the style prop is a normal JS object; in Polymer,
you’d have to actually build up a computed style="…" string). Maybe
performance or just personal preference were also factors. ¯\_(ツ)_/¯

This is my first time with polymer/typescript, I'm more React/Redux
folk.

We are, too, actually, but the existing code is what it is. :-)

[wchargin]

Unused; remove?

[wchargin]

(looks like this didn’t make it into the patch?)

[wchargin]

Can this be inlined?

[beasteers]

Wait I'm not totally sure what you mean inlined.

This?

      showNeighborImages: {
        type: Boolean,
        value: true,
        observer: () => {
          this.updateNeighborsList();
        },
      },

this? (I bet prettier would say something abt this)

    _updateNeighborsList() { this.updateNeighborsList(); }

Doing this doesn't work because it's not bound to this anymore:

      showNeighborImages: {
        type: Boolean,
        value: true,
        observer: 'updateNeighborsList',
      },

[wchargin]

Ah, I see what’s happening. By “inlined” I meant “remove the function
_updateNeighborsList and replace all calls with updateNeighborsList,
which should ‘obviously’ be equivalent”. But the reason that this
doesn’t work is that Polymer invokes observers with the value of the
property, which for showNeighborImages is a boolean—so, when the
checkbox is clicked, Polymer calls _updateNeighborsList(true), which
then calls updateNeighborsList(). After inlining, Polymer will instead
pass that argument to updateNeighborsList directly, but then it’s
interpreted as the value of neighbors?: knn.NearestEntry[] instead of
being ignored, which leads to errors.

(edit: to clarify, I meant as in the last code block in your comment above)

The implementation is fine, but the above is confusing enough that the
function should have a comment and probably a rename—something like
_refreshNeighborsList, with a comment indicating that it specifically
drops all arguments before calling updateNeighborsList.

[wchargin]

Merged! Thanks very much—this is a great feature. 🎉
