Stat for aligning lines before stacking

[thomasp85]

Fix #4850

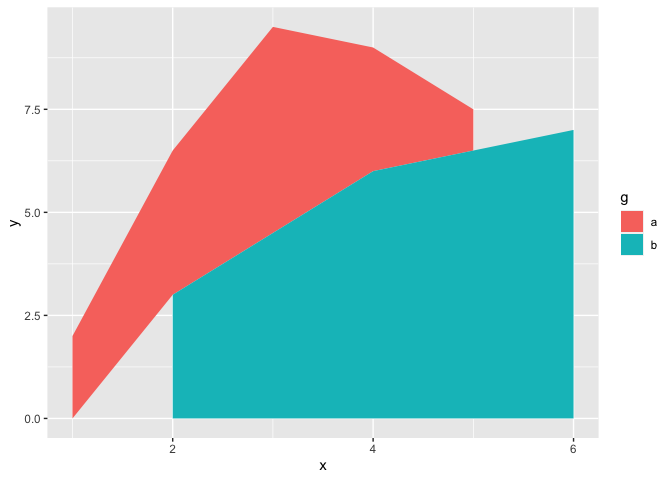

This is a first stab at implementing what has been discussed in #4850.

df <- tibble::tribble(
    ~g, ~x, ~y,
    "a", 1, 2,
    "a", 3, 5,
    "a", 5, 1,
    "b", 2, 3,
    "b", 4, 6,
    "b", 6, 7
)
ggplot(df, aes(x, y, fill = g)) +
  geom_area()

questions remaining to be answered:

1. how should it behave when a group climbs on top of another? In the code suggestion in Helper stat for geom_area() #4850 we allow the data to rise from 0 outside of its range but I feel that is wrong - however the solution here is also not quite right...

2. what is the best name for the stat? I'm not married to "align", but also think it is "good enough"... if anyone has a better name I'm open

@hadley @clauswilke @yutannihilation

[thomasp85]

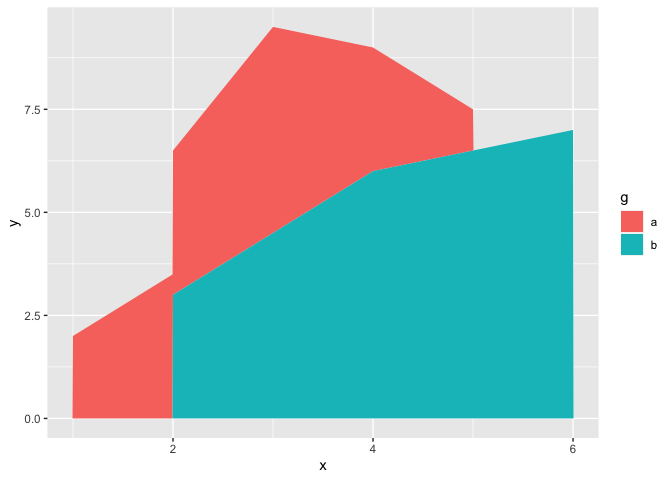

ok, I feel I have the best solution for (1.). We will add a very little amount (currently 0.1% of the range) to either side of each group and set it to zero - this makes the data rise suddenly when climbing on top of a new set for all intent and purpose

df <- tibble::tribble(
    ~g, ~x, ~y,
    "a", 1, 2,
    "a", 3, 5,
    "a", 5, 1,
    "b", 2, 3,
    "b", 4, 6,
    "b", 6, 7
)
ggplot(df, aes(x, y, fill = g)) + geom_area()

[thomasp85]

hmm... however, this interacts badly with outline.type = "upper" since it make the outline start from 0 rather than where the data starts...

[yutannihilation]

Another question. What should happen when there's a cliff in the middle of the data?

devtools::load_all("~/GitHub/ggplot2/")
#> ℹ Loading ggplot2

df <- tibble::tribble(
    ~g, ~x, ~y,
    "a", 1, 2,
    "a", 3, 5,
    "a", 5, 1,
    "b", 2, 3,
    "b", 4, 3,
    "b", 4, 6,
    "b", 6, 7
)


ggplot(df, aes(x, y, fill = g)) +
  geom_area() +
  geom_point(data = \(x) dplyr::filter(x, g == "b")) +
  geom_line(data = \(x) dplyr::filter(x, g == "b"))
#> Warning in regularize.values(x, y, ties, missing(ties), na.rm = na.rm):
#> collapsing to unique 'x' values

^{Created on 2022-06-24 by the reprex package (v2.0.1)}

[thomasp85]

good catch - we could potentially nudge it in the same way as we do in the ends

[thomasp85]

just need to make sure we nudge it in the right direction so the slope matches the evolution of the data

[hadley]

@thomasp85 could you just add the fudge factor to either side of every point?

[thomasp85]

@hadley I'm not sure I understand? As opposed to what I'm currently doing? or to fix @yutannihilation issue?

[yutannihilation]

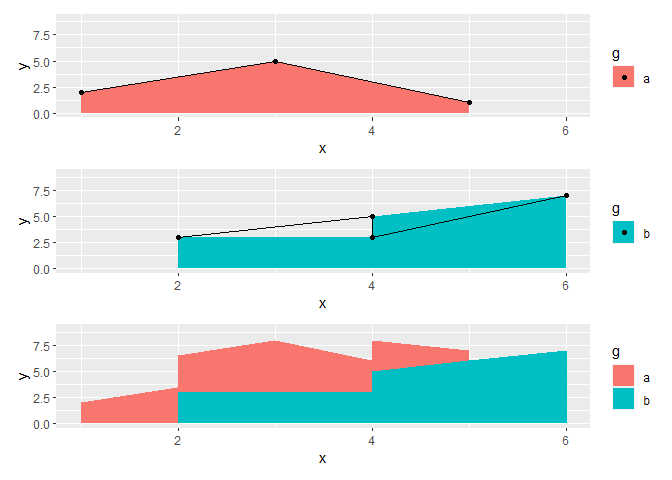

I feel the result below isn't right, but is this what you meant in this comment...?

just need to make sure we nudge it in the right direction so the slope matches the evolution of the data

devtools::load_all("~/GitHub/ggplot2/")
#> ℹ Loading ggplot2

df <- tibble::tribble(
    ~g, ~x, ~y,
    "a", 1, 2,
    "a", 3, 5,
    "a", 5, 1,
    "b", 2, 3,
    "b", 4, 5,
    "b", 4, 3,
    "b", 6, 7
)

pal <- scales::hue_pal()(2)
names(pal) <- c("a", "b")

l <- list(
  coord_cartesian(xlim = c(1, 6), ylim = c(0, 9)),
  scale_fill_manual(values = pal)
)

p <- ggplot(df, aes(x, y, fill = g)) +
  geom_area() +
  l

p_single <- lapply(c("a", "b"), function(g) {
  df_single <- dplyr::filter(df, g == {{ g }})

  ggplot(df_single, aes(x, y, fill = g)) +
    geom_area() +
    geom_point() +
    geom_line() +
    l
})

patchwork::wrap_plots(a = p_single[[1]], b = p_single[[2]], both = p, ncol = 1)

^{Created on 2022-06-30 by the reprex package (v2.0.1)}

[thomasp85]

@yutannihilation yeah, I was probably trying to be too clever, sorting the points in the cliff so it matched the surrounding slope - but I agree it probably should be kept in the same order as the data

[thomasp85]

fixed in the latest commit

[yutannihilation]

Thanks, looks good!

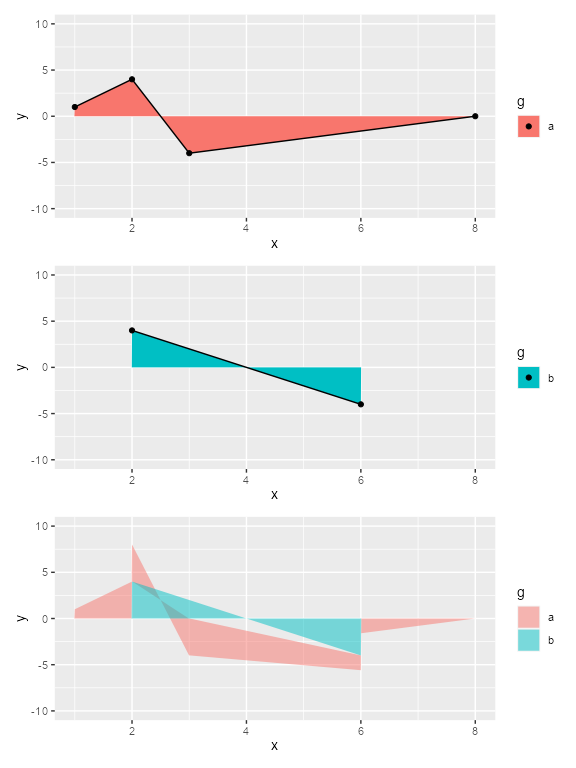

Let me confirm about one last corner case; do we support when the areas go across zero? It seems to work if we interpolate the data points on y = 0, but I'm not sure if it always works. Besides, in general, I have no idea what's the correct behavior here.

devtools::load_all("~/GitHub/ggplot2/")
#> ℹ Loading ggplot2

df <- tibble::tribble(
    ~g, ~x, ~y,
    "a", 1, 1,
    "a", 2, 4,
    #"a", 2.5, 0,
    "a", 3, -4,
    "a", 8, 0,
    "b", 2, 4,
    #"b", 4, 0,
    "b", 6, -4
)

pal <- scales::hue_pal()(2)
names(pal) <- c("a", "b")

l <- list(
  coord_cartesian(xlim = c(1, 8), ylim = c(-10, 10)),
  scale_fill_manual(values = pal)
)

p <- ggplot(df, aes(x, y, fill = g)) +
  geom_area(alpha = 0.5) +
  l

p_single <- lapply(c("a", "b"), function(g) {
  df_single <- dplyr::filter(df, g == {{ g }})

  ggplot(df_single, aes(x, y, fill = g)) +
    geom_area() +
    geom_point() +
    geom_line() +
    l
})

patchwork::wrap_plots(p_single[[1]], p_single[[2]], p, ncol = 1)

^{Created on 2022-07-01 by the reprex package (v2.0.1)}

[thomasp85]

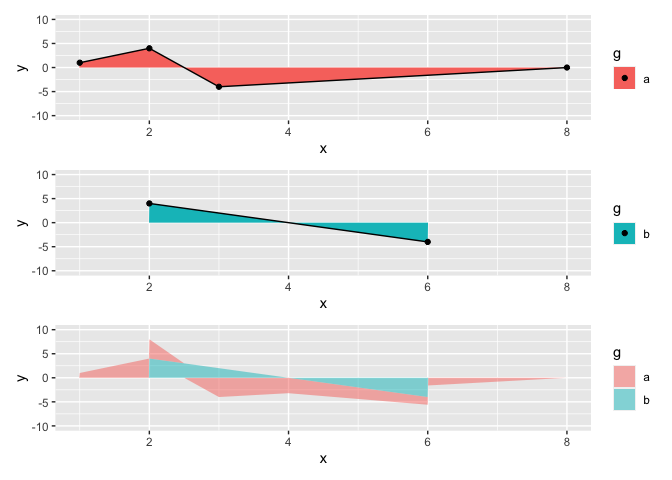

@yutannihilation thanks for coming up with all these edge cases. The last one should work now, though it is surely not a beautiful result :-)

df <- tibble::tribble(
    ~g, ~x, ~y,
    "a", 1, 1,
    "a", 2, 4,
    #"a", 2.5, 0,
    "a", 3, -4,
    "a", 8, 0,
    "b", 2, 4,
    #"b", 4, 0,
    "b", 6, -4
)

pal <- scales::hue_pal()(2)
names(pal) <- c("a", "b")

l <- list(
    coord_cartesian(xlim = c(1, 8), ylim = c(-10, 10)),
    scale_fill_manual(values = pal)
)

p <- ggplot(df, aes(x, y, fill = g)) +
    geom_area(alpha = 0.5) +
    l

p_single <- lapply(c("a", "b"), function(g) {
    df_single <- dplyr::filter(df, g == {{ g }})

    ggplot(df_single, aes(x, y, fill = g)) +
        geom_area() +
        geom_point() +
        geom_line() +
        l
})

patchwork::wrap_plots(p_single[[1]], p_single[[2]], p, ncol = 1)

[yutannihilation]

Looks perfect! As these cases are very tricky, I think it's a good idea to add one or two snapshot tests for them. Other than that, I have no comments.

[thomasp85]

yeah, I agree - your examples provide a nice foundation for some visual tests
