YAWEWSPTM

Yet Another Web-Enabled Weather Sensor Publishing To MQTT

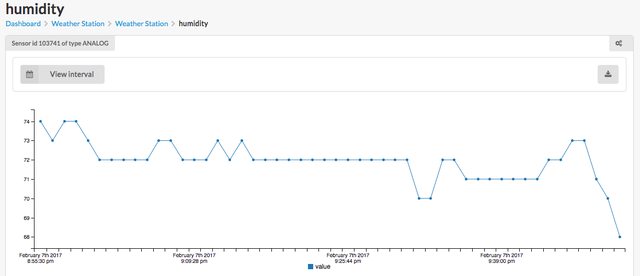

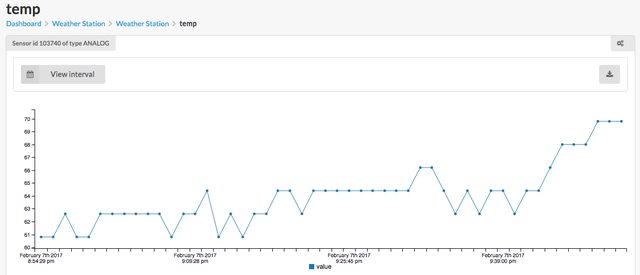

This is ESP-8266 code that reads temp and humidity readings every minute from a DHT11, updates a small SSD-1306-based display, and publishes readings to MQTT topics. The hardware should cost <$15 and wiring it up should take <15 minutes.

Demo Video

Hardware

All this should cost <$15

• ESP8266 microcontroller, like a Wemos D1 Mini
• DHT11 temp/humidity sensor, like the Wemos shield
• SSD1036 OLED display, like a Wemos OLED Shield
• Wifi connection

Software Dependencies

• platformio
• The following libs:

Adafruit DHT Unified_ID18
DHT sensor library_ID19
Adafruit Unified Sensor_ID31
Adafruit GFX Library_ID13
Adafruit SSD1306_135
PubSubClient_ID89

These libraries are loaded automatically by platformio upon lib_deps dependencies. No need for manual install. If you use atom.io yoou should open this project with the platformio IDE to get these libraries into the list of installed libraries.

Provisioning an MQTT topic and connecting to Wifi

1. Create an account on devicehub.net
2. Create a project, device, and 2 analog 'sensors' (temp and humidity)
3. Jot down your API key, project ID, device UUID, and sensor names
4. Change config.h to match your Wifi and MQTT settings
