[SPARK-32446][CORE] Add percentile distribution REST API & UI of peak memory metrics for all executors #34695

AngersZhuuuu · 2021-11-24T05:28:51Z

What changes were proposed in this pull request?

This pr continue the work of #29247 since origin author didn't reply for a long time.
Will add as co-author.

For the whole process of application, user may want to know each executor's peak memory usage to see the Resource utilization. The distribution of all executor's peak memory metrics usage can help users know whether or not there is a skew/bottleneck among executor resource utilization in a given stage.

We define activeOnly and quantiles query parameter in the REST API for all executors peak memory metrics distribution:

applications/<application_id>/<application_attempt/executorPeakMemoryMetricsDistribution?activeOnly=[true (default) | false]&quantiles=0.05,0.25,0.5,0.75,0.95

withSummaries: default is false, define whether to show current stage's taskMetricsDistribution and executorMetricsDistribution
quantiles: default is 0.0,0.25,0.5,0.75,1.0 only effect when withSummaries=true, it define the quantiles we use when calculating metrics distributions.

When withSummaries=true, both task metrics in percentile distribution and executor metrics in percentile distribution are included in the REST API output. The default value of withSummaries is false, i.e. no metrics percentile distribution will be included in the REST API output.

Why are the changes needed?

Always user care about executor peak usage distribution, this pr help users understand executor peak memory metrics distributions.

Does this PR introduce any user-facing change?

User can use below restful API to get all executor's peak memory metrics distribution:

applications/<application_id>/<application_attempt>/executorPeakMemoryMetricsDistribution

How was this patch tested?

…y metrics for all executors

AngersZhuuuu · 2021-11-24T05:30:33Z

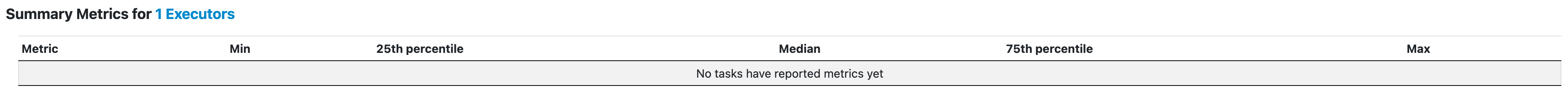

@sarutak @Patil Hi, I am trying to build this pr's UI table, but I found when I write such

$('#executorSummaryMetricsTitle').html("Summary Metrics for " + "<a href='#executorsTitle'>" + allExecCnt + " Executors" + "</a>");
      $('#executorsTitle').html("Executors (" + allExecCnt + ")");

It won't change the html content. I want to know how can I enable this? Hope for your suggestion.

AngersZhuuuu · 2021-11-24T05:32:12Z

Also ping @pgandhi999

SparkQA · 2021-11-24T06:54:22Z

Kubernetes integration test starting
URL: https://amplab.cs.berkeley.edu/jenkins/job/SparkPullRequestBuilder-K8s/50035/

SparkQA · 2021-11-24T07:56:59Z

Kubernetes integration test status failure
URL: https://amplab.cs.berkeley.edu/jenkins/job/SparkPullRequestBuilder-K8s/50035/

SparkQA · 2021-11-24T08:41:20Z

Test build #145563 has finished for PR 34695 at commit fa685bf.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

pgandhi999 · 2021-11-25T22:21:09Z

I shall definitely review the PR, thank you.

pgandhi999 · 2021-11-30T18:07:25Z

Could you please post screenshots of the UI that was tested with your code changes in the PR description? Thank you.

core/src/main/resources/org/apache/spark/ui/static/executorspage.js

pgandhi999 · 2021-11-30T18:24:28Z

core/src/main/resources/org/apache/spark/ui/static/executorspage.js

+      return "Mapped Pool Memory";
+
+    case "ProcessTreeJVMVMemory":
+      return "Process Tree JVM Memory";


This should be VMemory

But there are ProcessTreeJVMVMemory and ProcessTreePythonVMemory

I am talking about the column heading, it should be Process Tree JVM VMemory.

I am talking about the column heading, it should be Process Tree JVM VMemory.

Hmmm, sorry for my mistake...

I am talking about the column heading, it should be Process Tree JVM VMemory.

updated

AngersZhuuuu · 2021-12-07T10:08:44Z

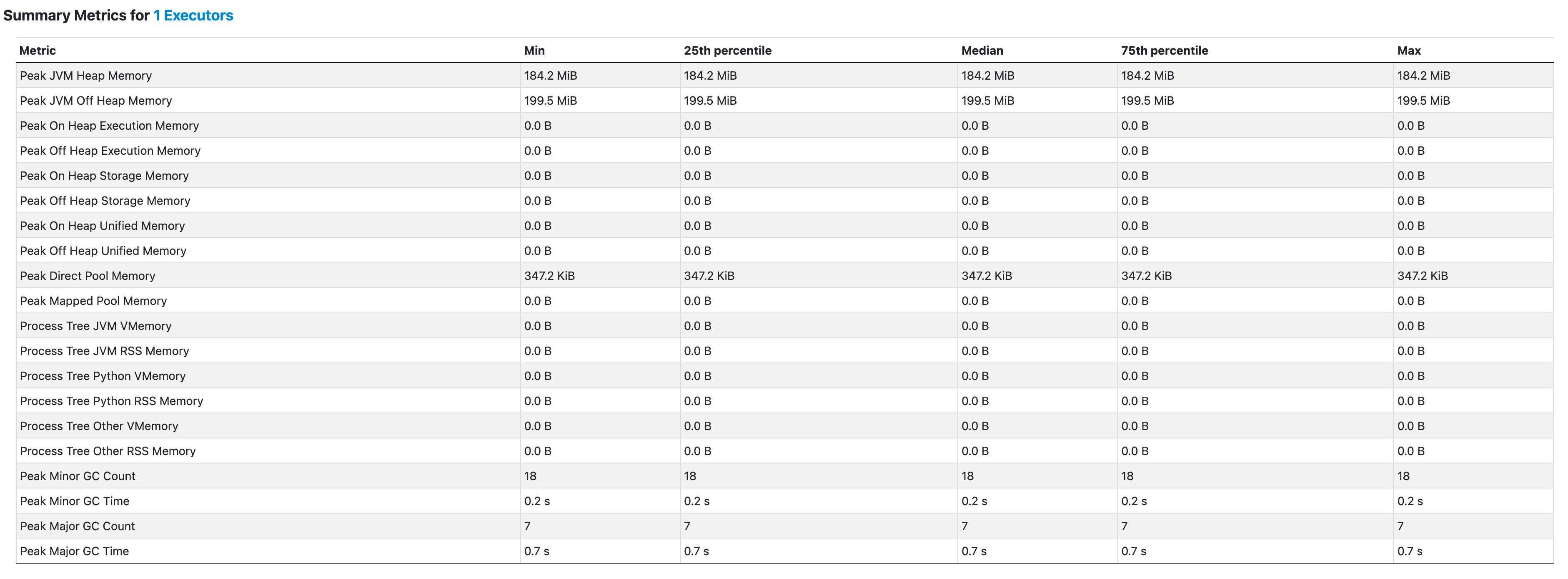

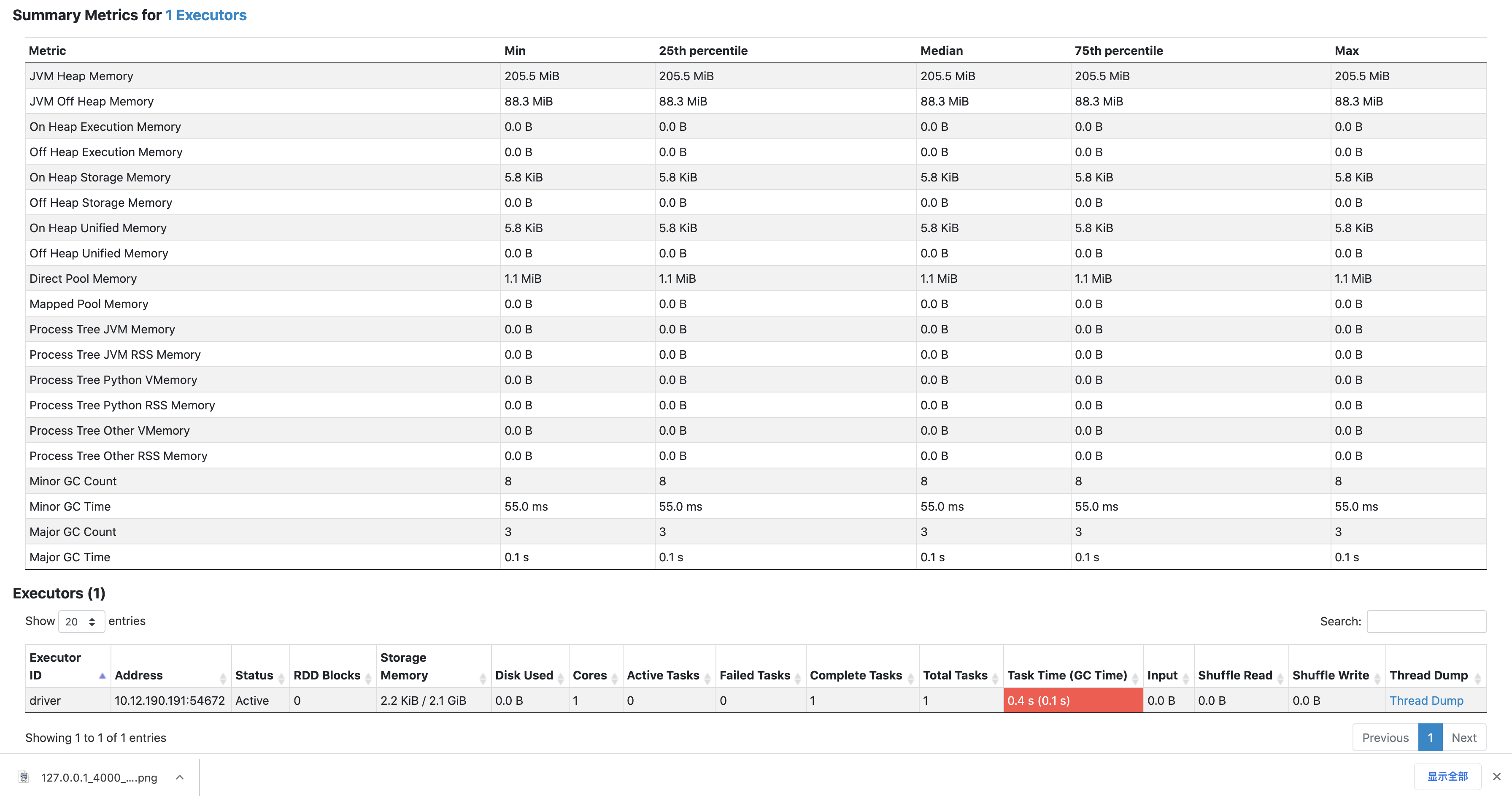

Could you please post screenshots of the UI that was tested with your code changes in the PR description? Thank you.

Done

SparkQA · 2021-12-07T10:55:08Z

Kubernetes integration test starting
URL: https://amplab.cs.berkeley.edu/jenkins/job/SparkPullRequestBuilder-K8s/50461/

SparkQA · 2021-12-07T10:56:30Z

Kubernetes integration test starting
URL: https://amplab.cs.berkeley.edu/jenkins/job/SparkPullRequestBuilder-K8s/50460/

SparkQA · 2021-12-07T11:38:04Z

Kubernetes integration test status failure
URL: https://amplab.cs.berkeley.edu/jenkins/job/SparkPullRequestBuilder-K8s/50461/

SparkQA · 2021-12-07T11:56:21Z

Kubernetes integration test status failure
URL: https://amplab.cs.berkeley.edu/jenkins/job/SparkPullRequestBuilder-K8s/50460/

SparkQA · 2021-12-07T12:45:46Z

Test build #145985 has finished for PR 34695 at commit b01750e.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

SparkQA · 2021-12-07T13:25:15Z

Test build #145987 has finished for PR 34695 at commit b2a4289.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

SparkQA · 2021-12-08T03:37:22Z

Kubernetes integration test starting
URL: https://amplab.cs.berkeley.edu/jenkins/job/SparkPullRequestBuilder-K8s/50468/

SparkQA · 2021-12-08T04:36:06Z

Kubernetes integration test status failure
URL: https://amplab.cs.berkeley.edu/jenkins/job/SparkPullRequestBuilder-K8s/50468/

SparkQA · 2021-12-08T05:24:21Z

Test build #145992 has finished for PR 34695 at commit 5e12e0c.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

gengliangwang · 2022-01-06T08:56:18Z

I feel that there are too many metrics in the new table..I am using external monitor but I can't see the details of each executor when I open the executor page:

shall we remove/hide some minor metrics?

AngersZhuuuu · 2022-01-06T10:15:08Z

I feel that there are too many metrics in the new table..I am using external monitor but I can't see the details of each executor when I open the executor page:

shall we remove/hide some minor metrics?

How about just collapse this table by default? and support click to expand this?

gengliangwang · 2022-01-06T10:29:36Z

How about just collapse this table by default? and support click to expand this?

Still, the table is quite long after expanding..

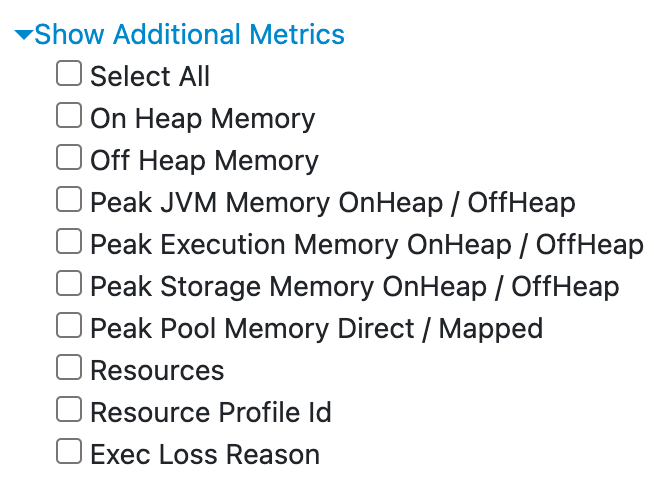

Shall we hide metrics in the following checkboxes(we can include GC count as well):

Many of the metrics are already there, and the UI doesn't show them by default

AngersZhuuuu · 2022-01-07T06:03:38Z

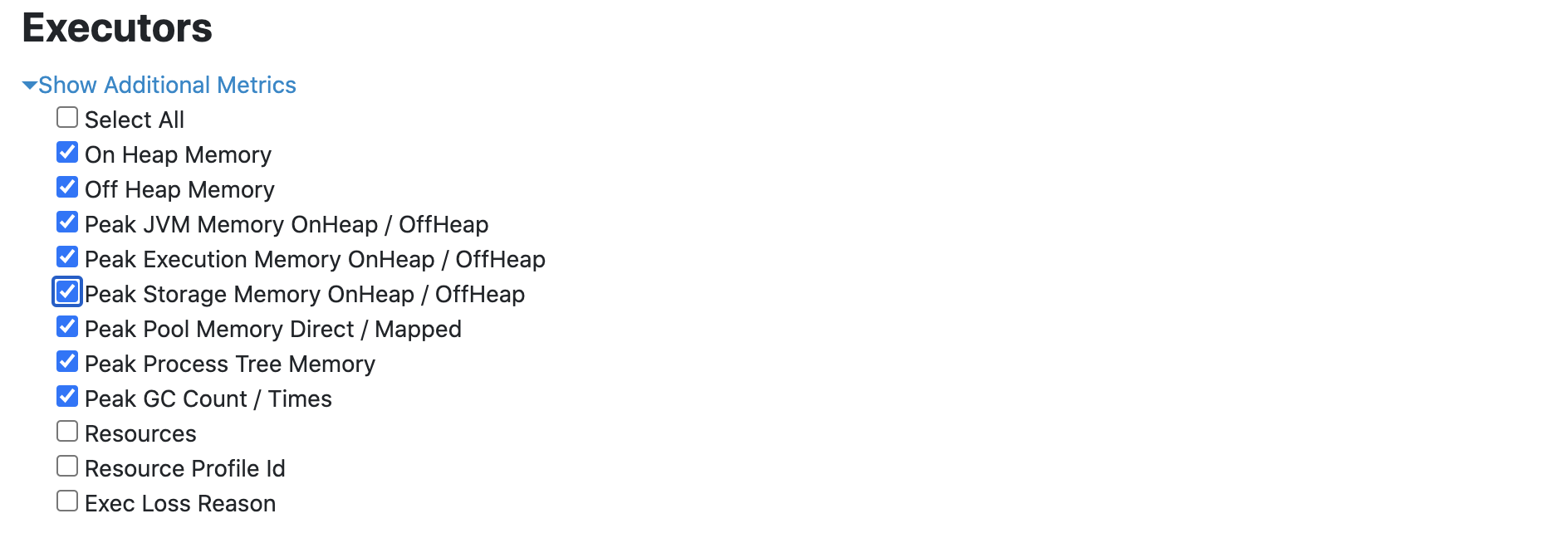

@gengliangwang Have updated, I think current code can match your requirement.

AngersZhuuuu · 2022-01-10T03:53:56Z

Gentle ping @gengliangwang

AngersZhuuuu · 2022-01-17T02:09:43Z

ping @gengliangwang

gengliangwang · 2022-01-20T13:53:35Z

@AngersZhuuuu I will check this one in the weekend.

gengliangwang · 2022-01-24T02:53:54Z

@AngersZhuuuu shall we hide this by default if no additional metrics is selected?

gengliangwang · 2022-01-24T02:55:18Z

cc @rednaxelafx @jasonli-db as well

AngersZhuuuu · 2022-01-25T06:26:28Z

@AngersZhuuuu shall we hide this by default if no additional metrics is selected?

Updated

core/src/main/resources/org/apache/spark/ui/static/executorspage.js

gengliangwang · 2022-01-25T14:25:27Z

core/src/main/resources/org/apache/spark/ui/static/executorspage.js

 }

+function getColumnNameForExecutorMetricSummary(columnKey) {
+  switch(columnKey) {


Shall we use a string map instead of switch?

Shall we use a string map instead of switch?

Hmm, same method from stagingspage.js

Shall we use a string map instead of switch?

Updated

gengliangwang · 2022-01-25T15:06:26Z

core/src/main/resources/org/apache/spark/ui/static/executorspage.js

              sumCol.visible(!sumCol.visible());
            }
+            var para = thisBox.attr('exec-sum-idx');
+            if(para != '') {


gengliangwang · 2022-01-25T15:07:56Z

@AngersZhuuuu this LGTM overall.
My only concern is whether we need to all these metrics. cc @rednaxelafx

AngersZhuuuu · 2022-02-09T14:22:26Z

@gengliangwang No reply for a long time....How about merge first then got reply form users?

AngersZhuuuu · 2022-03-03T13:45:48Z

Gentle ping

AngersZhuuuu · 2022-03-29T03:17:15Z

gentle ping @rednaxelafx @jasonli-db

github-actions · 2022-09-29T00:32:05Z

We're closing this PR because it hasn't been updated in a while. This isn't a judgement on the merit of the PR in any way. It's just a way of keeping the PR queue manageable.
If you'd like to revive this PR, please reopen it and ask a committer to remove the Stale tag!
