Quic pollcont, Reuse the NetHandler for UDP packet by scw00 · Pull Request #3056 · apache/trafficserver

scw00 · 2018-01-30T13:54:06Z

Base on @oknet design.

We create QUICPollCont to dispatch UDPacket to different qvc. And NetHandler will callback to qvc handler to process packet.

masaori335 · 2018-01-31T02:06:51Z

I could build this PR and complete handshake with ngtcp2 :) There're some TODOs, but this looks good.

masaori335 · 2018-01-31T02:07:34Z

I got this crash when I try our quic client.

Process 55750 stopped
* thread #2, name = '[ET_UDP 0]', stop reason = EXC_BAD_ACCESS (code=1, address=0x50)
    frame #0: 0x00000001000708ea traffic_quic`Mutex_trylock(location=0x0000000102519bc8, ahandler=0x0000000000000000, m=0x0000000000000000, t=0x000000010230d000) at I_Lock.h:288
   285  {
   286    ink_assert(t != 0);
   287    ink_assert(t == (EThread *)this_thread());
-> 288    if (m->thread_holding != t) {
   289      if (!ink_mutex_try_acquire(&m->the_mutex)) {
   290  #ifdef DEBUG
   291        lock_waiting(m->srcloc, m->handler);
Target 0: (traffic_quic) stopped.
(lldb) bt
* thread #2, name = '[ET_UDP 0]', stop reason = EXC_BAD_ACCESS (code=1, address=0x50)
  * frame #0: 0x00000001000708ea traffic_quic`Mutex_trylock(location=0x0000000102519bc8, ahandler=0x0000000000000000, m=0x0000000000000000, t=0x000000010230d000) at I_Lock.h:288
    frame #1: 0x0000000100070811 traffic_quic`MutexTryLock::MutexTryLock(this=0x0000000102519be0, location=0x0000000102519bc8, ahandler=0x0000000000000000, am=0x000000010230d020, t=0x000000010230d000) at I_Lock.h:554
    frame #2: 0x000000010006c045 traffic_quic`MutexTryLock::MutexTryLock(this=0x0000000102519be0, location=0x0000000102519bc8, ahandler=0x0000000000000000, am=0x000000010230d020, t=0x000000010230d000) at I_Lock.h:553
    frame #3: 0x0000000100078d88 traffic_quic`QUICNetVConnection::acceptEvent(this=0x00000001027c4aa0, event=2501, e=0x0000000102814c40) at QUICNetVConnection.cc:102
    frame #4: 0x000000010006c960 traffic_quic`Continuation::handleEvent(this=0x00000001027c4aa0, event=2501, data=0x0000000102814c40) at I_Continuation.h:153
    frame #5: 0x000000010010e0b3 traffic_quic`EThread::process_event(this=0x000000010230d000, e=0x0000000102814c40, calling_code=2501) at UnixEThread.cc:130
    frame #6: 0x000000010010e42d traffic_quic`EThread::process_queue(this=0x000000010230d000, NegativeQueue=0x0000000102519e08, ev_count=0x0000000102519dd8, nq_count=0x0000000102519ddc) at UnixEThread.cc:169
    frame #7: 0x000000010010ea71 traffic_quic`EThread::execute_regular(this=0x000000010230d000) at UnixEThread.cc:250
    frame #8: 0x000000010010f06a traffic_quic`EThread::execute(this=0x000000010230d000) at UnixEThread.cc:324
    frame #9: 0x000000010010d064 traffic_quic`spawn_thread_internal(a=0x0000000102017030) at Thread.cc:85
    frame #10: 0x00007fff6a0226c1 libsystem_pthread.dylib`_pthread_body + 340
    frame #11: 0x00007fff6a02256d libsystem_pthread.dylib`_pthread_start + 377
    frame #12: 0x00007fff6a021c5d libsystem_pthread.dylib`thread_start + 13

zizhong · 2018-01-31T18:36:47Z

iocore/net/QUICNet.cc

+  NetHandler *nh       = get_NetHandler(this->mutex->thread_holding);
+
+  // Process the ASLL
+  SList(UDPPacketInternal, alink) aq(inQueue.popall());


do you need both aq and result?

result is used to make sure all packet (which we pop from result) was in original order. Since template <class C, class L = typename C::Link_link> class SLL doesn't have dequeue method.

zizhong · 2018-01-31T18:50:50Z

iocore/net/QUICNet.cc

+
+  new ((ink_dummy_for_new *)quicpc) QUICPollCont(thread->mutex, nh);
+
+  thread->schedule_every(quicpc, -9);


a int const is better

Sounds reasonable!

I just copy the line from initialize_thread_for_udp_net(). Please update both of them. :-)

zizhong · 2018-01-31T18:52:09Z

iocore/net/QUICNet.cc

+    if (vc != nullptr) {
+      int isin = ink_atomic_swap(&vc->read.in_enabled_list, 1);
+      if (!isin) {
+        nh->read_enable_list.push(vc);


do we need to hold the lock to modify the nh?

read_enable_list is an atomic queue. so we don't need to hold the nh lock.

zizhong · 2018-01-31T19:11:50Z

iocore/net/P_UnixNet.h

 TS_INLINE int
 EventIO::refresh(int e)
 {
+  if (fd == NO_FD) {


no sure about this. can we figure out a better way?

EventIO is a interface for polling system. Because the QUIC Connection does not supported by polling system, I left the hack code here. I can add a new member within EventIO to indicate the situation.

zizhong · 2018-01-31T19:19:48Z

iocore/net/P_UnixNet.h

@@ -575,8 +575,15 @@ EventIO::start(EventLoop l, NetAccept *vc, int events)
 TS_INLINE int
 EventIO::start(EventLoop l, UnixNetVConnection *vc, int events)


here, http://people.apache.org/~oknet/quic_arch.2017112813.png, pollCont is meant to call back UnixUdpConnection but here it's call back to UnixNetVConnection?

Yes, but currently QCon doesn't inherit from Connection. So we just leave this here.

And UnixUDPConnection is used to recv socket, it is running in UDP thread.

oknet · 2018-02-03T10:47:22Z

iocore/net/UnixUDPNet.cc

  g_udp_numSendRetries = g_udp_numSendRetries < 0 ? 0 : g_udp_numSendRetries;

-  thread->schedule_every(get_UDPPollCont(thread), -9);
+  thread->schedule_every(get_UDPPollCont(thread), -UDP_PERIOD);


-HRTIME_MSECONDS(9) maybe better.

oknet · 2018-02-03T10:49:48Z

iocore/net/QUICNetVConnection.cc

+    free(t);
+    return EVENT_DONE;
+  }
+  this->read.enabled = 1;


This is a hack now, because no one calls do_io_xxx of QUICNetVC.

Can you add a comment here, so we can complete it later.

oknet · 2018-02-03T10:52:24Z

iocore/net/QUICNetVConnection.cc

+  if ((res = nh->startIO(this)) < 0) {
+    // FIXME: startIO only return 0 now! what should we do if it failed ?
+  }
+


Please add this->read.enabled = 1; at here.

oknet · 2018-02-03T11:10:05Z

iocore/net/QUICNetVConnection.cc

  this->_packet_handler              = packet_handler;
  this->_original_quic_connection_id = original_cid;
  this->_quic_connection_id.randomize();
+  this->ep.syscall = false;


Move to QUICNetProcessor::allocate_vc(EThread *t) ?

maskit · 2018-02-05T00:42:24Z

Where are packets in longInQueue and shortInQueue dequeued?

scw00 · 2018-02-05T00:46:27Z

longInQueue and shortInQueue are useless currently ! It is going to be used for reordering the rtt0 first packet and handshake packet .

maskit · 2018-02-05T01:09:22Z

iocore/net/QUICPacketHandler.cc

  }
+
+  // Push the packet into QUICPollCont
+  udp_packet->data.ptr = vc;


Hmm, I'm not so thrilled with having this data member. Do we have other options?

maskit · 2018-02-05T01:19:13Z

iocore/net/QUICNet.cc

+
+  new ((ink_dummy_for_new *)quicpc) QUICPollCont(thread->mutex, nh);
+
+  thread->schedule_every(quicpc, -UDP_PERIOD);


HRTIME_MSECONDS?

Why are these negative value?

negative value means quic pc should be inserted into the priority queue. It will be triggered every loop in evensystem.

@maskit yes, the same for DNS, no very intuitive though.

scw00 · 2018-02-06T06:10:26Z

Based on @maskit 's suggestion.

I introduced a new struct to packet the UDPPacket and QVC, and removed the hack in UDPPacket.

maskit · 2018-02-06T08:22:31Z

Looks good to me. Please remove WIP label when it's ready. (I assume some of comments from oknet have to be addressed.)

maskit

👍

oknet

Next, make the QUICNetVC inherits from RefCountObj, increase the reference count once a QUICPollEvent is created.

oknet · 2018-02-07T08:51:04Z

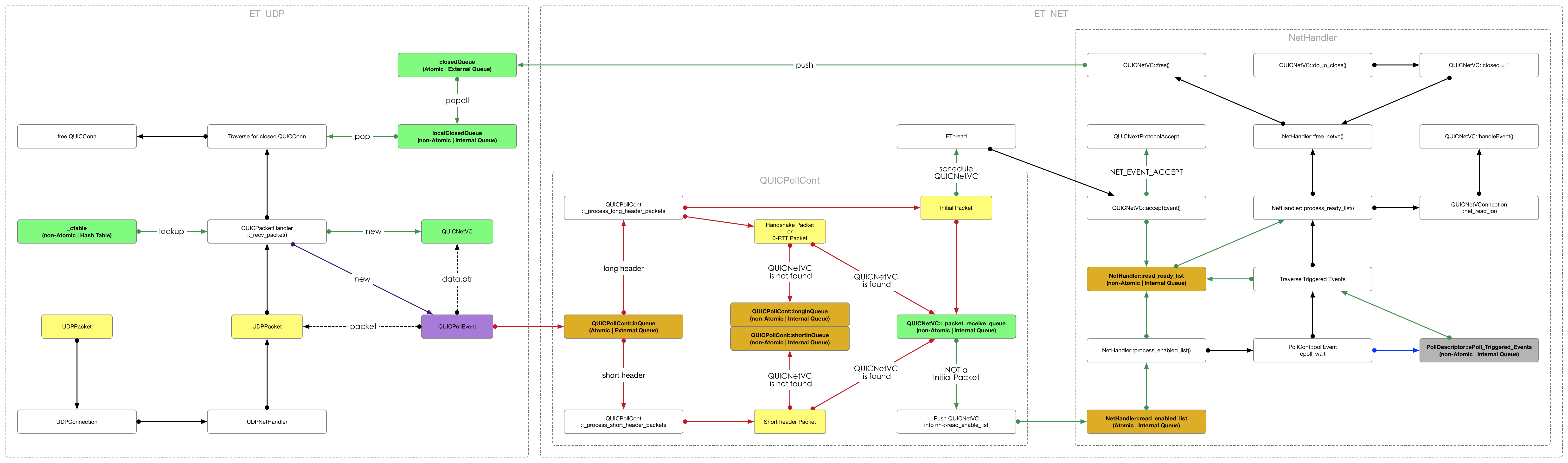

Current QUIC diagram:

The closedQueue will be added soon.
