[lldb-dap] Enabling instruction breakpoint support to lldb-dap. #105278
Conversation
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Adding a "port" property to the VsCode "attach" command likely extends the functionality of the debugger configuratiuon to allow attaching to a process using PID or PORT number.
Currently, the "Attach" configuration lets the user specify a pid. We tell the user to use the attachCommands property to run "gdb-remote <port>".
Followed the below conditions for "attach" command with "port" and "pid"
We should add a "port" property. If port is specified and pid is not, use that port to attach. If both port and pid are specified, return an error saying that the user can't specify both pid and port.
Ex - launch.json
{
"version": "0.2.0",
"configurations": [
{
"name": "lldb-dap Debug",
"type": "lldb-dap",
"request": "attach",
"port":1234,
"program": "${workspaceFolder}/a.out",
"args": [],
"stopOnEntry": false,
"cwd": "${workspaceFolder}",
"env": [],
}
]
}
Adding a "port" property to the VsCode "attach" command likely extends the functionality of the debugger configuration to allow attaching to a process using PID or PORT number.
Currently, the "Attach" configuration lets the user specify a pid. We tell the user to use the attachCommands property to run "gdb-remote ".
Followed the below conditions for "attach" command with "port" and "pid"
We should add a "port" property. If port is specified and pid is not, use that port to attach. If both port and pid are specified, return an error saying that the user can't specify both pid and port.
Ex - launch.json
{
"version": "0.2.0",
"configurations": [
{
"name": "lldb-dap Debug",
"type": "lldb-dap",
"request": "attach",
"port":1234,
"program": "${workspaceFolder}/a.out",
"args": [],
"stopOnEntry": false,
"cwd": "${workspaceFolder}",
"env": [],
}
]
}
In this patch we have resolved code formatting issues and fixed "test_by_name" failure.
Resolved code format issues.
…ed review comments Addressed all review comments.
…e format resolved code format issues.
…d all review comments. All review comments have been addressed, and the attach-by-port tests have been verified on Linux machine. Although the functionality is intended to support both Linux and macOS, we were unable to verify it on macOS due to lack of access.
The following changes were committed by mistake, so they have been reverted. "startDebugging", &g_dap.start_debugging_request_handler, "repl-mode", &g_dap.repl_mode_request_handler,
|
@llvm/pr-subscribers-lldb Author: Santhosh Kumar Ellendula (santhoshe447) ChangesAdded support for "supportsInstructionBreakpoints" capability and now it this command is triggered when we set instruction breakpoint.

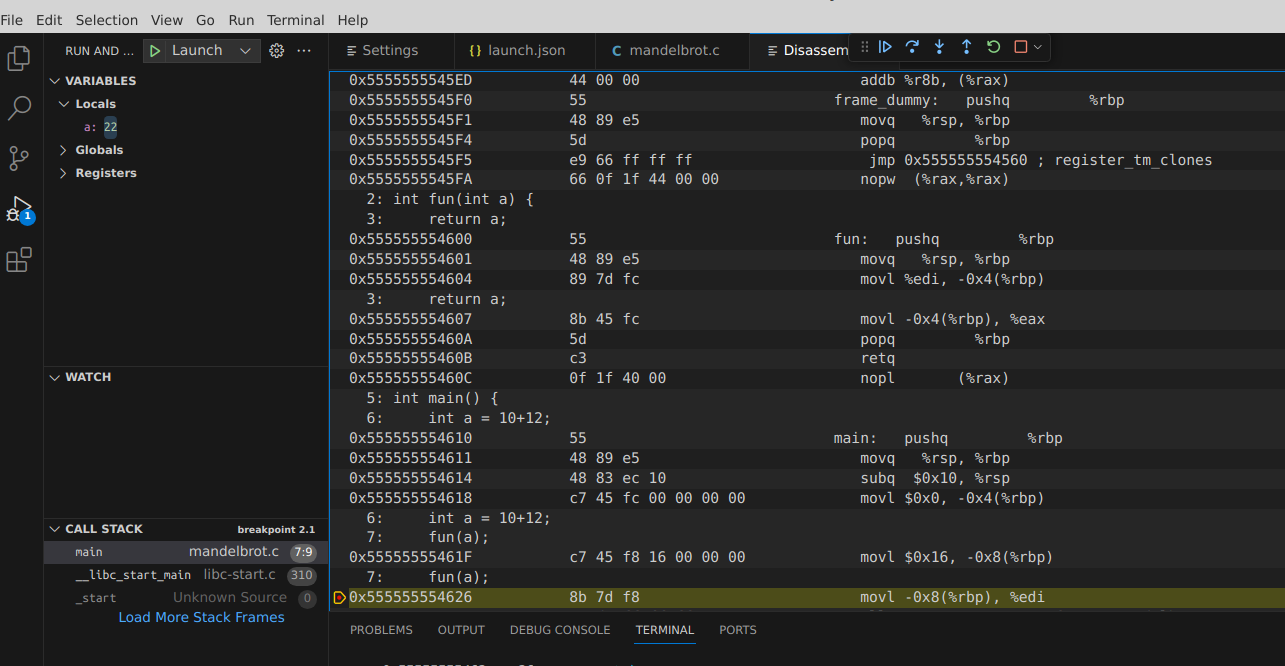

The format for DisassembleRequest and DisassembleResponse at https://raw.githubusercontent.com/microsoft/vscode/master/src/vs/workbench/contrib/debug/common/debugProtocol.d.ts . Ref Images: After issuing continue: Patch is 23.21 KiB, truncated to 20.00 KiB below, full version: https://github.com/llvm/llvm-project/pull/105278.diff 12 Files Affected:
diff --git a/lldb/packages/Python/lldbsuite/test/tools/lldb-dap/dap_server.py b/lldb/packages/Python/lldbsuite/test/tools/lldb-dap/dap_server.py
index a324af57b61df3..98b599608946c0 100644
--- a/lldb/packages/Python/lldbsuite/test/tools/lldb-dap/dap_server.py
+++ b/lldb/packages/Python/lldbsuite/test/tools/lldb-dap/dap_server.py
@@ -1095,6 +1095,20 @@ def terminate(self):
self.send.close()
# self.recv.close()
+ def request_setInstructionBreakpoints(self, memory_reference=[]):
+ breakpoints = []
+ for i in memory_reference:
+ args_dict = {
+ "instructionReference": i,
+ }
+ breakpoints.append(args_dict)
+ args_dict = {"breakpoints": breakpoints}
+ command_dict = {
+ "command": "setInstructionBreakpoints",
+ "type": "request",
+ "arguments": args_dict,
+ }
+ return self.send_recv(command_dict)
class DebugAdaptorServer(DebugCommunication):
def __init__(
diff --git a/lldb/test/API/tools/lldb-dap/instruction-breakpoint/Makefile b/lldb/test/API/tools/lldb-dap/instruction-breakpoint/Makefile
new file mode 100644
index 00000000000000..714cd70b0bd35c
--- /dev/null
+++ b/lldb/test/API/tools/lldb-dap/instruction-breakpoint/Makefile
@@ -0,0 +1,6 @@
+CXX_SOURCES := main-copy.cpp
+CXXFLAGS_EXTRAS := -O1 -g
+include Makefile.rules
+
+main-copy.cpp: main.cpp
+ cp -f $< $@
diff --git a/lldb/test/API/tools/lldb-dap/instruction-breakpoint/TestDAP_instruction_breakpoint.py b/lldb/test/API/tools/lldb-dap/instruction-breakpoint/TestDAP_instruction_breakpoint.py
new file mode 100644
index 00000000000000..ed1a6bf250c761
--- /dev/null
+++ b/lldb/test/API/tools/lldb-dap/instruction-breakpoint/TestDAP_instruction_breakpoint.py
@@ -0,0 +1,97 @@
+import dap_server
+import shutil
+from lldbsuite.test.decorators import *
+from lldbsuite.test.lldbtest import *
+from lldbsuite.test import lldbutil
+import lldbdap_testcase
+import os
+import lldb
+
+
+class TestDAP_InstructionBreakpointTestCase(lldbdap_testcase.DAPTestCaseBase):
+ NO_DEBUG_INFO_TESTCASE = True
+
+ def setUp(self):
+ lldbdap_testcase.DAPTestCaseBase.setUp(self)
+
+ self.main_basename = "main-copy.cpp"
+ self.main_path = os.path.realpath(self.getBuildArtifact(self.main_basename))
+
+ def test_instruction_breakpoint(self):
+ self.build()
+ self.instruction_breakpoint_test()
+
+ def instruction_breakpoint_test(self):
+ """Sample test to ensure SBFrame::Disassemble produces SOME output"""
+ # Create a target by the debugger.
+ target = self.createTestTarget()
+
+ main_line = line_number("main.cpp", "breakpoint 1")
+
+ program = self.getBuildArtifact("a.out")
+ self.build_and_launch(program)
+
+ # Set source breakpoint 1
+ response = self.dap_server.request_setBreakpoints(self.main_path, [main_line])
+ breakpoints = response["body"]["breakpoints"]
+ self.assertEquals(len(breakpoints), 1)
+ breakpoint = breakpoints[0]
+ self.assertEqual(
+ breakpoint["line"], main_line, "incorrect breakpoint source line"
+ )
+ self.assertTrue(breakpoint["verified"], "breakpoint is not verified")
+ self.assertEqual(
+ self.main_basename, breakpoint["source"]["name"], "incorrect source name"
+ )
+ self.assertEqual(
+ self.main_path, breakpoint["source"]["path"], "incorrect source file path"
+ )
+ other_breakpoint_id = breakpoint["id"]
+
+ # Continue and then verifiy the breakpoint
+ self.dap_server.request_continue()
+ self.verify_breakpoint_hit([other_breakpoint_id])
+
+ # now we check the stack trace making sure that we got mapped source paths
+ frames = self.dap_server.request_stackTrace()["body"]["stackFrames"]
+ intstructionPointerReference = []
+ setIntstructionBreakpoints = []
+ intstructionPointerReference.append(frames[0]["instructionPointerReference"])
+ self.assertEqual(
+ frames[0]["source"]["name"], self.main_basename, "incorrect source name"
+ )
+ self.assertEqual(
+ frames[0]["source"]["path"], self.main_path, "incorrect source file path"
+ )
+
+ # Check disassembly view
+ instruction = self.disassemble(frameIndex=0)
+ self.assertEqual(
+ instruction["address"],
+ intstructionPointerReference[0],
+ "current breakpoint reference is not in the disaasembly view",
+ )
+
+ # Get next instruction address to set instruction breakpoint
+ disassembled_instruction_list = self.dap_server.disassembled_instructions
+ instruction_addr_list = list(disassembled_instruction_list.keys())
+ index = instruction_addr_list.index(intstructionPointerReference[0])
+ if len(instruction_addr_list) >= (index + 1):
+ next_inst_addr = int(instruction_addr_list[index + 1], 16)
+ if next_inst_addr is not 0:
+ setIntstructionBreakpoints.append(hex(next_inst_addr))
+ instruction_breakpoint_response = (
+ self.dap_server.request_setInstructionBreakpoints(
+ setIntstructionBreakpoints
+ )
+ )
+ inst_breakpoints = instruction_breakpoint_response["body"][
+ "breakpoints"
+ ]
+ self.assertEqual(
+ inst_breakpoints[0]["instructionReference"],
+ hex(next_inst_addr),
+ "Instruction breakpoint has not been resolved or failed to relocate the instruction breakpoint",
+ )
+ self.dap_server.request_continue()
+ self.verify_breakpoint_hit([inst_breakpoints[0]["id"]])
diff --git a/lldb/test/API/tools/lldb-dap/instruction-breakpoint/main.cpp b/lldb/test/API/tools/lldb-dap/instruction-breakpoint/main.cpp
new file mode 100644
index 00000000000000..3c710d64171570
--- /dev/null
+++ b/lldb/test/API/tools/lldb-dap/instruction-breakpoint/main.cpp
@@ -0,0 +1,18 @@
+#include <stdio.h>
+#include <unistd.h>
+
+int function(int x) {
+
+ if (x == 0) // breakpoint 1
+ return x;
+
+ if ((x % 2) != 0)
+ return x;
+ else
+ return function(x - 1) + x;
+}
+
+int main(int argc, char const *argv[]) {
+ int n = function(2);
+ return n;
+}
\ No newline at end of file
diff --git a/lldb/tools/lldb-dap/CMakeLists.txt b/lldb/tools/lldb-dap/CMakeLists.txt
index f8f0d86453f585..d68098bf7b3266 100644
--- a/lldb/tools/lldb-dap/CMakeLists.txt
+++ b/lldb/tools/lldb-dap/CMakeLists.txt
@@ -38,6 +38,7 @@ add_lldb_tool(lldb-dap
SourceBreakpoint.cpp
DAP.cpp
Watchpoint.cpp
+ InstructionBreakpoint.cpp
LINK_LIBS
liblldb
diff --git a/lldb/tools/lldb-dap/DAP.h b/lldb/tools/lldb-dap/DAP.h
index 7828272aa15a7d..8be5a5a95aa38a 100644
--- a/lldb/tools/lldb-dap/DAP.h
+++ b/lldb/tools/lldb-dap/DAP.h
@@ -68,6 +68,8 @@ namespace lldb_dap {
typedef llvm::DenseMap<uint32_t, SourceBreakpoint> SourceBreakpointMap;
typedef llvm::StringMap<FunctionBreakpoint> FunctionBreakpointMap;
+typedef llvm::DenseMap<lldb::addr_t, InstructionBreakpoint>
+ InstructionBreakpointMap;
enum class OutputType { Console, Stdout, Stderr, Telemetry };
enum DAPBroadcasterBits {
diff --git a/lldb/tools/lldb-dap/DAPForward.h b/lldb/tools/lldb-dap/DAPForward.h
index 8c79488fae8dbf..159d999a63c820 100644
--- a/lldb/tools/lldb-dap/DAPForward.h
+++ b/lldb/tools/lldb-dap/DAPForward.h
@@ -15,6 +15,7 @@ struct ExceptionBreakpoint;
struct FunctionBreakpoint;
struct SourceBreakpoint;
struct Watchpoint;
+struct InstructionBreakpoint;
} // namespace lldb_dap
namespace lldb {
diff --git a/lldb/tools/lldb-dap/InstructionBreakpoint.cpp b/lldb/tools/lldb-dap/InstructionBreakpoint.cpp
new file mode 100644
index 00000000000000..d4d8db5c51ec15
--- /dev/null
+++ b/lldb/tools/lldb-dap/InstructionBreakpoint.cpp
@@ -0,0 +1,27 @@
+//===-- InstructionBreakpoint.cpp ------------------------------------*- C++
+//-*-===//
+//
+// Part of the LLVM Project, under the Apache License v2.0 with LLVM Exceptions.
+// See https://llvm.org/LICENSE.txt for license information.
+// SPDX-License-Identifier: Apache-2.0 WITH LLVM-exception
+//
+//===----------------------------------------------------------------------===//
+
+#include "InstructionBreakpoint.h"
+#include "DAP.h"
+
+namespace lldb_dap {
+
+// Instruction Breakpoint
+InstructionBreakpoint::InstructionBreakpoint(const llvm::json::Object &obj)
+ : Breakpoint(obj), instructionReference(LLDB_INVALID_ADDRESS), id(0),
+ offset(GetSigned(obj, "offset", 0)) {
+ GetString(obj, "instructionReference").getAsInteger(0, instructionReference);
+ instructionReference += offset;
+}
+
+void InstructionBreakpoint::SetInstructionBreakpoint() {
+ bp = g_dap.target.BreakpointCreateByAddress(instructionReference);
+ id = bp.GetID();
+}
+} // namespace lldb_dap
diff --git a/lldb/tools/lldb-dap/InstructionBreakpoint.h b/lldb/tools/lldb-dap/InstructionBreakpoint.h
new file mode 100644
index 00000000000000..a9b94f648aeab7
--- /dev/null
+++ b/lldb/tools/lldb-dap/InstructionBreakpoint.h
@@ -0,0 +1,36 @@
+//===-- InstructionBreakpoint.h --------------------------------------*- C++
+//-*-===//
+//
+// Part of the LLVM Project, under the Apache License v2.0 with LLVM Exceptions.
+// See https://llvm.org/LICENSE.txt for license information.
+// SPDX-License-Identifier: Apache-2.0 WITH LLVM-exception
+//
+//===----------------------------------------------------------------------===//
+
+#ifndef LLDB_TOOLS_LLDB_DAP_INSTRUCTIONBREAKPOINT_H
+#define LLDB_TOOLS_LLDB_DAP_INSTRUCTIONBREAKPOINT_H
+
+#include "Breakpoint.h"
+#include "llvm/ADT/StringRef.h"
+
+namespace lldb_dap {
+
+// Instruction Breakpoint
+struct InstructionBreakpoint : public Breakpoint {
+
+ lldb::addr_t instructionReference;
+ int32_t id;
+ int32_t offset;
+
+ InstructionBreakpoint()
+ : Breakpoint(), instructionReference(LLDB_INVALID_ADDRESS), id(0),
+ offset(0) {}
+ InstructionBreakpoint(const llvm::json::Object &obj);
+
+ // Set instruction breakpoint in LLDB as a new breakpoint
+ void SetInstructionBreakpoint();
+};
+
+} // namespace lldb_dap
+
+#endif
diff --git a/lldb/tools/lldb-dap/JSONUtils.cpp b/lldb/tools/lldb-dap/JSONUtils.cpp
index a8b85f55939e17..5a2a6c044ea4b1 100644
--- a/lldb/tools/lldb-dap/JSONUtils.cpp
+++ b/lldb/tools/lldb-dap/JSONUtils.cpp
@@ -766,6 +766,102 @@ llvm::json::Value CreateStackFrame(lldb::SBFrame &frame) {
return llvm::json::Value(std::move(object));
}
+// Response to `setInstructionBreakpoints` request.
+// "Breakpoint": {
+// "type": "object",
+// "description": "Response to `setInstructionBreakpoints` request.",
+// "properties": {
+// "id": {
+// "type": "number",
+// "description": "The identifier for the breakpoint. It is needed if
+// breakpoint events are used to update or remove breakpoints."
+// },
+// "verified": {
+// "type": "boolean",
+// "description": "If true, the breakpoint could be set (but not
+// necessarily at the desired location."
+// },
+// "message": {
+// "type": "string",
+// "description": "A message about the state of the breakpoint.
+// This is shown to the user and can be used to explain why a breakpoint
+// could not be verified."
+// },
+// "source": {
+// "type": "Source",
+// "description": "The source where the breakpoint is located."
+// },
+// "line": {
+// "type": "number",
+// "description": "The start line of the actual range covered by the
+// breakpoint."
+// },
+// "column": {
+// "type": "number",
+// "description": "The start column of the actual range covered by the
+// breakpoint."
+// },
+// "endLine": {
+// "type": "number",
+// "description": "The end line of the actual range covered by the
+// breakpoint."
+// },
+// "endColumn": {
+// "type": "number",
+// "description": "The end column of the actual range covered by the
+// breakpoint. If no end line is given, then the end column is assumed to
+// be in the start line."
+// },
+// "instructionReference": {
+// "type": "string",
+// "description": "A memory reference to where the breakpoint is set."
+// },
+// "offset": {
+// "type": "number",
+// "description": "The offset from the instruction reference.
+// This can be negative."
+// },
+// },
+// "required": [ "id", "verified", "line"]
+// }
+llvm::json::Value CreateInstructionBreakpoint(lldb::SBBreakpoint &bp) {
+ llvm::json::Object object;
+ if (!bp.IsValid()) {
+ return llvm::json::Value(std::move(object));
+ }
+ object.try_emplace("verified", bp.GetNumResolvedLocations() > 0);
+ object.try_emplace("id", bp.GetID());
+
+ lldb::SBBreakpointLocation bp_loc;
+ const auto num_locs = bp.GetNumLocations();
+ for (size_t i = 0; i < num_locs; ++i) {
+ bp_loc = bp.GetLocationAtIndex(i);
+ if (bp_loc.IsResolved())
+ break;
+ }
+ // If not locations are resolved, use the first location.
+ if (!bp_loc.IsResolved())
+ bp_loc = bp.GetLocationAtIndex(0);
+ auto bp_addr = bp_loc.GetAddress();
+
+ lldb::addr_t address_load = bp_addr.GetLoadAddress(g_dap.target);
+ std::string address_hex;
+ llvm::raw_string_ostream addr_strm(address_hex);
+ if (address_load != LLDB_INVALID_ADDRESS) {
+ addr_strm << llvm::format_hex(address_load, 0);
+ addr_strm.flush();
+ object.try_emplace("instructionReference", address_hex);
+ }
+
+ if (bp_addr.IsValid()) {
+ auto line_entry = bp_addr.GetLineEntry();
+ const auto line = line_entry.GetLine();
+ if (line != UINT32_MAX)
+ object.try_emplace("line", line);
+ }
+ return llvm::json::Value(std::move(object));
+}
+
// "Thread": {
// "type": "object",
// "description": "A Thread",
diff --git a/lldb/tools/lldb-dap/JSONUtils.h b/lldb/tools/lldb-dap/JSONUtils.h
index 1515f5ba2e5f4d..693f35ee07e5f6 100644
--- a/lldb/tools/lldb-dap/JSONUtils.h
+++ b/lldb/tools/lldb-dap/JSONUtils.h
@@ -322,6 +322,17 @@ llvm::json::Value CreateSource(llvm::StringRef source_path);
/// definition outlined by Microsoft.
llvm::json::Value CreateStackFrame(lldb::SBFrame &frame);
+/// Create a "instruction" object for a LLDB disassemble object as described in
+/// the Visual Studio Code debug adaptor definition.
+///
+/// \param[in] bp
+/// The LLDB instruction object used to populate the disassembly
+/// instruction.
+/// \return
+/// A "Scope" JSON object with that follows the formal JSON
+/// definition outlined by Microsoft.
+llvm::json::Value CreateInstructionBreakpoint(lldb::SBBreakpoint &bp);
+
/// Create a "Thread" object for a LLDB thread object.
///
/// This function will fill in the following keys in the returned
diff --git a/lldb/tools/lldb-dap/lldb-dap.cpp b/lldb/tools/lldb-dap/lldb-dap.cpp
index f50a6c17310739..7c0799eaadfb6d 100644
--- a/lldb/tools/lldb-dap/lldb-dap.cpp
+++ b/lldb/tools/lldb-dap/lldb-dap.cpp
@@ -1718,6 +1718,8 @@ void request_initialize(const llvm::json::Object &request) {
body.try_emplace("supportsLogPoints", true);
// The debug adapter supports data watchpoints.
body.try_emplace("supportsDataBreakpoints", true);
+ // The debug adapter support for instruction breakpoint.
+ body.try_emplace("supportsInstructionBreakpoints", true);
// Put in non-DAP specification lldb specific information.
llvm::json::Object lldb_json;
@@ -4046,6 +4048,181 @@ void request__testGetTargetBreakpoints(const llvm::json::Object &request) {
g_dap.SendJSON(llvm::json::Value(std::move(response)));
}
+// SetInstructionBreakpoints request; value of command field is
+// 'setInstructionBreakpoints'. Replaces all existing instruction breakpoints.
+// Typically, instruction breakpoints would be set from a disassembly window. To
+// clear all instruction breakpoints, specify an empty array. When an
+// instruction breakpoint is hit, a `stopped` event (with reason `instruction
+// breakpoint`) is generated. Clients should only call this request if the
+// corresponding capability `supportsInstructionBreakpoints` is true. interface
+// SetInstructionBreakpointsRequest extends Request {
+// command: 'setInstructionBreakpoints';
+// arguments: SetInstructionBreakpointsArguments;
+// }
+// interface SetInstructionBreakpointsArguments {
+// The instruction references of the breakpoints
+// breakpoints: InstructionBreakpoint[];
+// }
+// "InstructionBreakpoint ": {
+// "type": "object",
+// "description": "Properties of a breakpoint passed to the
+// setInstructionBreakpoints request.", "properties": {
+// "instructionReference": {
+// "type": "string",
+// "description": "The instruction reference of the breakpoint.
+// This should be a memory or instruction pointer reference from an
+// EvaluateResponse, Variable, StackFrame, GotoTarget, or Breakpoint."
+// },
+// "offset": {
+// "type": "number",
+// "description": "The offset from the instruction reference.
+// This can be negative."
+// },
+// "condition": {
+// "type": "string",
+// "description": "An expression for conditional breakpoints.
+// It is only honored by a debug adapter if the corresponding capability
+// supportsConditionalBreakpoints` is true."
+// },
+// "hitCondition": {
+// "type": "string",
+// "description": "An expression that controls how many hits of the
+// breakpoint are ignored. The debug adapter is expected to interpret the
+// expression as needed. The attribute is only honored by a debug adapter
+// if the corresponding capability `supportsHitConditionalBreakpoints` is
+// true."
+// },
+// }
+// interface SetInstructionBreakpointsResponse extends Response {
+// body: {
+// Information about the breakpoints. The array elements correspond to the
+// elements of the `breakpoints` array.
+// breakpoints: Breakpoint[];
+// };
+// }
+// Response to `setInstructionBreakpoints` request.
+// "Breakpoint": {
+// "type": "object",
+// "description": "Response to `setInstructionBreakpoints` request.",
+// "properties": {
+// "id": {
+// "type": "number",
+// "description": "The identifier for the breakpoint. It is needed if
+// breakpoint events are used to update or remove breakpoints."
+// },
+// "verified": {
+// "type": "boolean",
+// "description": "If true, the breakpoint could be set (but not
+// necessarily at the desired location."
+// },
+// "message": {
+// "type": "string",
+// "description": "A message about the state of the breakpoint.
+// This is shown to the user and can be used to explain why a breakpoint
+// could not be verified."
+// },
+// "source": {
+// "type": "Source",
+// "description": "The source where the breakpoint is located."
+// },
+// "line": {
+// "type": "number",
+// "description": "The start line of the actual range covered by the
+// breakpoint."
+// },
+// "column": {
+// "type": "number",
+// "description": "The start column of the actual range covered by the
+// breakpoint."
+// },
+// "endLine": {
+// "type": "number",
+// "description": "The end line of the actual range covered by the
+// breakpoint."
+// },
+// "endColumn": {
+// "type": "number",
+// "description": "The end column of the actual range covered by the
+// breakpoint. If no end line is given, then the end column is assumed to
+// be in the start line."
+// },
+// "instructionReference": {
+// "type": "string",
+// "description": "A memory reference to where the breakpoint is set."
+// },
+// "offset": {
+// "type": "number",
+// "description": "The offset from the instruction reference.
+// This can be negative."
+// },
+// },
+// "required": [ "id", "verified", "line"]
+// }
+void request_setInstructionBreakpoints(const llvm::json::Object &request) {
+ llvm::json::Object response;
+ llvm::json::Array response_breakpoints;
+ llvm::json::Object b...
[truncated]
|
Few changes were missed in lldb/tools/lldb-dap/DAP.h, so added in this version.
There was a problem hiding this comment.
This LGTM, but I'd like @clayborg to give a second look.
Thanks for this fancy feature, I've been wanting it for a while
Resolved review comments.
Added stop reason for instruction breakpoint.
Added few comments
ZequanWu
reviewed
Aug 22, 2024
Resolved follwoing review comments : 1. Removed usage of removed_ibp, removed deleted instruction breakpoints deirectly from g_dap.instruction_breakpoints.erase(prev_ibp.first) 2. Reused CreateJsonObject function in CreateInstructionBreakpoint. 3. Updated test cases with stop reason.
Resolved code format issues.
|
Hi Everyone, |
walter-erquinigo
approved these changes
Aug 26, 2024
Resolved review comments.
Resolved review comments.
Resolved review comments.
|
LLVM Buildbot has detected a new failure on builder Full details are available at: https://lab.llvm.org/buildbot/#/builders/141/builds/1866 Here is the relevant piece of the build log for the reference |
|
The rest of the lldb-dap tests are disabled on Windows, this one should be too. One of these days I'll figure out what's wrong with them all. |
Thanks, |
5c4lar
pushed a commit
to 5c4lar/llvm-project
that referenced
this pull request
Aug 29, 2024
…#105278) Added support for "supportsInstructionBreakpoints" capability and now it this command is triggered when we set instruction breakpoint. We need this support as part of enabling disassembly view debugging. Following features should work as part of this feature enablement: 1. Settings breakpoints in disassembly view: Unsetting the breakpoint is not happening from the disassembly view. Currently we need to unset breakpoint manually from the breakpoint List. Multiple breakpoints are getting set for the same $ 2. Step over, step into, continue in the disassembly view The format for DisassembleRequest and DisassembleResponse at https://raw.githubusercontent.com/microsoft/vscode/master/src/vs/workbench/contrib/debug/common/debugProtocol.d.ts . Ref Images: Set instruction breakpoint in disassembly view:  After issuing continue:  --------- Co-authored-by: Santhosh Kumar Ellendula <sellendu@hu-sellendu-hyd.qualcomm.com> Co-authored-by: Santhosh Kumar Ellendula <sellendu@hu-sellendu-lv.qualcomm.com>
dmpolukhin
pushed a commit
to dmpolukhin/llvm-project
that referenced
this pull request
Sep 2, 2024
…#105278) Added support for "supportsInstructionBreakpoints" capability and now it this command is triggered when we set instruction breakpoint. We need this support as part of enabling disassembly view debugging. Following features should work as part of this feature enablement: 1. Settings breakpoints in disassembly view: Unsetting the breakpoint is not happening from the disassembly view. Currently we need to unset breakpoint manually from the breakpoint List. Multiple breakpoints are getting set for the same $ 2. Step over, step into, continue in the disassembly view The format for DisassembleRequest and DisassembleResponse at https://raw.githubusercontent.com/microsoft/vscode/master/src/vs/workbench/contrib/debug/common/debugProtocol.d.ts . Ref Images: Set instruction breakpoint in disassembly view:  After issuing continue:  --------- Co-authored-by: Santhosh Kumar Ellendula <sellendu@hu-sellendu-hyd.qualcomm.com> Co-authored-by: Santhosh Kumar Ellendula <sellendu@hu-sellendu-lv.qualcomm.com>
JDevlieghere
pushed a commit
to swiftlang/llvm-project
that referenced
this pull request
Oct 16, 2024
…#105278) Added support for "supportsInstructionBreakpoints" capability and now it this command is triggered when we set instruction breakpoint. We need this support as part of enabling disassembly view debugging. Following features should work as part of this feature enablement: 1. Settings breakpoints in disassembly view: Unsetting the breakpoint is not happening from the disassembly view. Currently we need to unset breakpoint manually from the breakpoint List. Multiple breakpoints are getting set for the same $ 2. Step over, step into, continue in the disassembly view The format for DisassembleRequest and DisassembleResponse at https://raw.githubusercontent.com/microsoft/vscode/master/src/vs/workbench/contrib/debug/common/debugProtocol.d.ts . Ref Images: Set instruction breakpoint in disassembly view:  After issuing continue:  --------- Co-authored-by: Santhosh Kumar Ellendula <sellendu@hu-sellendu-hyd.qualcomm.com> Co-authored-by: Santhosh Kumar Ellendula <sellendu@hu-sellendu-lv.qualcomm.com> (cherry picked from commit 89c27d6)
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
Add this suggestion to a batch that can be applied as a single commit.
This suggestion is invalid because no changes were made to the code.
Suggestions cannot be applied while the pull request is closed.
Suggestions cannot be applied while viewing a subset of changes.
Only one suggestion per line can be applied in a batch.
Add this suggestion to a batch that can be applied as a single commit.
Applying suggestions on deleted lines is not supported.
You must change the existing code in this line in order to create a valid suggestion.
Outdated suggestions cannot be applied.
This suggestion has been applied or marked resolved.
Suggestions cannot be applied from pending reviews.
Suggestions cannot be applied on multi-line comments.
Suggestions cannot be applied while the pull request is queued to merge.
Suggestion cannot be applied right now. Please check back later.
Added support for "supportsInstructionBreakpoints" capability and now it this command is triggered when we set instruction breakpoint.
We need this support as part of enabling disassembly view debugging. Following features should work as part of this feature enablement:
Settings breakpoints in disassembly view: Unsetting the breakpoint is not happening from the disassembly view. Currently we need to unset breakpoint manually from the breakpoint List. Multiple breakpoints are getting set for the same $
Step over, step into, continue in the disassembly view
The format for DisassembleRequest and DisassembleResponse at https://raw.githubusercontent.com/microsoft/vscode/master/src/vs/workbench/contrib/debug/common/debugProtocol.d.ts .
Ref Images:
Set instruction breakpoint in disassembly view:
After issuing continue:
